AV Connection

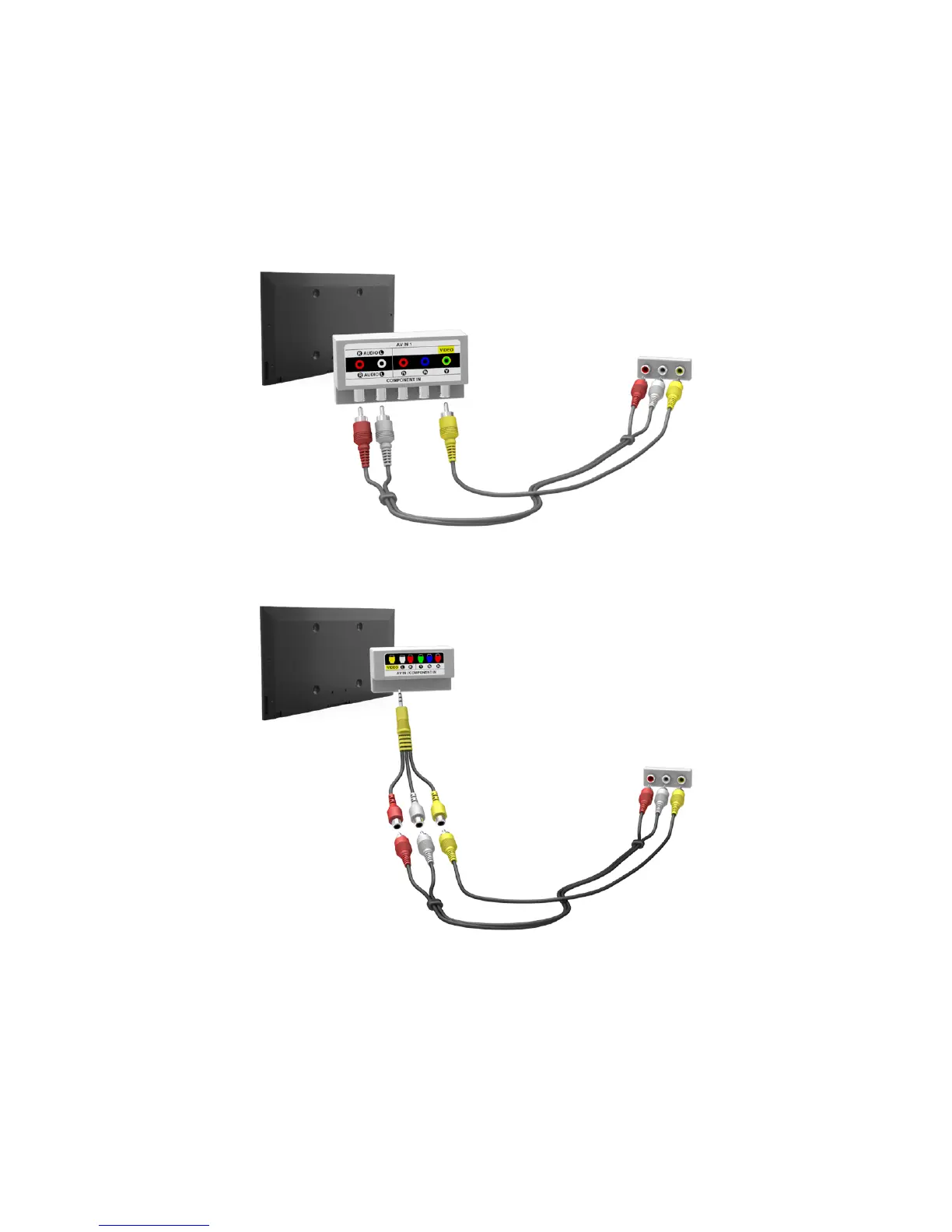

Refer to the diagram and connect the AV cable to the TV's external input connectors and the device's

AV output connectors.

If you are using the TV's external input connectors, connect the video cable to the Y connector. Some

models feature a video connector as well. In this case, connect the cable to the video connector.

LED 7000 series

LED, PDP 8000 series
