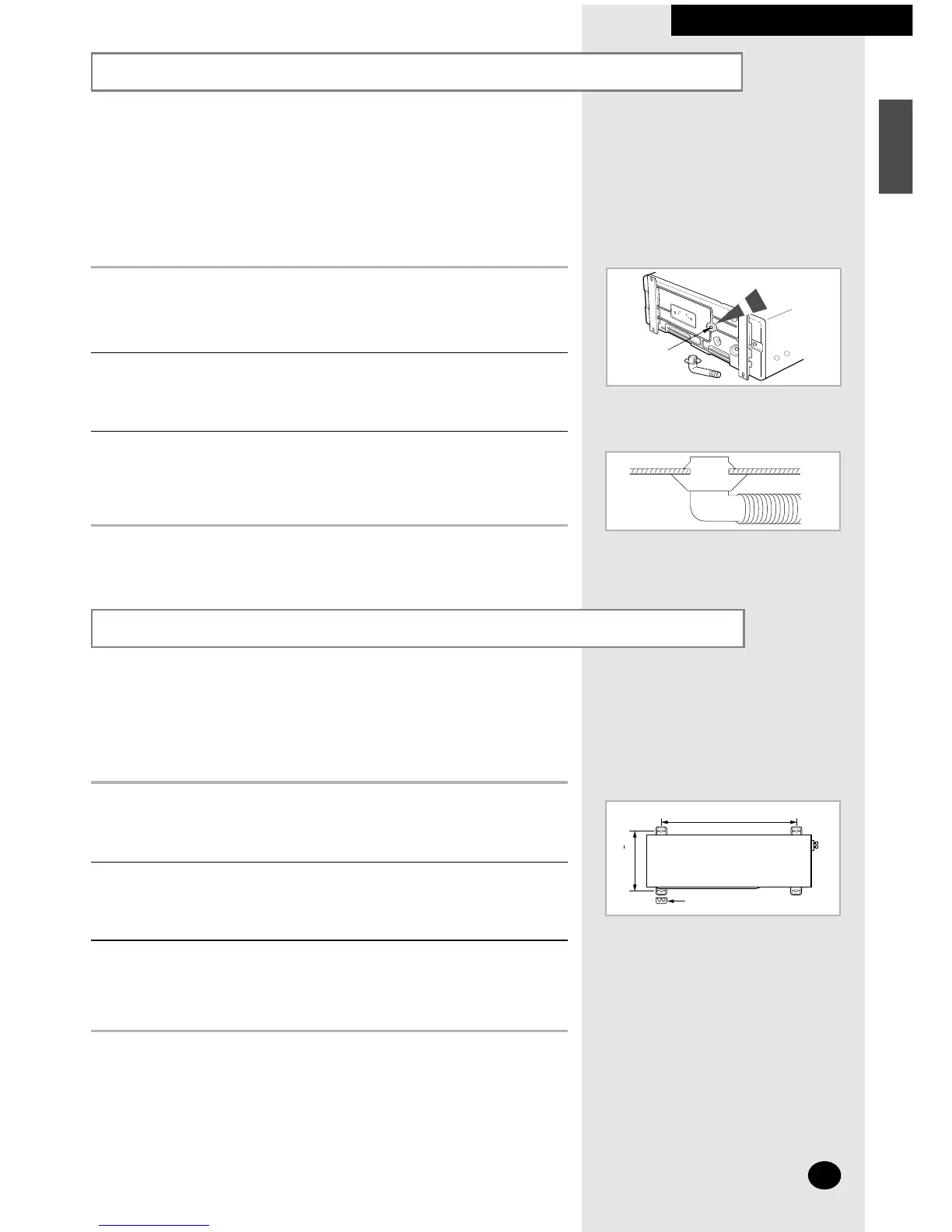

INSTALLING THE OUTDOOR UNIT
Installing and Connecting the Outdoor Unit Drain Hose
Drain hole
Fixing the Unit in Position
The outdoor unit must be installed on a rigid and stable base to avoid any increase
in the noise level and vibration, particularly if the outdoor unit is to be installed close
to a neighbour. If it is to be installed in a location exposed to strong winds or at a
height, the unit must be fixed to an appropriate support (wall or ground).
1 Position the outdoor unit so that the air flow is directed towards the
outside, as indicated by the arrows on the top of the unit.
2 Attach the outdoor unit to the appropriate support using anchor bolts.
3 If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit, so that the fan can operate correctly.
❇ Certainly fix up its rubber leg, in order to prevent its vibration and noise.
When using the air conditioner in the heating mode, ice may
accumulate. During de-icing, the condensed water must be drained
off safely. Consequently, you must install a drain hose on the outdoor
unit, following the instructions below.
1 Insert the drain plug into the drain hole on the underside of the outdoor
unit.
2 Connect the drain hose to the drain plug.
3 Ensure that the drained water runs off correctly and safely.
660(26)
Rubber leg
340( )
Unit : mm(inch)
