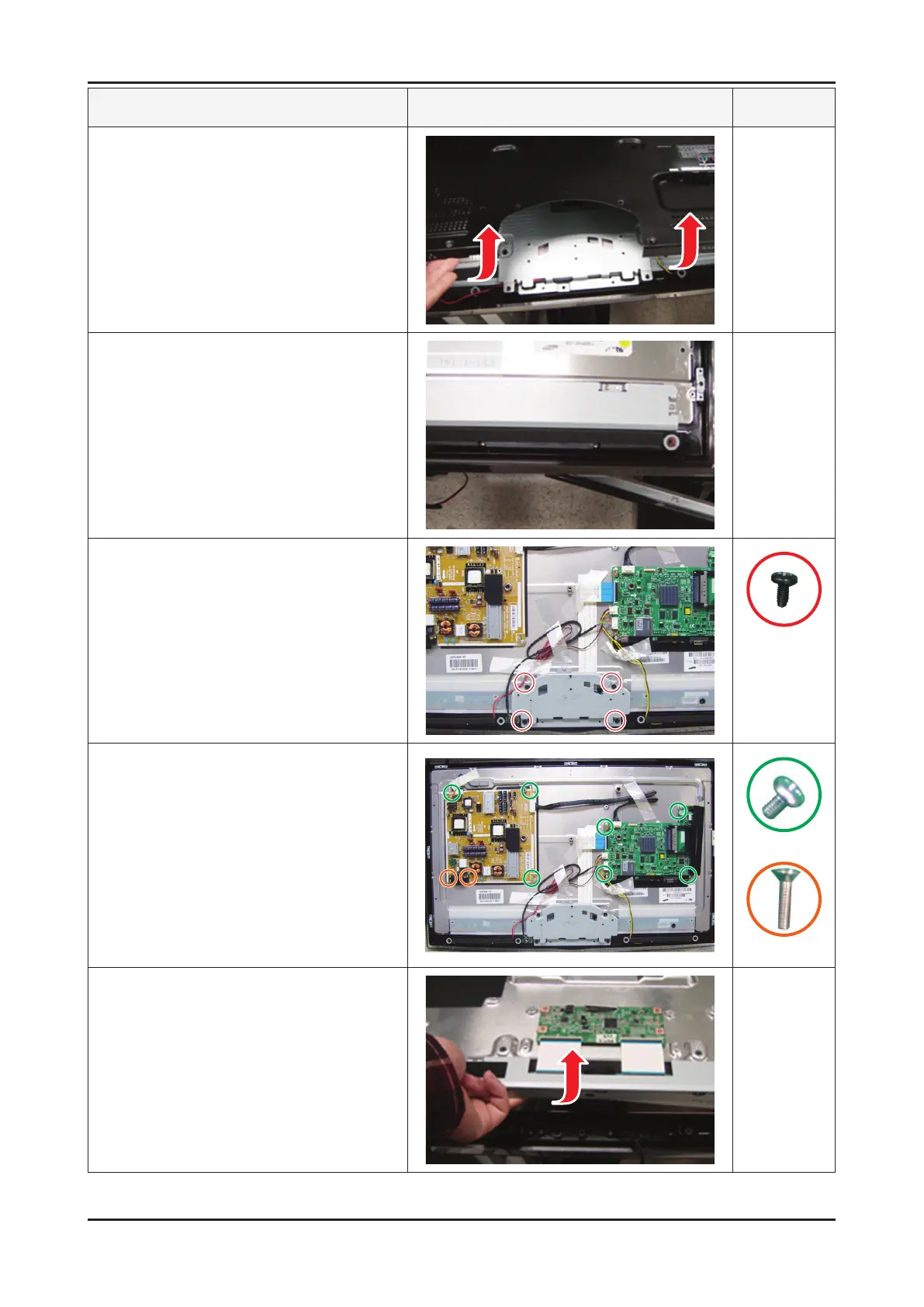

3. Disassembly and Reassembly
Description Picture Description Screws
3. Lift up the rear-cover.
4. Remove the left and right speaker.
5. Lift up the stand link.
Remove the 4 screws of bracket stand link.
6003-000133
6. Remove the 4 screws of main board and
5 screws of IP board.
6001-002283
6001-000321
7. Lift up the panel.
Reassembly procedures are in the reverse order of disassembly procedures. ※
