Samsung UE19C4000PW - Connector Functions; Cables

6-5
6. Wiring Diagram
6-3. Connector Functions
Connector Functions
CN210  IP CNM802
Supply main power and dimming signal from IP board to Main Board.
CN1403_22/CN1402_26  T-CON
The LVDS signal transfered from Main Board to Panel.

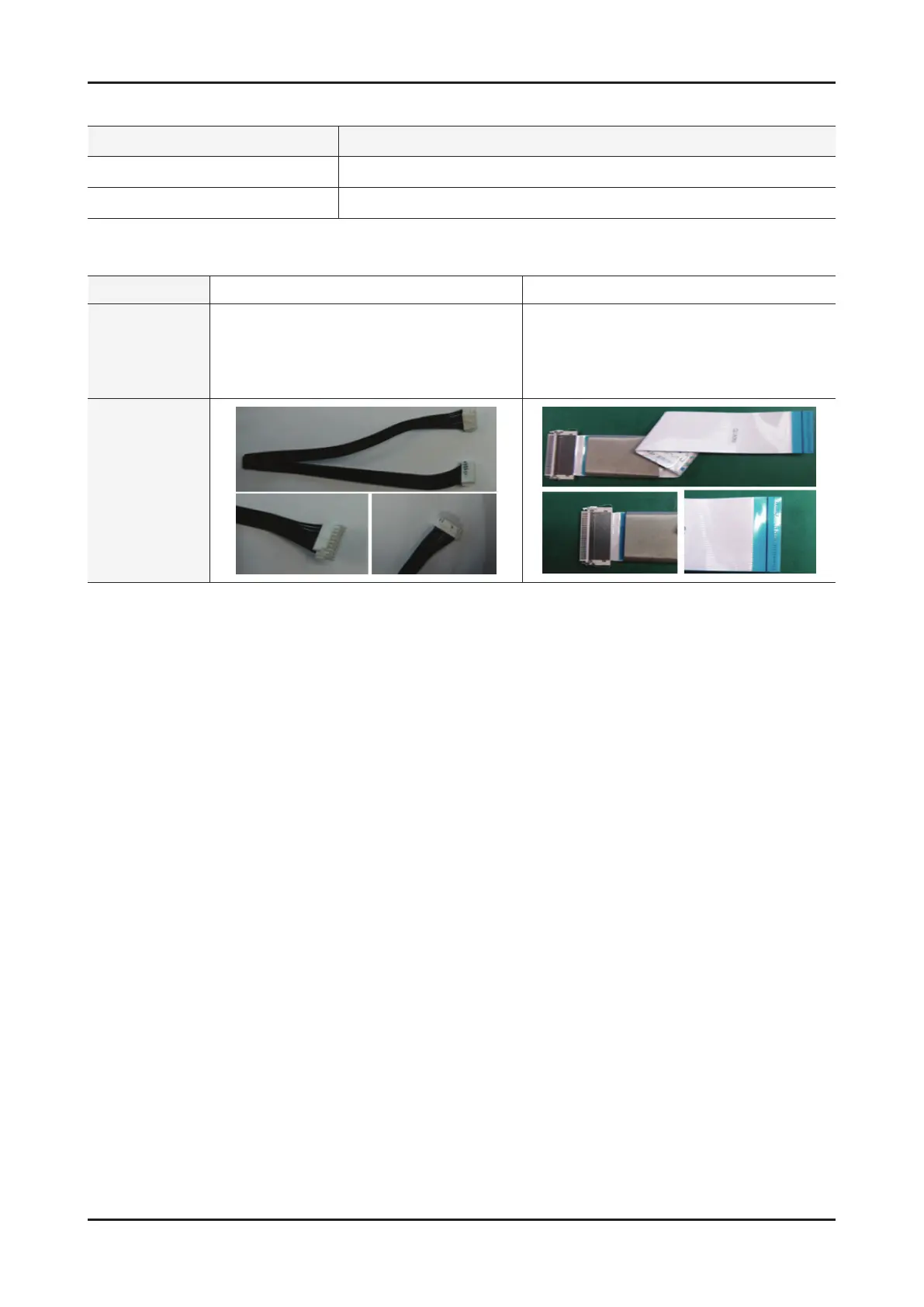

6-4. Cables
Use LEAD (Main-IP 18P) LVDS (Main - TCON)
Code
26" C4000 : BN39-01267A (SX1)
22" C4000 : BN39-01267L (SX1)
19" C4000 : BN39-01267B (SX1)
19"/26": BN39-01267A (X4)
22": BN39-01267L (X4)
26" C4000 : BN96-12469L
22" C4000 : BN96-13722A
19" C4000 : BN96-12447X
