3. Disassembly and Reassembly
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the UE19/22/26C4000PW LED TV.
WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the LED TV from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

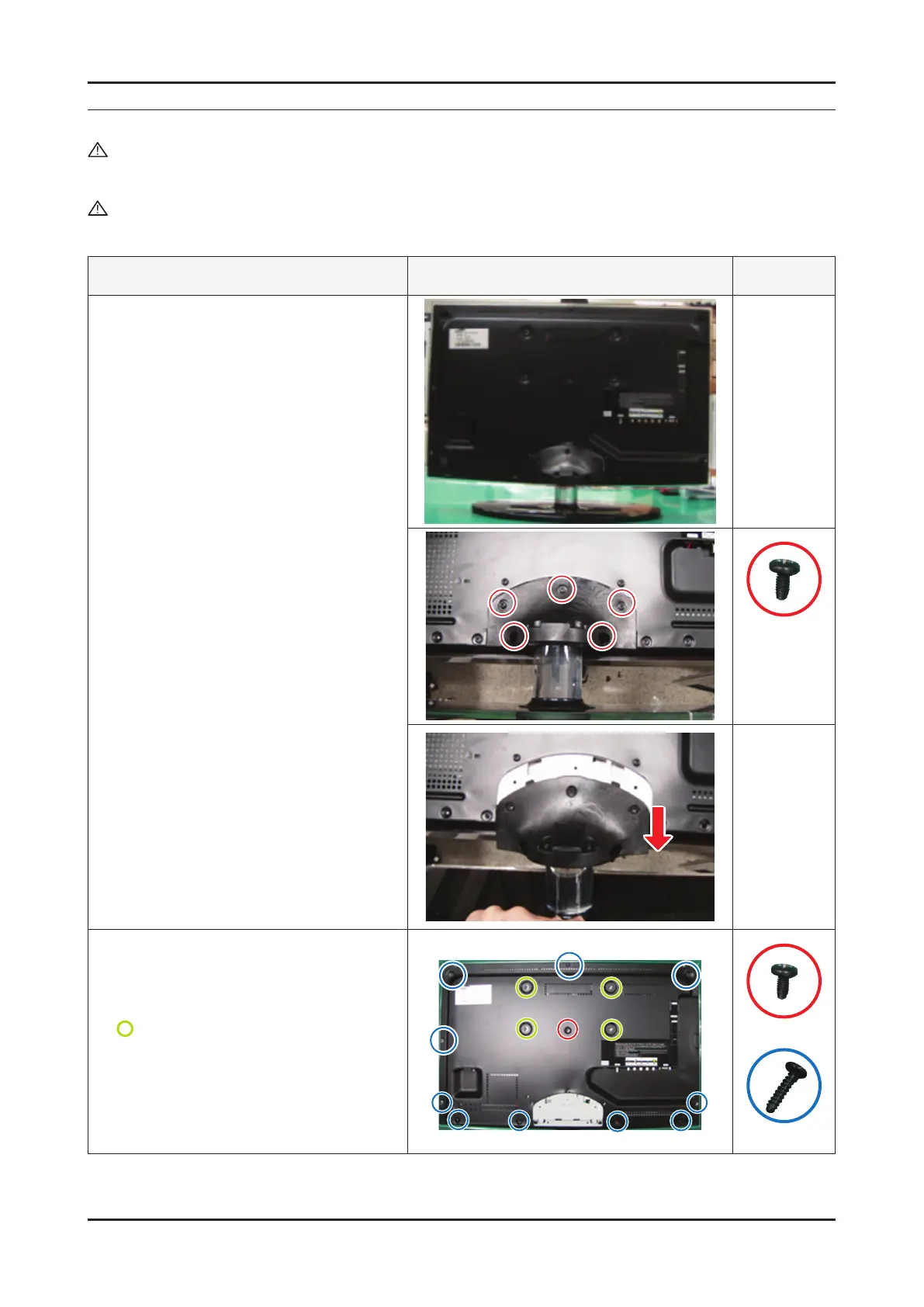

Description Picture Description Screws
1. To remove the stand
Place monitor face down on cushioned table.
Remove 5 (19"/22" 3 screws) screws from the
stand.
Remove stand.
For 19"/22"
You can take the rear cover off without
removing stand.
6003-000133
2. 26" C4000 :
Remove the 11 screws of rear-cover.
19"/22" C4000 :
Remove the 10 screws of rear-cover.
: You can take the rear cover off without
removing these screws.
6003-000133
6003-001003
