Samsung UE22C4010PW User Manual

7
01 Getting Started
English

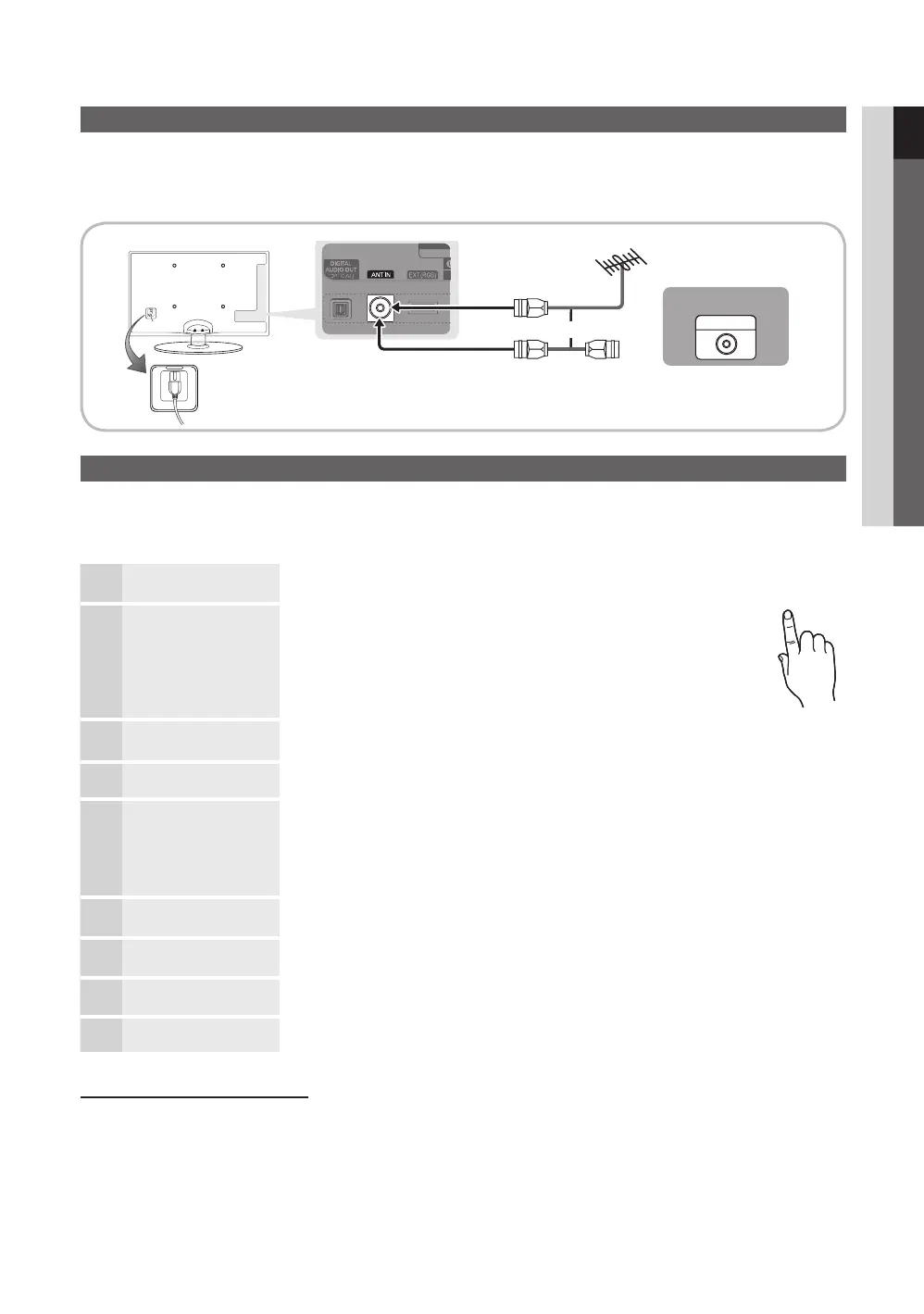

Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
✎ Preset: Connecting the mains and antenna.
✎ If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly.
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER P button. Plug & Play is available only when the Input source is set to TV.
✎ To return to the previous step, press the Red button.
1
Selecting a language
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the desired OSD (On Screen Display) language.
P
POWER
2
Selecting Store Demo
or Home Use
Press the ◄ or ► button, then press the ENTER
E button.
y Select the Home Use mode. Store Demo Mode is for retail
environments.
y Return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume OSD, press and hold MENU for 5 sec.
3
Selecting a country
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the appropriate country. If the desired country does not exist on the menu, select Others.
4
Selecting an antenna
Press the ▲ or ▼ button, then press the ENTER
E button. Select Air or Cable.
5
Selecting a channel
Press the ▲ or ▼ button, then press the ENTER
E button.
Select the channel source to memorise. When setting the antenna source to Cable, a step
appears allowing you to assign numerical values (channel frequencies) to the channels. For
more information, refer to Channel → Auto Store (p.13).
Press the ENTER
E button at any time to interrupt the memorization process.
6
Setting the
Clock Mode
Set the Clock Mode automatically or manually.
Press the ▲ or ▼ button to select Auto, then press the ENTER
E button.
7
Time Zone
Press the ▲ or ▼ button to select the your time zone, then press the ENTER
E button
(depending on the country).
8
Viewing the HD
Connection Guide.
The connection method for the best HD screen quality is displayed.
9
Enjoy your TV.
Press the ENTER
E button.
If You Want to Reset This Feature...
Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to
change the PIN number, use the Change PIN function.
ANT OUT
Power Input
VHF/UHF Antenna
or
Cable
1_BN68-02655E-00Eng.indd 7 2010-03-04 오전 2:53:43

Samsung UE22C4010PW Specifications

General

Display diagonal	22 \
Display resolution	1366 x 768 pixels
Native refresh rate	60 Hz
Product color	White
Audio system	Dolby Digital Plus, Dolby Pulse
RMS rated power	5 W
Built-in subwoofer	No
Number of speakers	2
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
Consumer Electronics Control (CEC)	Anynet+
Power requirements	220 - 240V, 50 / 60 Hz
Package weight	5700 g
Power consumption (standby)	0.3 W
Power consumption (typical)	50 W

Weight and Dimensions

Depth (with stand)	189.5 mm
Height (with stand)	411.1 mm
Weight (with stand)	4100 g
Depth (without stand)	29.9 mm
Width (without stand)	545.2 mm
Height (without stand)	359 mm
Weight (without stand)	3700 g
