Samsung US12ABMCF - Outdoor Unit Disassembly (Models US07 A5(6)MA;US09 A5(6)MAF)

6

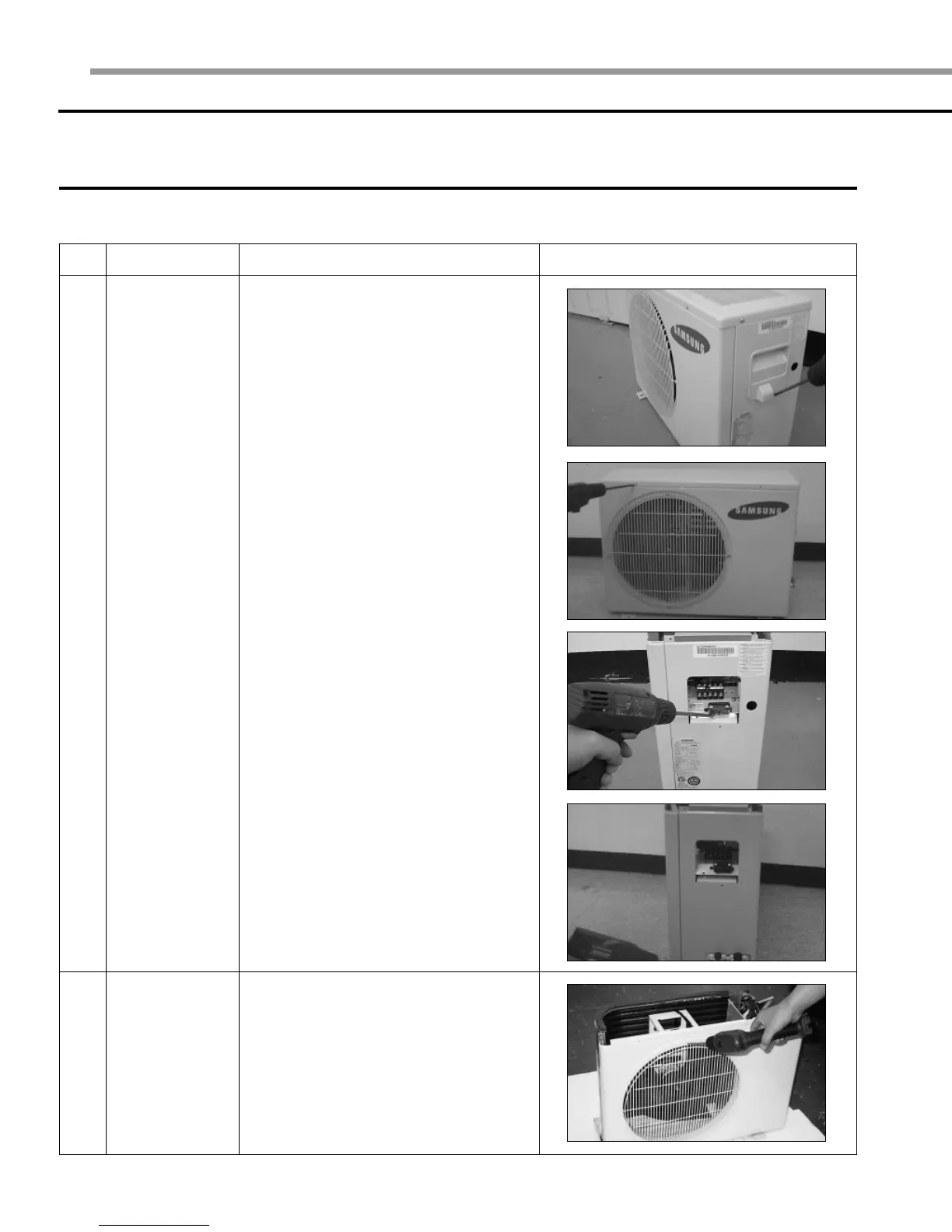

2 Outdoor unit
No. Part Procedure Remark
Common Work
Fan Motor
1
2
1) Loosen screws and separate the cover
E-part.
2) Separate the connection wire from the
terminal block.
3) Loosen five screws and separate the
upper cabinet.
4) Loosen the screw of the control box.
5) Loosen nine screws and separate the
side cabinet.
1) Loosen four screws and separate
Guard Fan from the front cabinet.
■ US07A5(6)MA/US09A5(6)MAF
Disassemble and reassemble (cont’d)
ΙΙ
