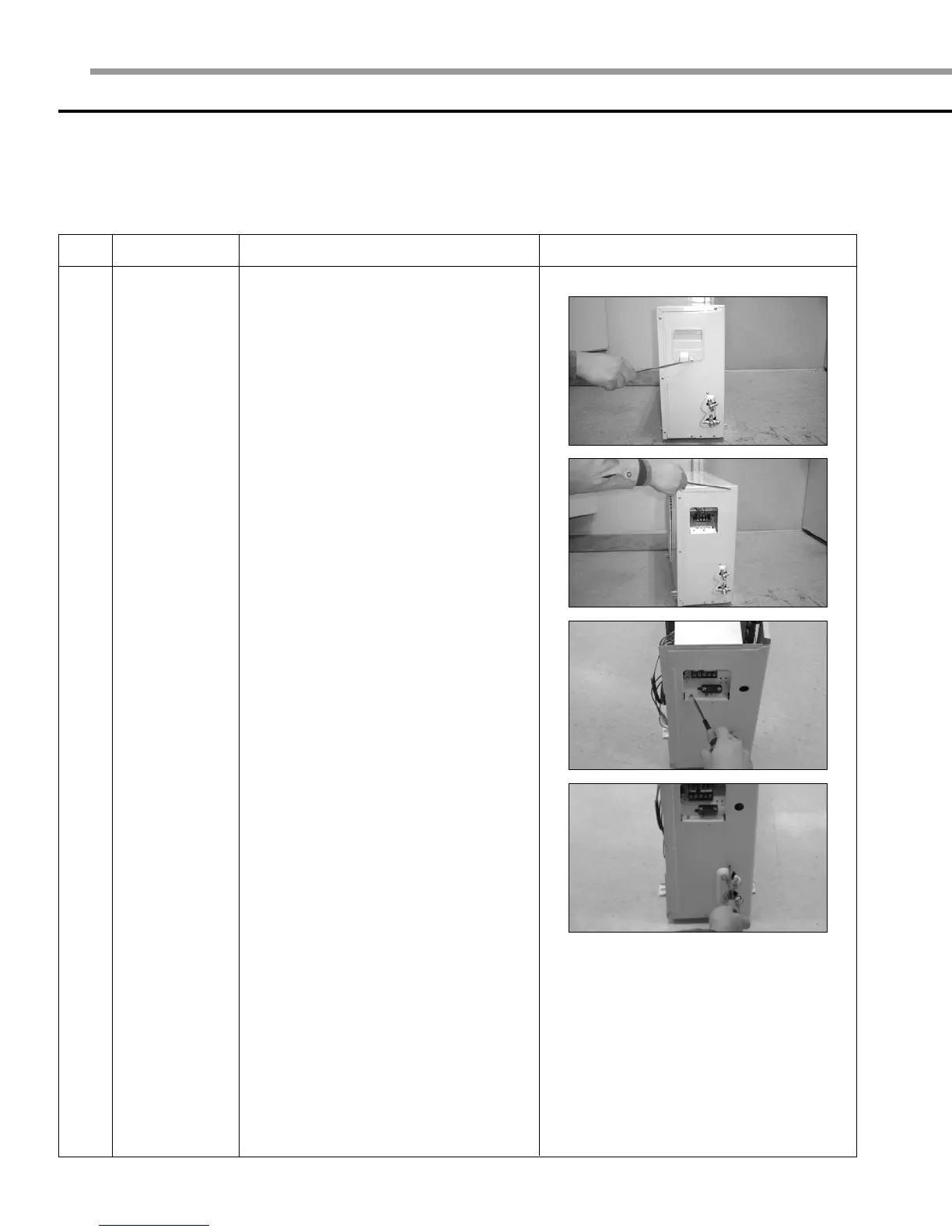

Disassemble and reassemble(cont’d)
ΙΙ
■ US12AA(B)MCF
No. Part Procedure Remark
Common Work
1) Loosen a screw and separate the cover
E-part.
2) Separate the connection wire from the
terminal block.
3) Loosen thirteen screws and separate
the front cabinet.
4) Loosen a screw of the control box.
5) Loosen four screws and separate the
side cabinet.
1
