SAMSUNG Video Wall Kit Setup Guide 3. Fixing

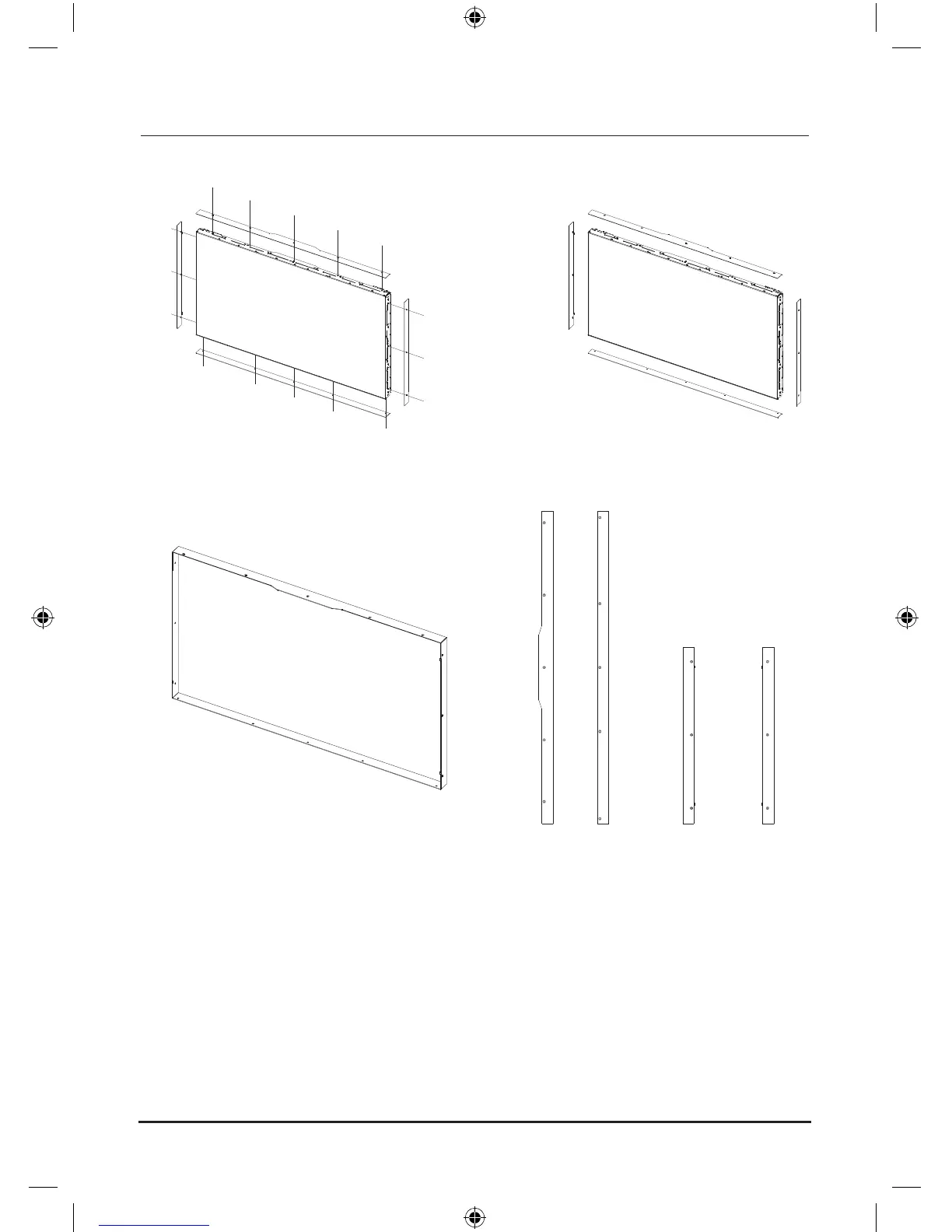

Where and How to Assemble the BRACKET-PANEL
* Fasten the 16 points using the FH, M4 and L10 screws.
ASSY COVER P-TOP
BRACKET PANEL-TOP BRACKET PANEL-BOTTOM BRACKET PANEL-L BRACKET PANEL-R
1. CODE : UD55A (BN96-20157A) / UD46A (BN96-21073A)
2. This is a material that is included in the separate set of accessories.
3. This is an item to be assembled by the user for maintenance of the product's appearance and quality.
4. The assemby screws and 16 pieces of FH, M4xL10 are provided in the manual and in a PE-bag
respectively.
5. As shown in the attached drawing, it is divided into the top, the bottom, and the left and right sides.
