Samsung VP-D361 User Manual

ENGLISH
6464
Playback
Tape Playback
✤ The Playback function works only in <Player> mode. ➥page 19
Playing back on a TV Monitor
✤ To play back a tape, the television must be PAL compatible. ➥page 97
✤ We recommend that you use the AC Power adapter as the power source
for the Camcorder.

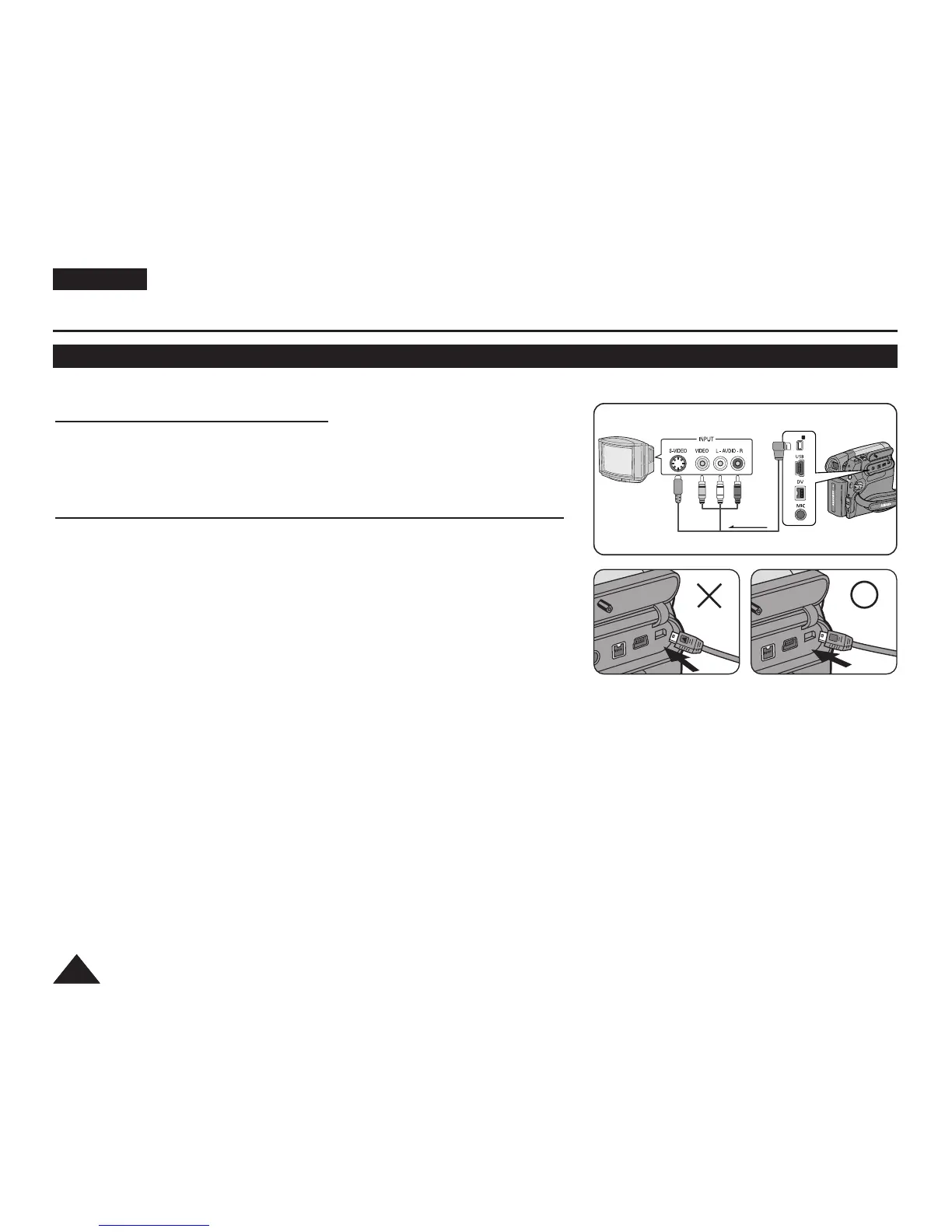

Connecting to a TV which has Audio/Video Input Jacks
1. Connect the Camcorder to your TV with the Multi Cable
■
The yellow jack: Video
■
The white jack: Audio(L)-mono , The red jack: Audio(R)
■
If you connect to a monaural TV, connect the yellow jack (Video) to the
video input of the TV and the white jack (Audio L) to the audio input of the
TV.
2. Set the [Power] switch to [PLAYER].
3. Set the [Mode] switch to [TAPE]. (VP-D363(i)/D364W(i)/D365W(i) only)
4. Turn on the TV and set the TV/VIDEO selector on the TV to Video.
■
Refer to the TV user’s manual.
5. Play the tape. ➥page 63
[ Notes ]
■
You may use an S-Video connector on the cable to obtain better quality pictures if you have a S-Video connector on
your TV.
■
Even if you use an S-Video connector, you need to connect an audio cable.
■
If you connect the cable to the AV/S jack, you will not hear sound from the Camcorder's speakers.
■
If only a mono audio input is available on the TV set, use the audio cable with the white jack (Audio L).
P
L
A
Y
E
R
C
A
M
E
R
A
Q
U
I
C
K
M
E
N
U
AV/ S
Camcorder
Multi Cable
Signal flow
TV
Multi Cable
✤ Connect the Multi AV/S jack with the triangle mark
facing down.

Samsung VP-D361 Specifications

General

Display diagonal	2.5 \
Display resolution	112000 pixels
Filter size	27 mm
Digital zoom	1200 x
Optical zoom	33 x
Image stabilizer	Yes
Focal length range	2.29 - 75.57 mm
Focal length (35mm film equivalent)	35.3 - 1164.9 mm
Sensor type	CCD
Total megapixels	0.8 MP
Optical sensor size	1/6 \
Optical sensor resolution	800000 pixels
Focus	Auto / Manual
Minimum RAM	64 MB
Minimum processor	Pentium III
Light exposure control	Auto, Sports, Portrait, Spotlight, Sand/snow, High Speed Shutter
Power consumption (typical)	4.3 W
Analog signal format system	PAL
Camera shutter speed	1/60 - 1/10000 s
Camcorder tape type	Mini-DV
Photo effects	Art, Emboss, Mirror, Mosaic, Pastel, Sepia
Playback zoom (max)	Yes x
DV port	-

Weight and Dimensions

Depth	104 mm
Width	52 mm
Height	93 mm
Weight	430 g
