Part Figure Description
Disassembling and
Repairing the
COVER-TOP &
PANEL-CONTROL

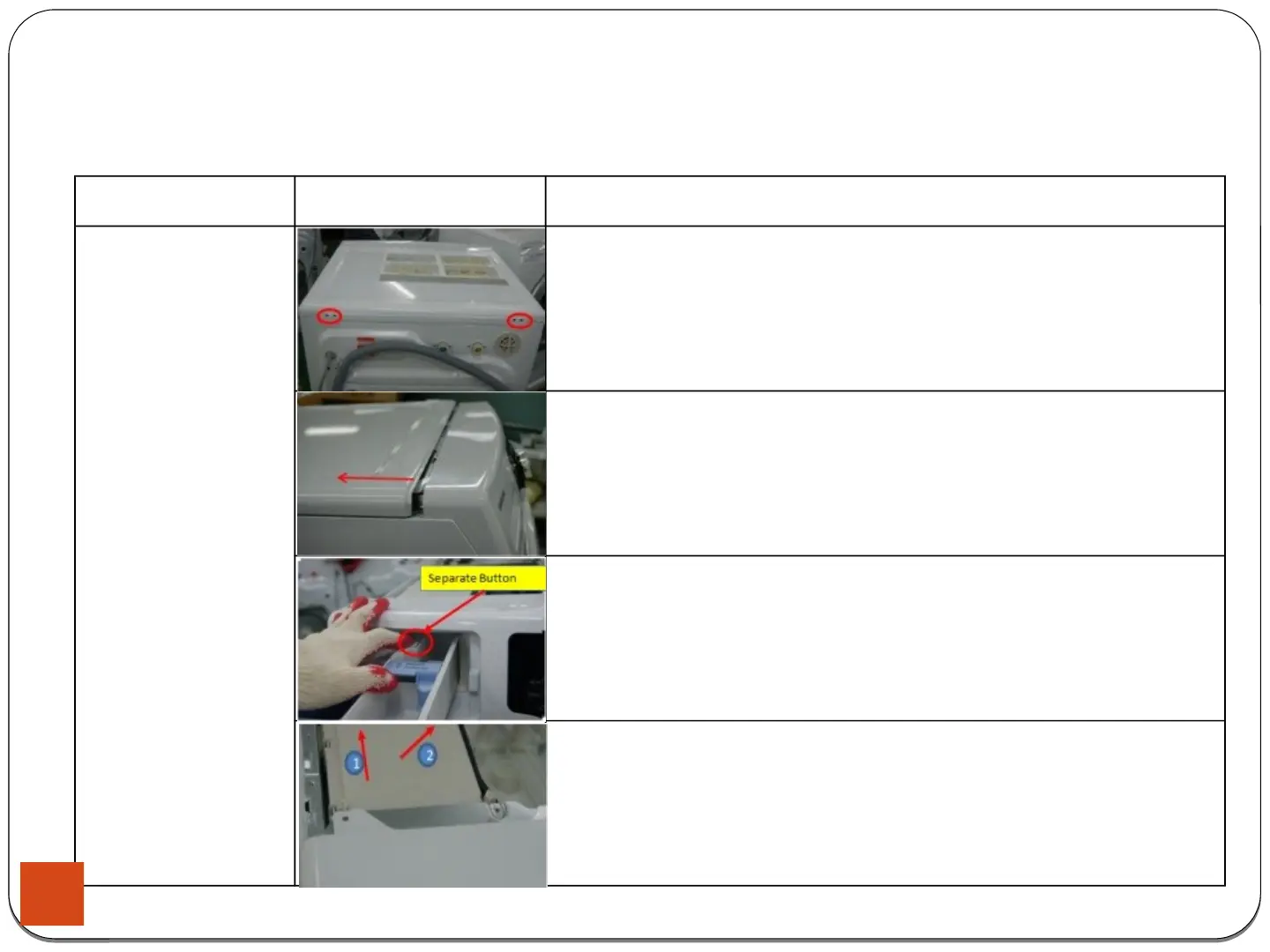

1. Remove the 2 hexagon screws, which are at the back, fixing
the COVER-TOP.
2. Disassemble the COVER-TOP by sliding it backwards and
remove the 4 screws on the PANEL-CONTROL.
3. Press the Separate button to separate the ASSY DRAWER.
4. Disassemble the HOUSING-DRAWER from the PANEL-
CONTROL. (Push back and then push Housing-drawer
upside to separate)
7.Disassembly & Reassembly
