7.Disassembly & Reassembly
Part Figure Description
Disassembling
and Repairing
the MOTOR

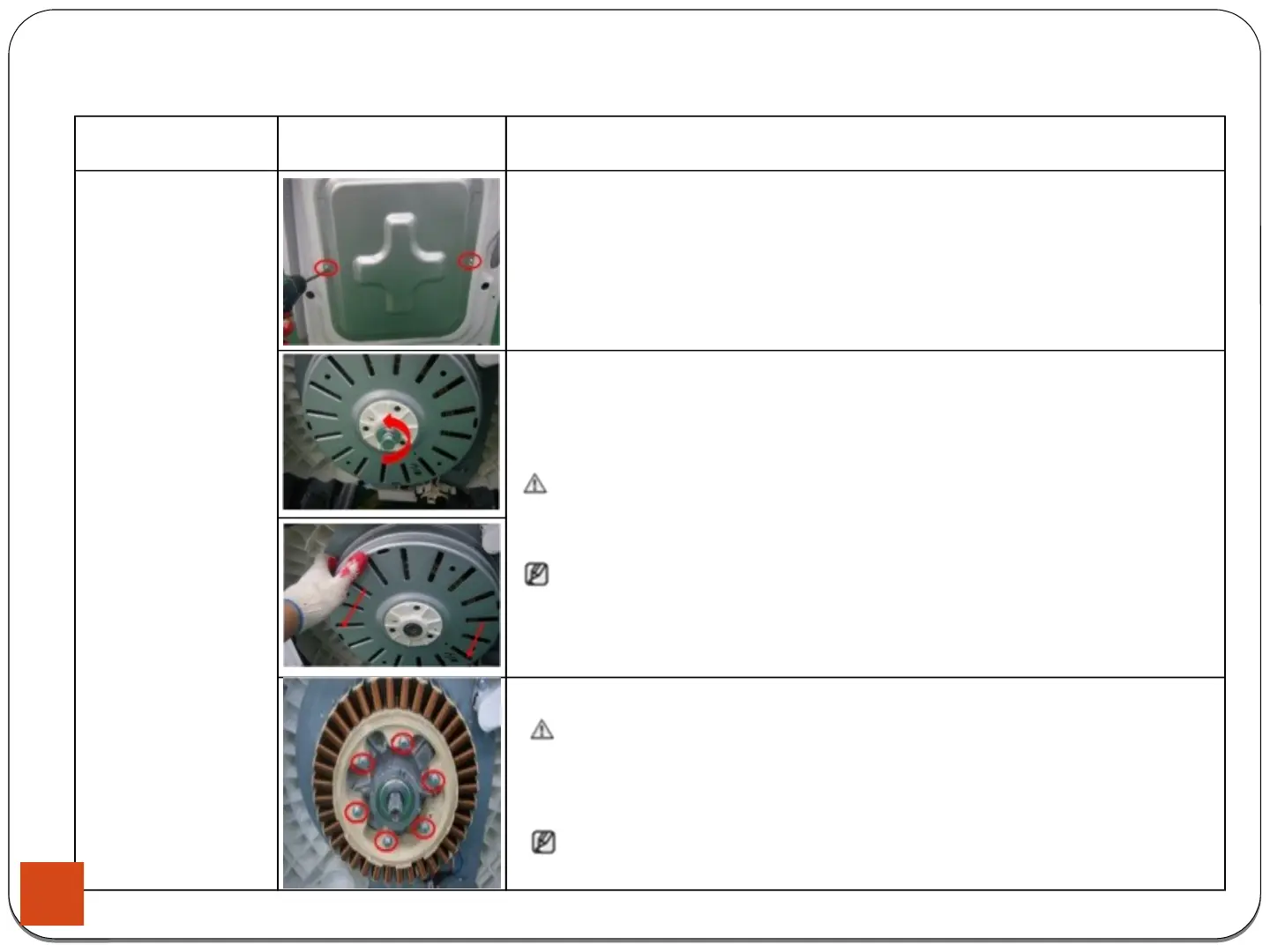

1. Remove the 2 screws holding the Back-Cover at the back of the
washing machine and separate the Back-Cover pushing it
downwards.
(Assemble it by lifting it upwards.)
2. After separating the Back-Cover, remove the M19 nut holding
the Motor.
To remove it, turn it counter-clockwise. Since if you turn it
slowly, the Motor also rotates, torque it quickly and firmly in a
single action.
Do not remove the nut by inserting a screwdriver into the Motor,
as this result in a problem with the motor.
3. Remove the M19 nut and washer and then separate the Rotor.
Since removing the rotor requires a lot of strength due to the
magnetic force of the Rotor and it may come off suddenly, your
hand or arm may be injured by the edge of the Stator or Frame.
Therefore take care when separating it.
You can separate the connector by pressing the navel of the
Housing and pulling it inwards.
