English _13
Drain facility
The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, you must install your washer on a solidly constructed floor. Wood floors
may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting
and soft tile surfaces are contributing factors to vibration which can cause your washer to move
slightly during the spin cycle.
Never install your washer on a platform or weakly supported structure.
Location considerations
Do not install your washer in areas where water may freeze, since your washer will always retain
some water in its water valve, pump, and hose areas. Freezing water can damage the belts,the
pump, hoses and other components.

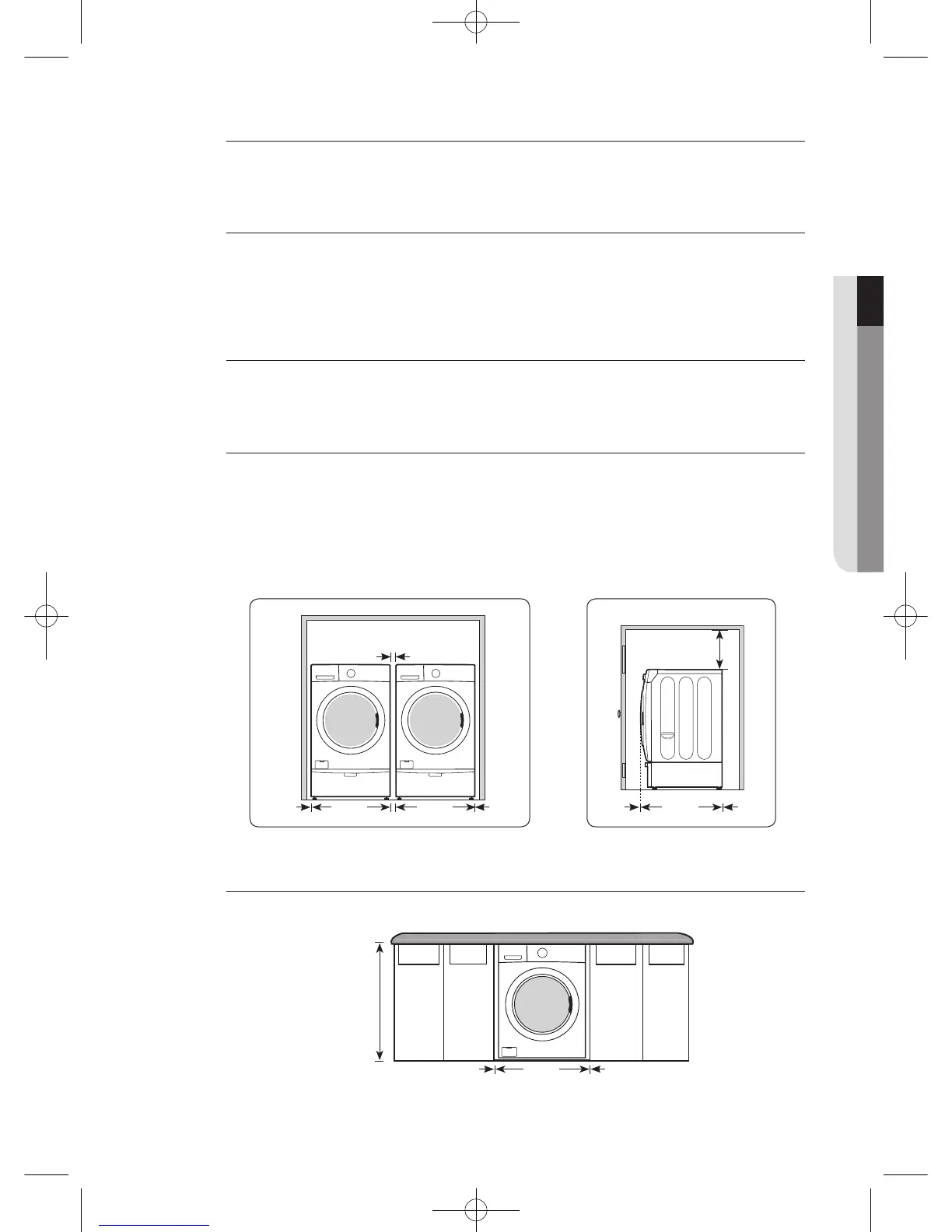

Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5.9 in / 150 mm
Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465
cm²) unobstructed air opening. Your washer alone does not require a specific air opening.
A. Recessed area
B. Side view - closet or confined area
Undercounter installation (washer only)
01 Installing your washer
1 in.
(2.5 cm)
27 in.
(68.6 cm)
1 in.
(2.5 cm)
40 in.
(101.6 cm)
B
2 in.
(5 cm)
33 in.
(83.8 cm)
5.9 in.
(15 cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm)
27 in.
(68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
BETTER_WF42H5200-03397A_EN.indd 13 2014-1-10 11:18:24
