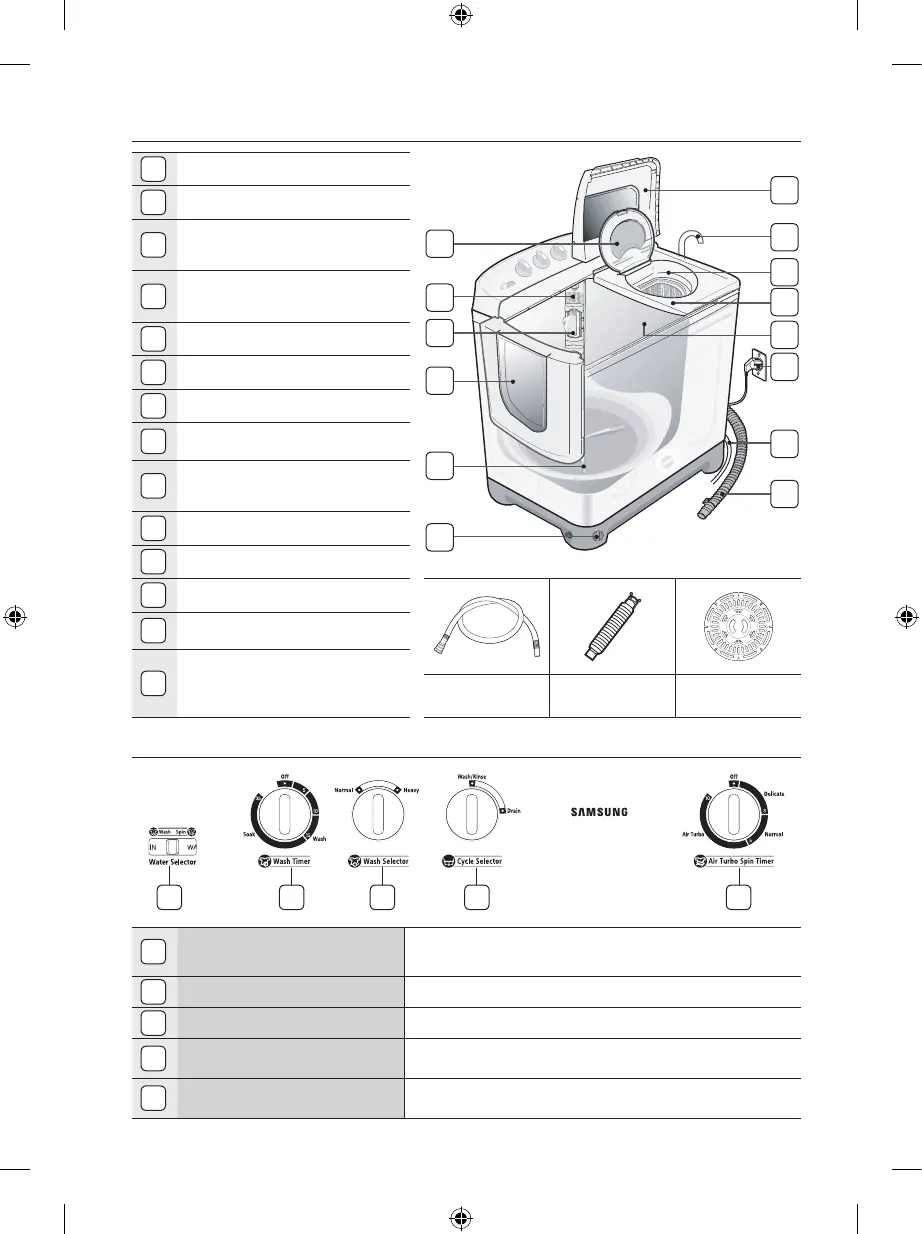

description of parts _5
description of parts
1 Inner lid
2 Over flow filter
3
Lint filter
This is used for gathering the dregs
which are made during washing.
4
Wash tub lid
Be sure to keep the lid closed during
washing and spinning.
5 Pulsator
6 Drain filter (WITH PUMP)
7 Water drain hose (WITHOUT PUMP)
8 Earth wire (OPTION)
9
Power cord
The plug’s shape may not correspond
with this drawing.
10 Wash tub
11 Spin dryer hatch
12 Spin dryer basket
13 Drain hose (WITH PUMP)
14
Spin dryer lid
When you open this lid while the
spin basket is spinning, the spinning
will be stopped by brake system.
control panel
1 WATER SELECTOR
During washing, WATER SELECTOR KNOB should be
selected to wash. During spin rinsing, WATER SELECTOR
KNOB should be selected to spin.
2 WASH TIMER This is used to set the wash time, 1-15 minutes.
3 WASH SELECTOR You can wash laundry effectively by various methods.
4 CYCLE SELECTOR This is used to select the Washing/Rinsing or Draining.
5 AIR TURBO SPIN TIMER This is used to set the spin time,1-10 minutes.
SWT
90
B
1
(
P
)
1
2
3
4
5
6
7
8
9
10
13
12
11
14
1 2 3 4 5
Water supply
hose
Drain Hose Safety cover
