Samsung WT80J8 - Description of Parts; Control Panel

SPIN DRYER LID
When you open this
lid while the spin
basket is spinning,
the spinning will be
stopped by brake
system.
POWER CORD
The plug’s shape may
not correspond with
this drawing.

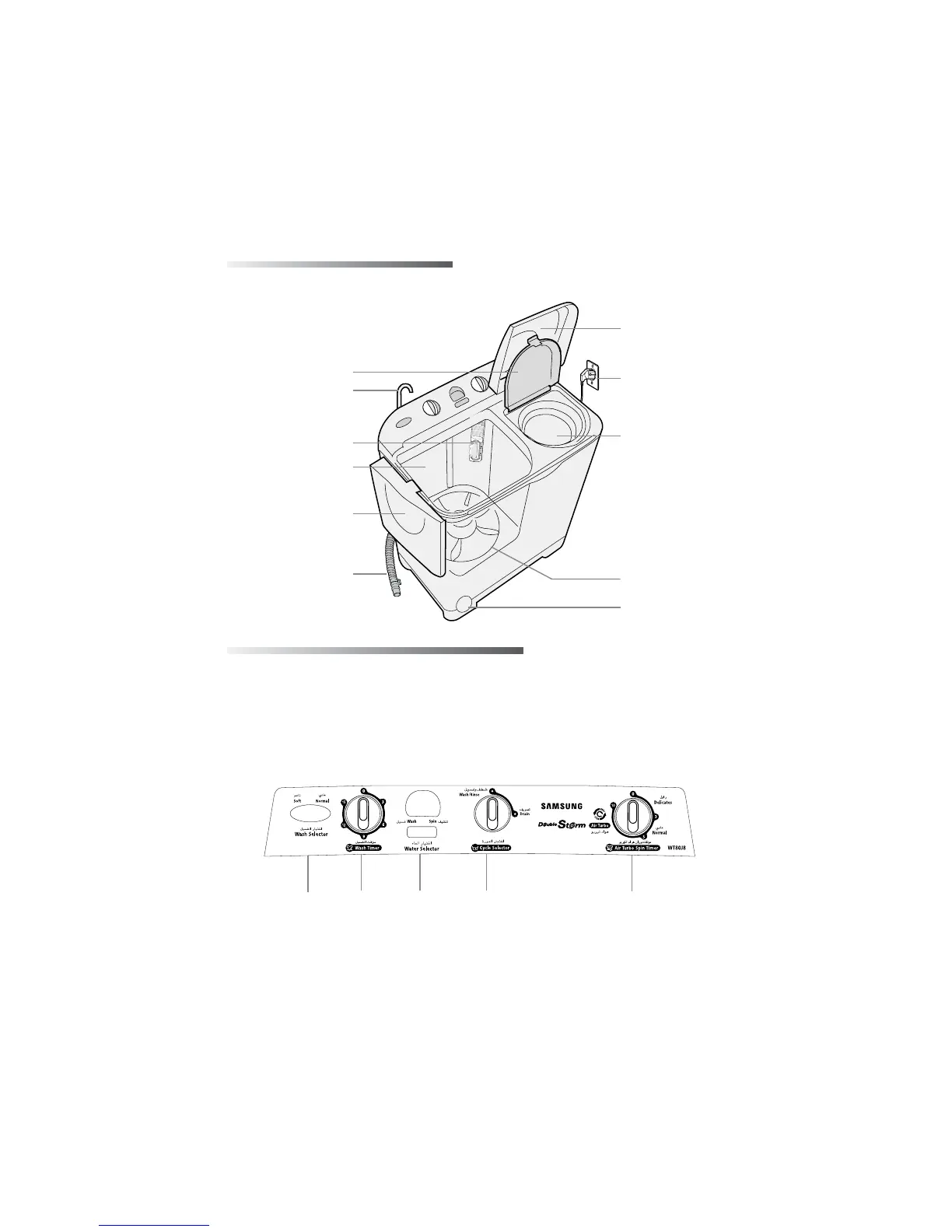

DESCRIPTION OF PARTS
SPIN DRYER BASKET
PULSATOR
DRAIN FILTER
(WITH PUMP
)
INNER LID
WATER DRAIN HOSE
(WITHOUT PUMP
)
WASH TUB LID
Be sure to keep the
lid closed during
washing and
spinning.
WASH TUB
LINT FILTER
DRAIN HOSE
(WITH PUMP)
CONTROL PANEL
1. WATER SELECTOR 4. AIR TURBO SPIN TIMER
This is used to select wash action. This is used to set the spin time,1-10 minutes.
2. WASH TIMER 5. WATER SELECTOR
This is used to set the wash time, 1-15 minutes. During washing,WATER SELECTOR KNOB
should be selected to wash.During spin rinsing,
WATER SELECTOR KNOB should be selected
to spin.
3. CYCLE SELECTOR
This is used to select the Washing/Rinsing
or Draining.
2
1
2
3
4
5
