Samwha DSP DSP-DVR - PIN Assignment

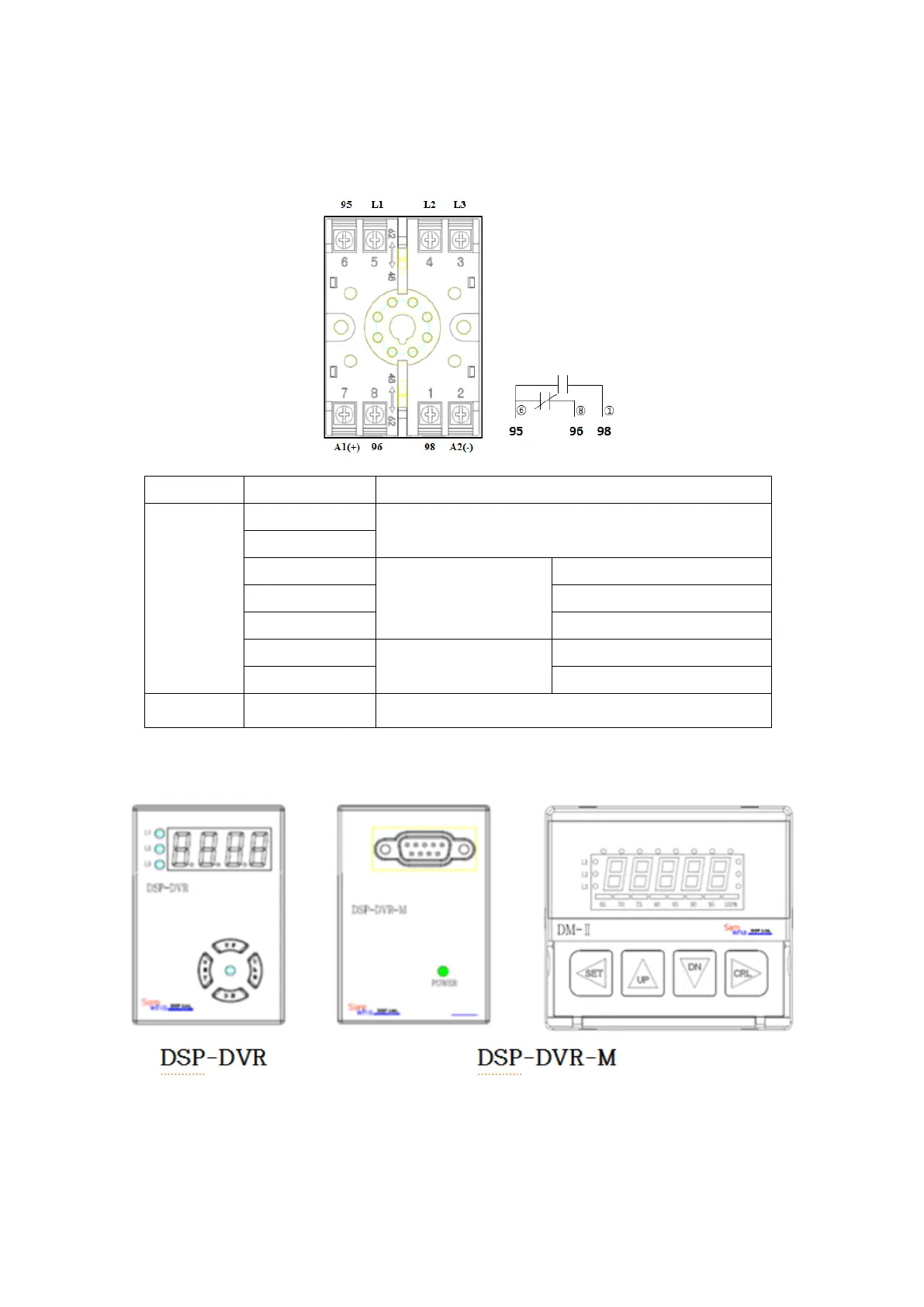

7.PIN Assignment
DIV
Socket Pin
Description
Input
2
* Control Voltage/AC 85V∼AC260V,50/60Hz
(DC90V∼DC370V)
7
5
3 Phase application
Phase L1 voltage
4
Phase L2 voltage
3
Phase L3 voltage
5
1 phase application
Phase L1 voltage
4
Phase L2 voltage
Output
6-8-1
Main trip/95-96-98,1c(SPDT)
8. Indication feature
