Samwha DSP DSP-VIP-PL - Specialized Point; Power Type: Voltage vs. Load Current

Remote Control through RS-485/422 digital communication

Various communication module function
* CM44 : 485/422,Modbus/RTU
* MWR-S : 485,Modbus/RTU, 1 month data record/recording interval:50msec/max
 Basically 4~20mA output : 20mA for maximum current value among 3 phase
 To realize effective system for digital comminication:possible to combine a module simply
if necessary
 To response for RS-485/422,Modbus/RTU
 To select one of RS 485 and 422 :Simply selectable in DIP SW inside communication module:CM-44
 To put easily terminattion resistence in extreme end unit:Simply selectable in DIP SW
inside communication Module
To monitor and input a data by using "samdsp" in the field:Note PC < > Converter of DSP
*PC<RS232>VIP converter:not to need a communication module
*PC<Comm. Module>VIP converter:need 485(Comm. Module)/USB(PC): Protocol
Converter/ DSP-CMB

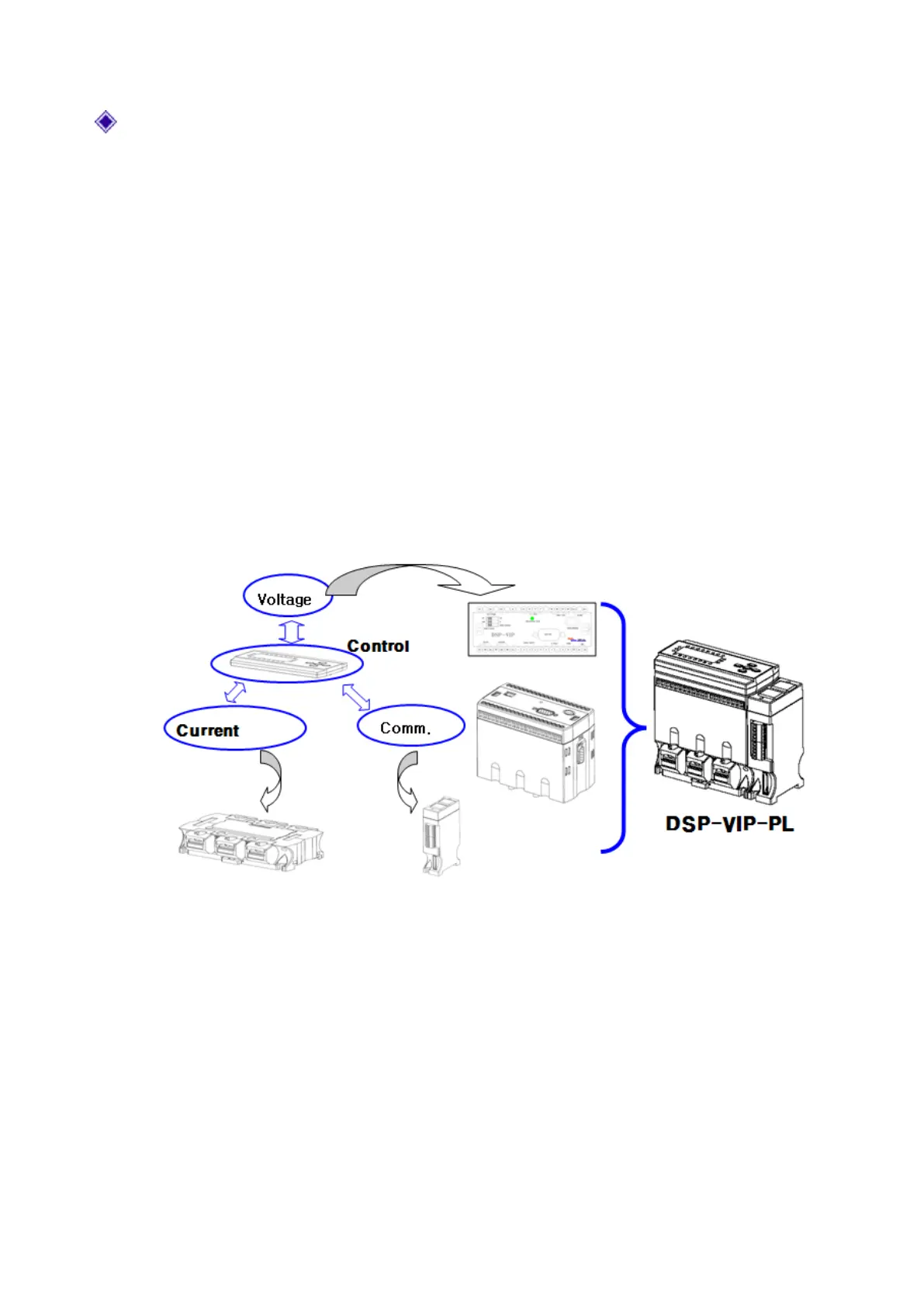

4.Specialized Point
 Power Type= Incoming Line Voltage <==>Load Current
