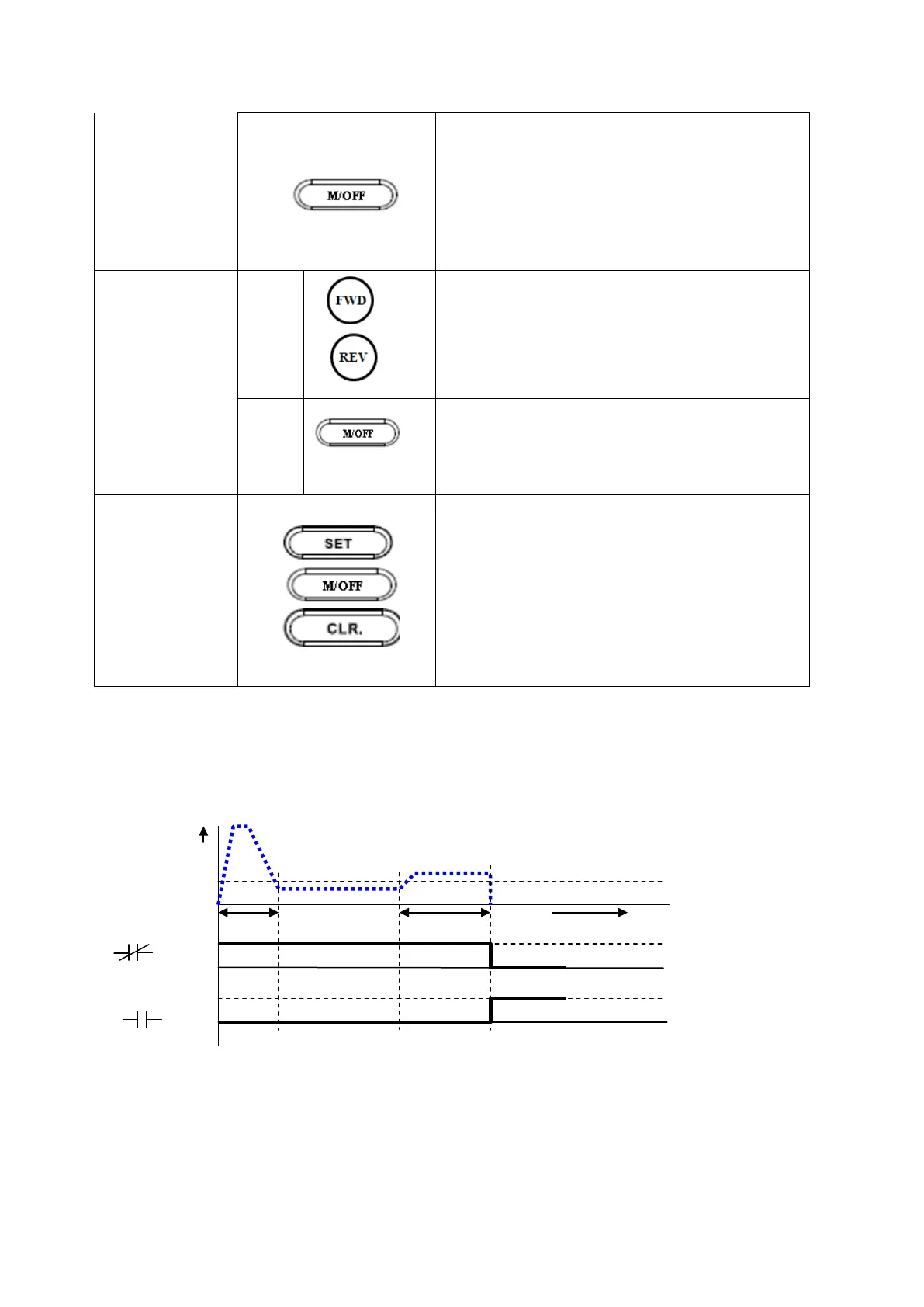

5.Mode
(Store)
*As pressing "Mode" Key once again ,preset
procedure is completed and is ready to operate
in its duty.
*it needs 3 sec to store a preset data,so if
operator makes "power-off" without waiting a
storing precess for this time,ratherly VIP could
returns to initial factory state
DSP-VIP-PM
Motor
Start
*To start a motor in conjuntion with logic input
*Stop job is kept each other while the motor is
operated by the command for the other
*FWD :Forward operation
*REV:Reverse operation
Motor
Stop
To stop a motor in any case
To check preset
value of each
mode during
operation
*possible to check value and mode as pressing
“SET” key once during operation,
*preset vale and mode are appeared
alternatively
*possible to check next mode as pressing “CLR”
Key
*return to operating mode as only waiting for 15
sec
*possible to check both mode “main and sub”
as pressing “CLR” key continuously
15.Time based Trip Relay Output
15-1.Over Load / Over Current Protection
(
Normal energized condition:95-96/open,97-98/close after control power is oN)
i
t
95
96
97
98
O
Close
Open
Close
ot
dt
S tti V l
