Installation
22 S&C Instruction Sheet 716-500

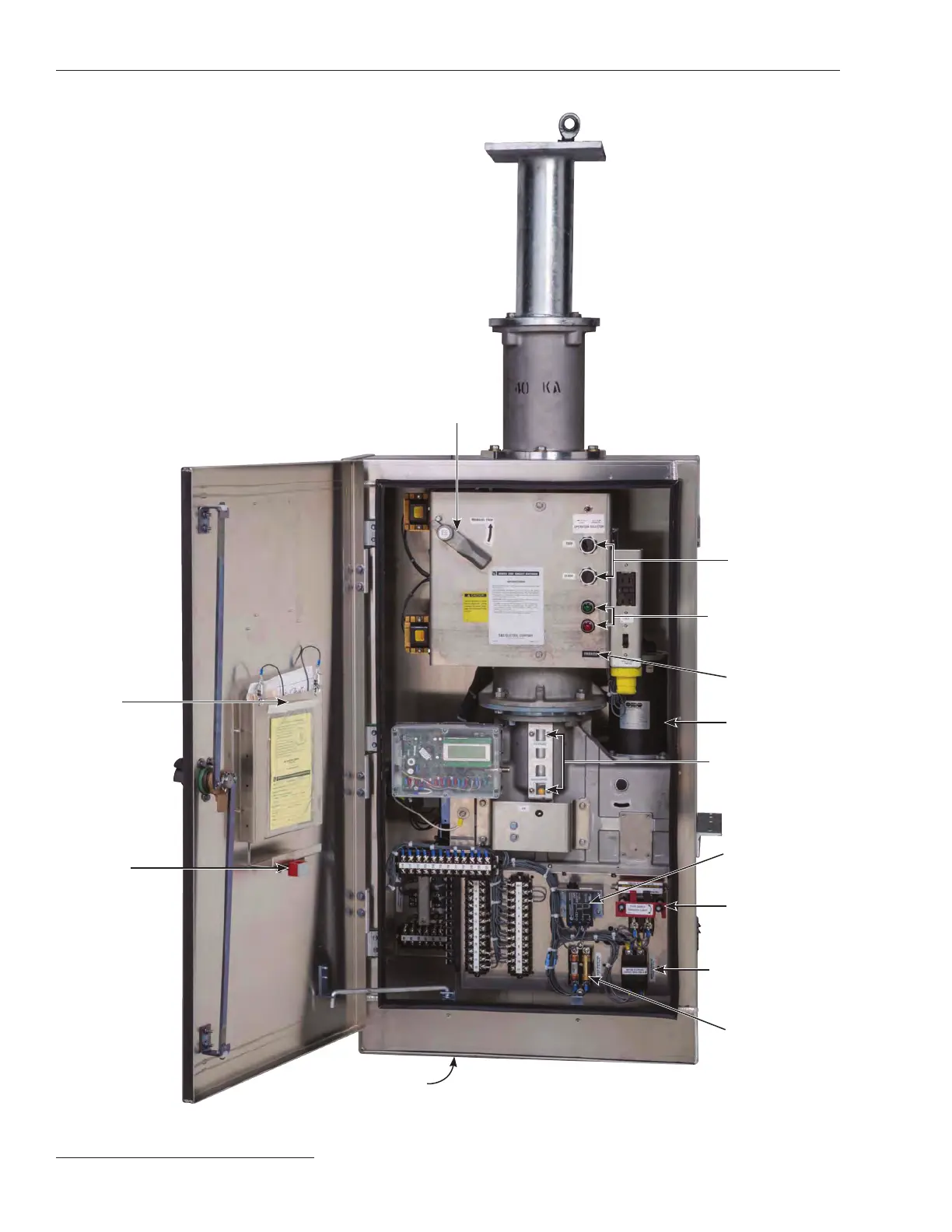

Figure 23. The inside of a Series 2000 Switch Operator.
TRIP and CLOSE
pushbuttons
Position indication
lamps (Catalog
Number Suffix “-M”)
Non-reset electric
operation counter
CHARGED and
DISCHARGED
indicators for stored-
energy mechanism
CONTROL-
SOURCE
knife switch
Motor
MOTOR-AND-
CLOSING circuit
fuseholder
Space heater
fuses
Conduit entrance plate
Spare fuses
Instruction
manual holder
Manual trip lever
Loss of voltage
relay
