S&C 6801 User Manual

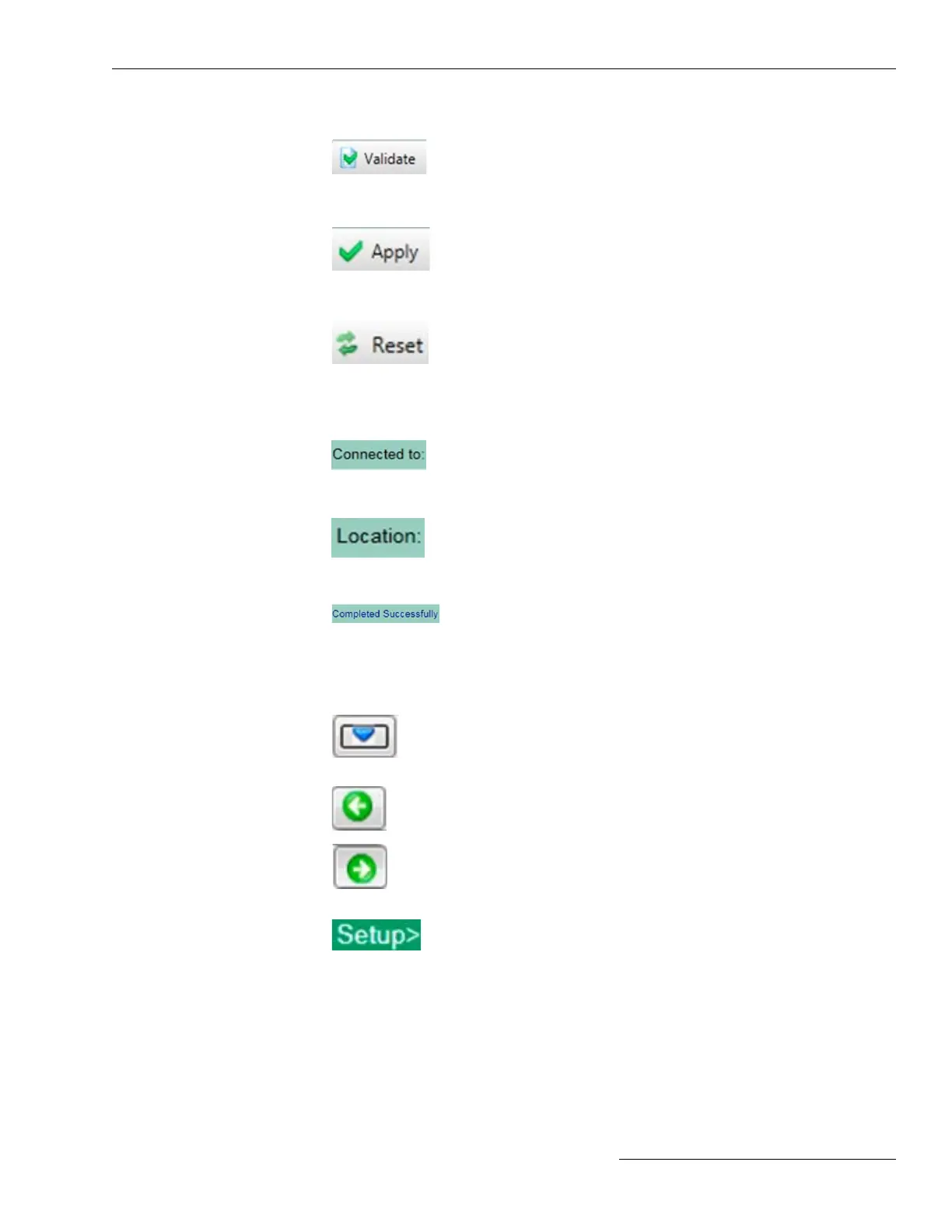

Validate
Same as the Validate button on the Setup>
Validate/Apply screen. See Figure 42 on page 84.
Checks the pending changes but does not apply
them.
Apply
Same as the Apply button on the Setup>Validate/
Apply screen. See Figure 42 on page 84. Checks
the pending changes and applies them if no errors
are found.
Reset
Same as the Reset Buffer button on the Setup>
Validate/Apply screen. See Figure 42 on page 84.
Removes pending changes and returns to settings
in the memory.
IntelliLink
®
Setup Software
Status Bar
Connected to:
This eld shows the user-dened device
name. The device name is entered on the
Setup>General>Site-Related screen.
Location:
This eld shows the user-dened device
location. The device location is entered on
the Setup>General>Site-Related screen.
Validate Status
This eld shows the status of the Validate
and Apply functions.
Navigation Tools
Navigation
History
Clicking this icon opens a list of the last
10 screens visited. Selecting a screen from
the list will automatically transition from
the current screen to the selected screen.
Navigate Back
Clicking this icon selects the next screen
down in the history list.
Navigate
Forward
Clicking this icon selects the next screen
up in the history list.
Breadcrumb
Field
Contains the path of the current screen.
S&C Instruction Sheet 1045-530 17
