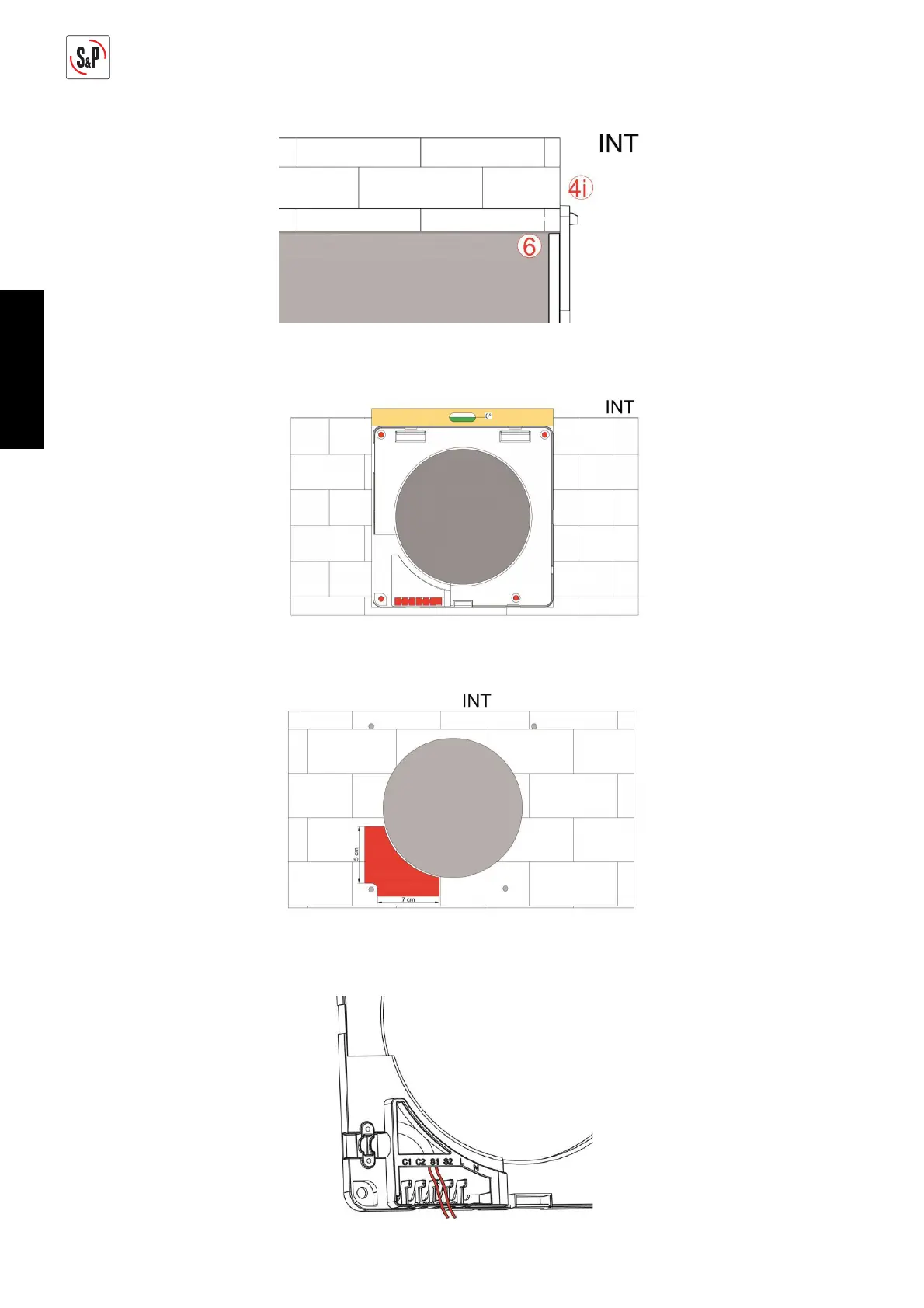

As for the tracing of the outside holes, fi rst insert the centring diameter of the inside wall attachment (4i) into the inte-
grated tube (6) as in the image above. Using a spirit level trace and make the 4 holes for the wall fi xture of the inside wall
attachment (4i).
Unlike the outside wall fi xture, on the inside wall you must bring up the supply leads to be connected to the stripped wires
supplied with the product.
Bring the cables out of the wall in the area shown.
Connection of a supply cable from the wall
Once you have inserted the plugs, before screwing in, extract the terminal block from the inside wall fi xture (4i) and pass
the cables through the base.
