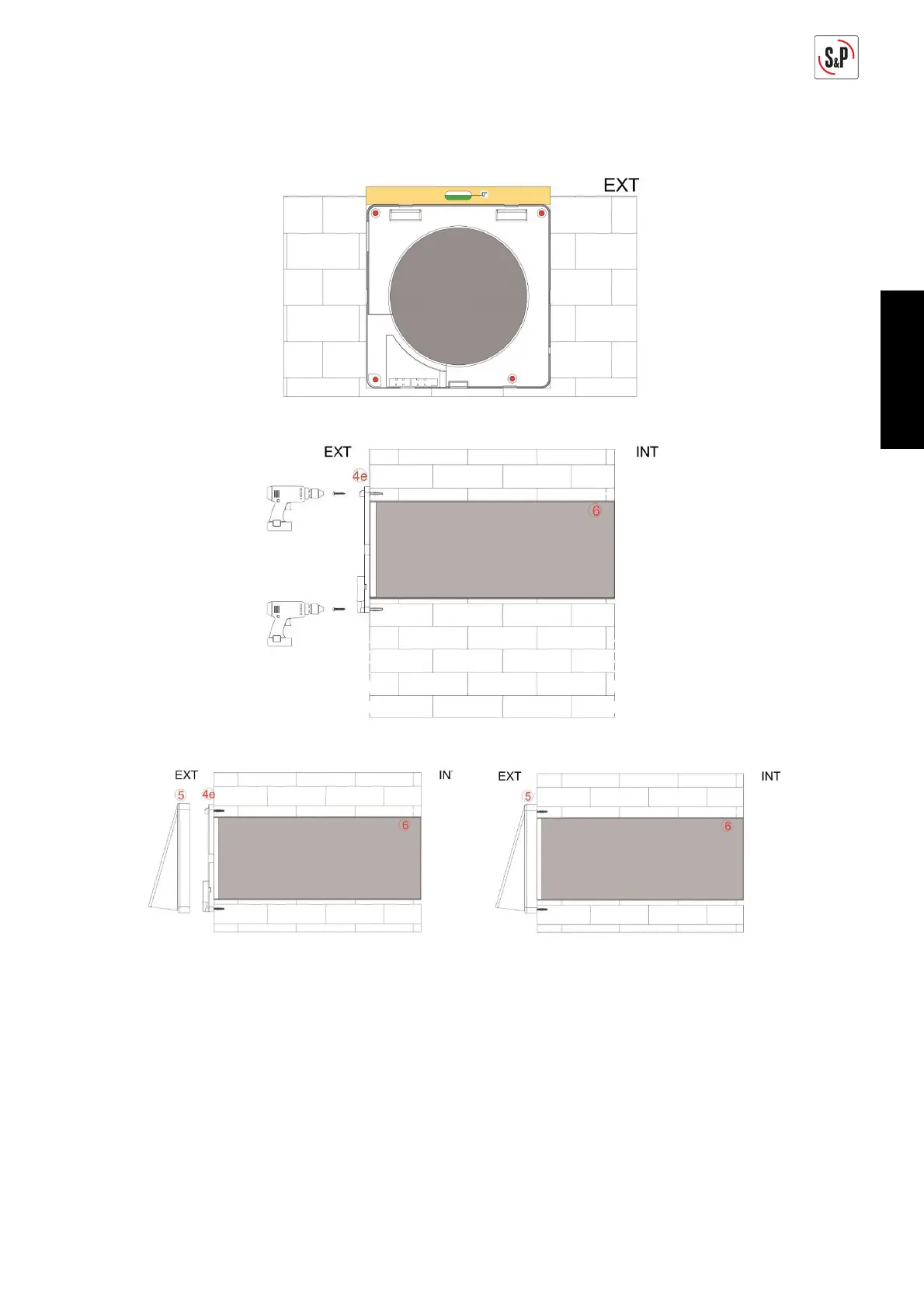

Once the tube has been centred, trace the fi xture holes on the outside wall using the external wall attachment (4e) and a
spirit level to guarantee the precision as shown in the image below:
Make the holes and insert the plugs for the wall fi xture. Screw the outside wall attachment (4e) into the outside wall.
Snap the outside feeder (5) onto the outside wall attachment (4e) as shown in the images.
2 ELECTRICAL CONNECTIONS
The product must only be installed by qualifi ed staff. Make sure that the room’s supply voltage complies with the power
declared on the product’s data sheet.
Make sure that the room’s mains network is disconnected before carrying out the electrical assembly operations.
Identify the product version you have and read all the instructions concerning your version’s electrical connections carefully.
