Sanli Brushcutter User Guide 9
Replacing trimmer line - straight shaft continued.

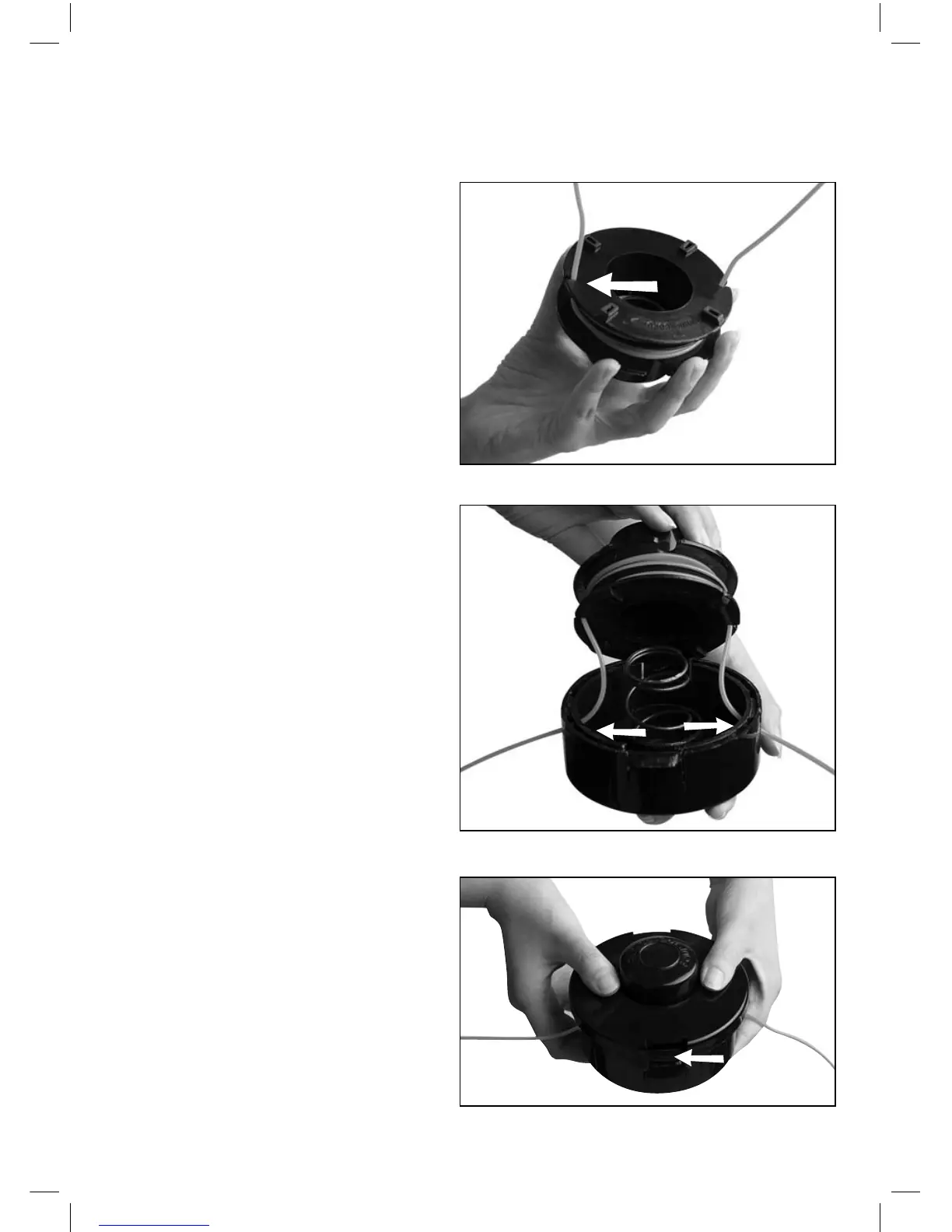

In order to stop the line from
unravelling, slip each end into the lugs
on the bottom edge of the spool see
(Figure 11).
Insert ends of lines through holes in
side of spool casing and place the
spool over the spring and into the
casing see (Figure 12).
When in position pull the ends further
out of the casing.
Then replace the securing lid until it
clicks into place see (Figure 13).
Return trimmer head to the gear head as
in (Figure 6).
Figure 11.
Figure 12.
Figure 13.
