8 Sanli Brushcutter User Guide
Replacing trimmer line - straight shaft.
Locate and depress the two retaining
clips holding the lid in place see
(Figure 8) and remove line spool.
Take approximately 4-5 metres
of 2.0-2.4mm diameter trimmer
line and cut in half. At one end of
each piece fold back about 10mm
making a hook. Thread both hooks
though hole indicated in (Figure 9)
on either side of spool.
Wind both lines anti-clockwise on
both sides of spool ensuring that
both lines remain in their respective
channels see (Figure 10).

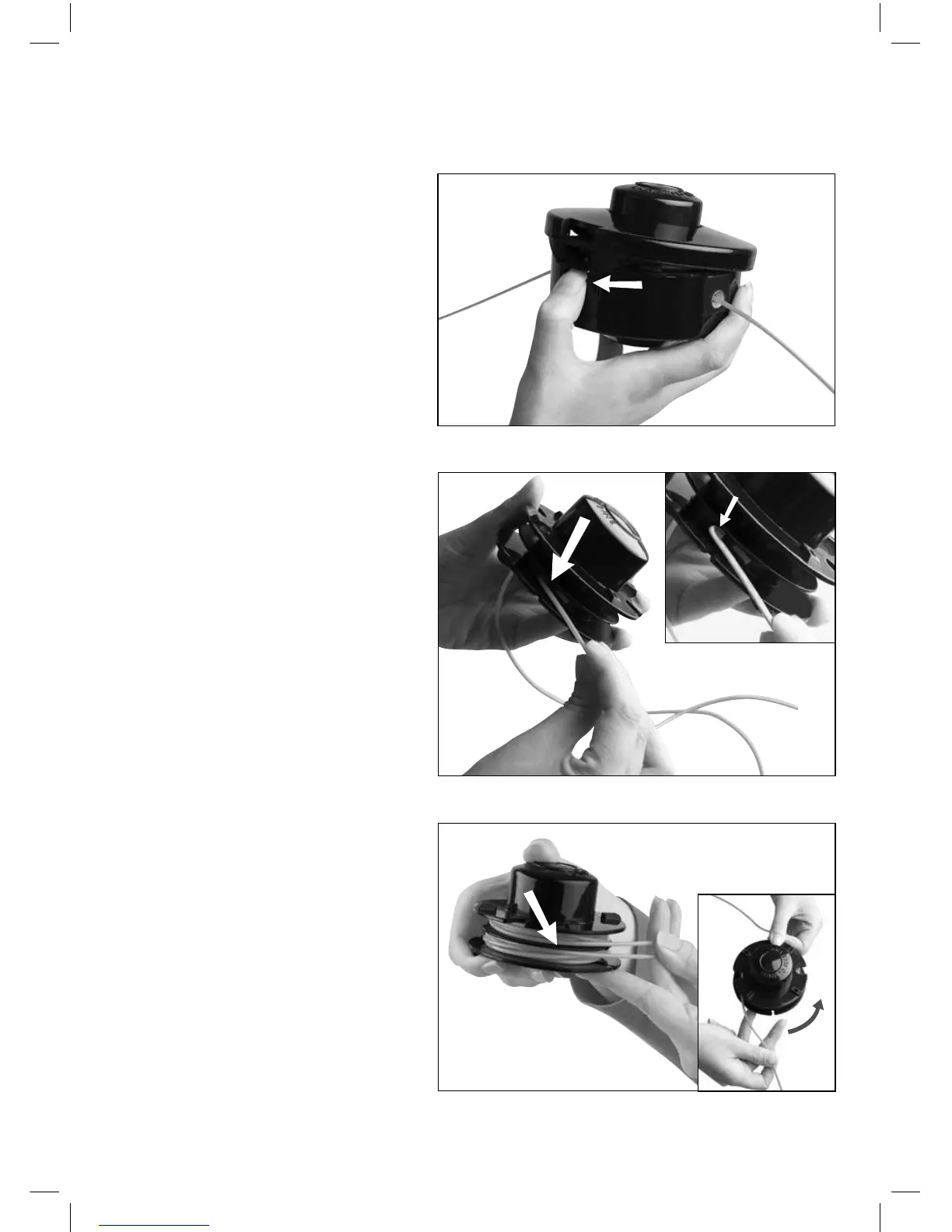

Figure 8.
Figure 9.
Figure 10.
