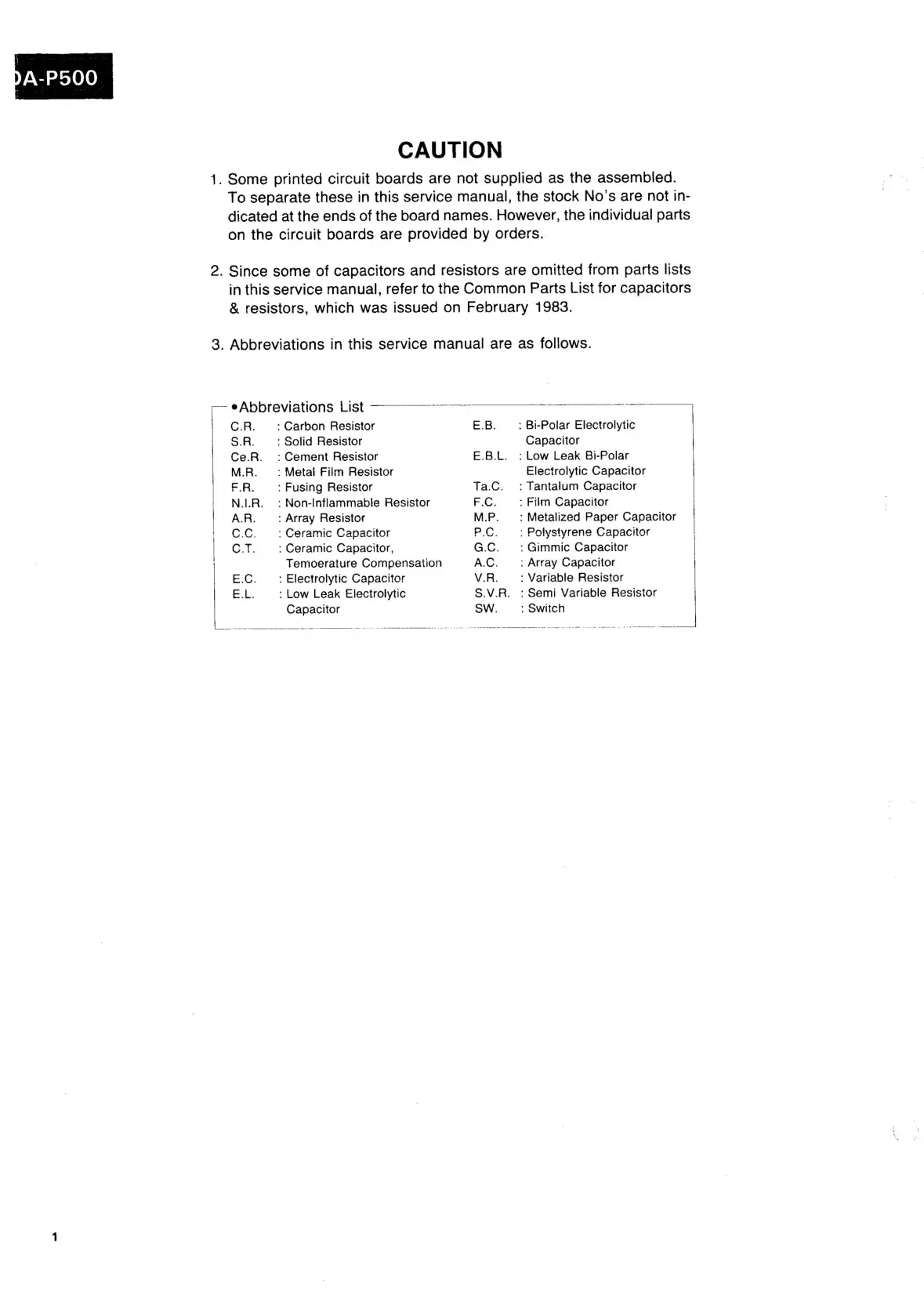

CAUTION
1. Some printed circuit boards are not supplied as the assembied.
To separate these in this service manual, the stock No’s are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.
2. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.
3. Abbreviations in this service manual are as follows.
-- eAbbreviations List os pa payee
C.R. : Carbon Resistor EB, : Bi-Polar Electrolytic
S.R. : Solid Resistor Capacitor
Ce.R. : Cement Resistor E.B.L. : Low Leak Bi-Polar
M.R. : Metal Film Resistor Electrolytic Capacitor
FR. : Fusing Resistor Ta.C. : Tantalum Capacitor
N.ILR. : Non-Inflammable Resistor Ec. : Film Capacitor
A.R. : Array Resistor M.P. : Metalized Paper Capacitor
C.C. : Ceramic Capacitor PC. : Polystyrene Capacitor
Os : Ceramic Capacitor, G.C. —: Gimmic Capacitor
Temoerature Compensation A.C. : Array Capacitor
EG : Electrolytic Capacitor V.R. : Variable Resistor
E:L. : Low Leak Electrolytic S.V.R. : Semi Variable Resistor
Capacitor SW. : Switch
