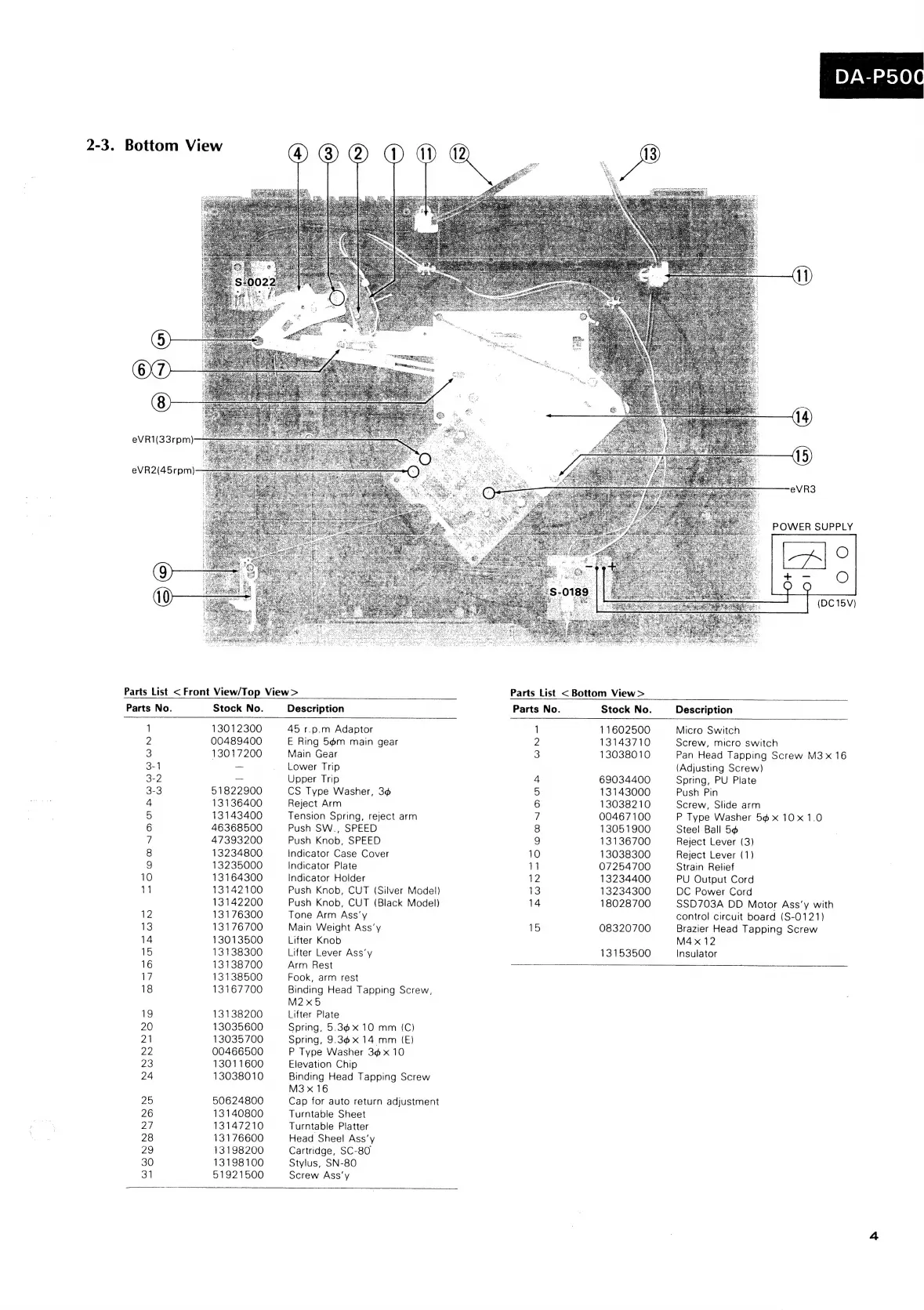

Sansui DA-P500 - Bottom View

Bottom View
eVR1(33rpm)
eVR2(45rpm)
Parts List <Front View/Top View>
Parts No. Stock No. Description
1 13012300 45 r.p.m Adaptor
2 00489400 E Ring 56m main gear
3 13017200 Main Gear
3-1 — Lower Trip
3-2 — Upper Trip
3-3 51822900 CS Type Washer, 3¢
4 13136400 Reject Arm
5 13143400 Tension Spring, reject arm
6 46368500 Push SW., SPEED
7 47393200 Push Knob, SPEED
8 13234800 Indicator Case Cover
9 13235000 Indicator Plate
10 13164300 Indicator Holder
Ta 137142100 Push Knob, CUT (Silver Model)
13142200 Push Knob, CUT (Black Model)
12 13176300 Tone Arm Ass‘y
13 13176700 Main Weight Ass’y
14 13013500 Lifter Knob
15 13138300 Lifter Lever Ass’y
16 13138700 Arm Rest
17 13138500 Fook, arm rest
13 13167700 Binding Head Tapping Screw,
M2x5
19 13138200 Lifter Plate
20 13035600 Spring, 5.3¢ x 10 mm (C)
21 13035700 Spring, 9.36 x 14 mm (E)
22 00466500 P Type Washer 3¢ x 10
23 13011600 Elevation Chip
24 13038010 Binding Head Tapping Screw
M3 x 16
25 50624800 Cap for auto return adjustment
26 13140800 Turntable Sheet
a 13147210 Turntable Platter
28 13176600 Head Sheel Ass’y
29 13198200 Cartridge, SC-80
30 13198100 Stylus, SN-80
31 61921500 Screw Assy
Parts List < Bottom View>
I
(DC 15V)
Parts No. Stock No. Description
1 11602500 Micro Switch
2 13143710 Screw, micro switch
3 13038010 Pan Head Tapping Screw M3 x 16
(Adjusting Screw)
4 69034400 Spring, PU Plate
5 13143000 Push Pin
6 13038210 Screw, Slide arm
7 00467100 P Type Washer 5¢ x 10x 1.0
8 13051900 Steel Ball 5@
9 13136700 Reject Lever (3)
10 13038300 Reject Lever (1)
ee 07254700 Strain Relief
12 13234400 PU Output Cord
13 13234300 DC Power Cord
14 18028700 SSD703A DD Motor Ass’y with
control circuit board (S-0121)
ae) 08320700 Brazier Head Tapping Screw
M4x 12
13153500 Insulator
