Sansui SLED3280 - Parts and Functions

9
ENGLISH

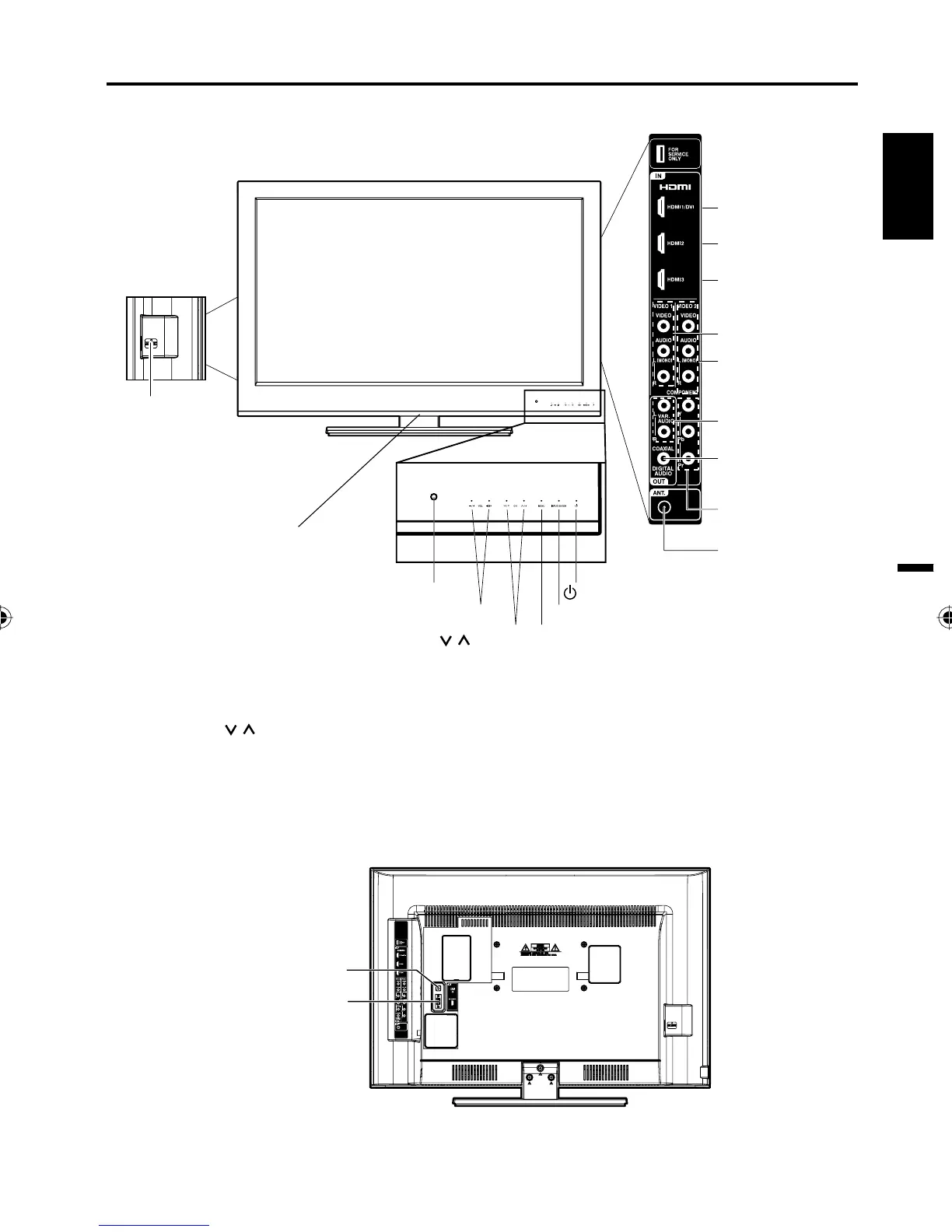

Left side
Front
Remote sensor
(
POWER) button
INPUT/ENTER button
VOL (VOLUME) –/+ buttons
CH (CHANNEL)
/ buttons
MENU
button
Rear
To display the menu screen.
Touch MENU button to display the menu screen.
CH (CHANNEL)
/ buttons, VOL (VOLUME) –/+
buttons and INPUT/ENTER button can be used to
select the desired setting during the menu screen
operations.
PC/DVI AUDIO IN jack
VIDEO 1 IN jacks
(VIDEO/AUDIO
(L(MONO)/R))
COMPONENT
IN jacks
HDMI1/DVI IN jack
PC MONITOR IN jack
Parts and functions
AC INPUT jack
Right side
DIGITAL AUDIO
COAXIAL OUT jack
RF (ANT.) IN jack
Power Indicator
Red : Standby
Blue : On
HDMI3 IN jack
VIDEO 2 IN jacks
(VIDEO/AUDIO
(L(MONO)/R))
HDMI2 IN jack
VAR (VARIABLE)
AUDIO OUT jacks
