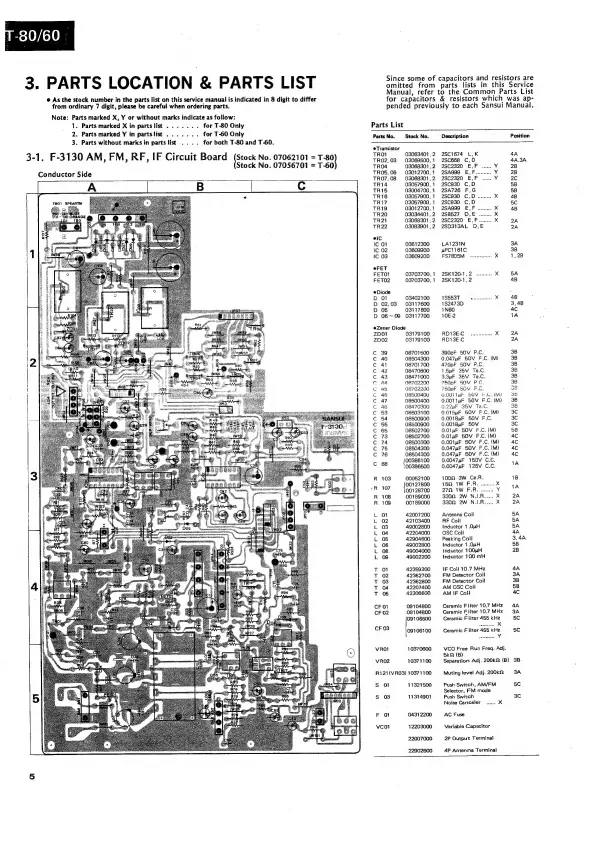

3. PARTS LOCATION & PARTS LIST
@ As the stock number in the parts list on this service manual is indicated in 8 digit to differ
from ordinary 7 digit, please be careful when ordering pasts.
Note: Parts marked X, Y or without marks indicate as follow:
1. Parts marked X in parts fist ....... for T-80 Only
2. Parts marked Y in partslist ....... for T60 Only
3. Parts without marks in parts list... . for both T-80 and T-60.
3-1, F-3130 AM, FM, RF, IF Circuit Board (Stock No. 07062101 = T-80
Stock No. 07056701 = T-60
Conductor Side
B C
Since some of capacitors and resistors are
omitted from parts lists in this Service
Manual, refer to the Common Parts List
for capacitors & resistors which was ap-
pended previously to each Sansui Manual.
Parts List
Parts No. Stock No. Description Position
eTransistor
TROI 03063401,2 2S8C1674 L,K 4A
TRO2,03 03069500,1 2SC668 C,D 44,34
TRO4 03068301,2 2SC2320 E,F 2B
TROS,06 03012700,1 2SA999 E,F.. 2B
TRO7,08 03068301,2 2SC2320 E,F 2c
TR1I4 03057900,1 2SC930 5B
TRIS 03004700,1 2SA726 5B
TR16 03057900,1 2SC930 x 4B
TR17 03057900, 1 2SC930 5c
TR19 03012700,1 2SA999 _X 4B
TR20 03034401,2 2SB527 x
TR21 03068301,2 2SC2320 -X 2A
TR22 03083901,2 2SD313AL D, 2A
eic
1c Ot 03612300 LA1231N 3A
1c 02 03609900 uPC1161C . 3B
Ic 03 03609200 FS7805M 1,2B
eFET
FETO1 03703700,1 2SK120-1,2 .. X 5A
FETO2 03703700,1 2SK120-1,2 4B
®@Diode 7 7
D O1 03402100 1$553T Bei eat 4B
D 02,03 03117600 1$2473D 3,48
D 05 03117800 1N60 4c
D 06~09 03117700 10E-2 1A
eZener Diode
ZD01 03179100 RDISEC eeeeeeeee x 2A
ZDO02 03179100 RD13EC 2A
Cc 39 08701500 390pF 50V P.C. 3B
Cc 40 08504300 0.047nF 5OV F.C. (M) 3B
c 41 08701700 470pF 5OV P.C. 3B
Cc 42 08470800 1.5uF 35V Ta.c. 3B
Cc 43 08471000 3.3uF 35V Ta.C. 3B
© 44 98702200 750pF 50V PC. 3B
cu 45 08702200 7B0pF 50M P.C. 3B
c 46 08500400 0.007 IwF SUV F.C, iM) 3b
Cc 47 08500400 0.0011pF 50V F.C.(M) 38
Cc 48 08470300 O.22uF 35V Ta.c. 3B
c $3 08503100 0.015uF SOV F.C. (M) 3c
Cc 54 08500900 0.0018uF 50V F.C. 3c
Cc 55 08500900 0.0018nF SOV 3c
c 65 08502700 0.01pF 5OV F.C. (M) 58
Cc 73 08502700 0.01nF 5OV F.C. (M) 4c
Cc 74 08500300 0.001nF 50V F.C. (M) 4c
Cc 75 08504300 0.047zF SOV F.C. (M) 4c
Cc 76 08504300 0.047nF 50V F.C. (M} 4c
Cc 88 {003861 00 0.0047uF 150V C.C. 1A
(00386500 0.0047uF 125V C.C.
R 103 00052100 1002 3W ie 1B
00127800 152 1W F.R. x
A107 {Go12700 279. 1W F.R. aye LAS
R 108 00189000 3302 2W N.I. x 2A
R 109 00189000 3302 2W N.IR..... X 2A
L 01 42007200 Antenna Coil 5A
L 02 42103400 RF Coil 5A
L 03 49002800 Inductor 1 .OwH 5A
L 04 42204000 OSC Coil 4A
L 05 42904600 Peaking Coil 3,4A
L 06 49002800 Inductor 1.0”H 5B
L 08 49004000 Inductor 1004H 2B
L og 49002200 Inductor 100 mH
T 01 42359300 IF Coil 10.7 MHz 4A
T 02 42362700 FM Detector Coil 3A
T 03 42362800 FM Detector Coil 3B
T 04 42207400 AM OSC Coil 5B
T 05 42306600 AM IF Coil 4c
CFO1 09104800 Ceramic Filter 10.7 MHz 4A
CF O02 03104800 Ceramic Filter 10.7 MHz = 3A
(09106500 Ceramic Filter 455 kHz 5C
saeecenee x
CEOs }09106100 Ceramic Filter 455 kHz SC
sasadendse Y
VRO1 10370600 VCO Free Run Freq. Adj.
5kQ (B)
VRO2 10371100 Separation Adj. 200k2 (B) 38
R121(VRO3) 10371100 Muting level Adj. 200k2 = 3A
S$ 01 11321500 Push Switch, AM/FM 5c
Selector, FM mode
S$ 03 11314901 Push Switch 3c
Noise Canceler ...... x
F Ql 04312200 AC Fuse
vcol 12203000 Variable Capacitor
22007000 2P Output Terminal
22902600 4P Antenna Terminal
