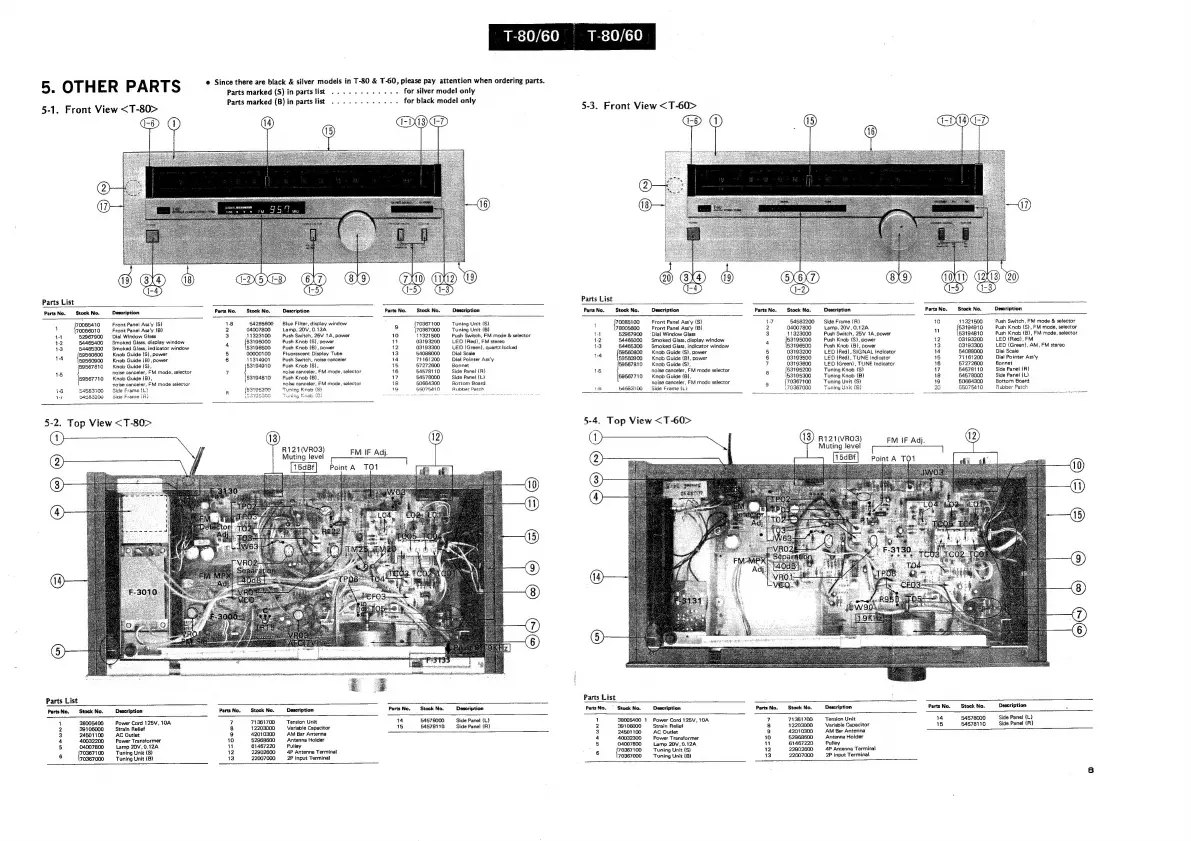

5. OTHER PARTS
5-1. Front View <T-80>
CDSEO Cf
oS @
C5)
7X19) Me
T-80/60
e Since there are black & silver models in T-80 & T-60, please pay attention when ordering parts.
Parts marked (S) in parts list ............ for silver model only
Parts marked (B) in parts list ............ for black model only
EMYED
Parts List
Parts No. Stock No. Description Parts No, Stock No, Description Parts No. Stock No. Description
etoads Front Panel Ass'y (S) 18 54265600 = Blue Filter, display window 70367 100 Tuning Unit (S}
U [70086010 Front Panel Ass’y (B) 2 04007800 Lamp, 20V,0,12A 8 hells Tuning Unit (B)
1-1 52967900 _—— Dial Window Glass 3 11323100 Push Switch, 25V 1A, power 10 11321500 Push Switch, FM mode & selector
1-2 54465400 Smoked Glass, display window 4 fee ieae Push Knob (S), power 11 03193200 LED (Red), FM stereo
1-3 54465300 Smoked Glass, indicator window 53196500 Push Knob {B), power 12 03193300 LED (Green), quartz locked
lem Knob Guide (S), power 5 00000100 Fluorescent Display Tube 13 54088000 Dial Scale
14 59560900 Knob Guide (B}, power 6 11314901 Push Switch, noise canceier 14 71161206 Diai Pointer Ass’y
9567810 Knob Guide (S), 53194910 Push Knob (S}, 15 §7272600 Bonnet
15 noise canceler, FM mode, selector | noise canceler, FM mode, selector 16 54578110 Side Panel ({R)
59567710 Knob Guide {B), 53194810" Push Knob (B), 7 54578000 Side Panel {L)
noise canceler, FM mode selector ; noise canceler, FM mode, selector is 50664300 Bottom Board
18 54583100 Side Frame {L} R {53195200 Tuning Knob {S} 19 55075410 Rubber Patch
Vw 84883200 Side Frame (Ai W3iISSSGG Kinoo (2) ates ~ Seine
5-2. Top View <T-80>
®)
(3)
R121(VRO3)
Muting level
FM IF Adj.
Point A T0O1
Parts List
PartsNo. Stock No. Description PartsNo. Stock No. Description PartsNo. Stock No. Description
1 38005400 Power Cord 125V, 10A 7 71361700 Tension Unit 14 54578000 Side Panel {L}
2 39106000 Strain Relief 8 12203000 Variable Capacitor 15 54578110 Side Panel (R}
3 24501700 AC Outlet 9g 42010300 AM Bar Antenna
4 40032200 Power Transformer 10 52968600 Antenna Holder
5 04007800 Lamp 20V,0.12A 1 61467220 Pulley
6 Wecesnos Tuning Unit (S) 12 22902600 AP Antenna Terminal
70367000 Tuning Unit (B) 13 22007000 2P input Terminal
Besiey(re)
5-3. Front View <T-60>
Parts List
Parts No. Stock No. Description Parts No. Stock No. Description Parts No. Stock No, Description
1 sales Front Panel Ass'y (S} 17 54583200 = Side Frame (R} 10 11321500 Push Switch, FM mode & selector
78005600 Front Panel Ass’y (B) 2 04007800 Lamp, 20V,0.12A " festoreie Push Knob (S), FM mode, selector
1-1 52967900 _—— Dial Window Glass 3 11323000 Push Switch, 25V 1A, power 53194810 Push Knob {B), FM mode, selector
1-2 54465000 Smoked Glass, display window 4 pebrreed Push Knob (S), power 12 03193200 LED (Red), FM
1-3 54465300 Smoked Glass, indicator window 53196500 Push Knob (B), power 13 03193300 LED (Green), AM, FM stereo
1-4 {59560800 Knob Guide (S}, power 5 03193200 LED (Red), SIGNAL Indicator 14 54088000 Dial Scale
(59560800 Knob Guide (8), power 6 03193500 LED (Red), TUNE Indicator 15 71161200 Dial Pointer Ass‘y
[59567810 Knob Guide {S), 7 03193600 LED (Green) , TUNE tndicator 16 57272600 Bonnet
15 noise canceler, FM mode selector 8 eetegerene Tuning Knob (S) 17 54678110 Side Panel (R)
159567710 Knob Guide (B}, 53195300 Tuning Knob (B) 18 54578000 Side Panel (L)
noise canceler, FM mode selector 9 {70367100 Tuning Unit (S) 19 50664300 Bottom Board
i-6 64583100 Side Frame (ii (70367006 Tuning Unit {B} 20 55075410 Rubber Patch
5-4. Top View <T-60>
SSS ae (13) R121(VRO3) FM IF Adj. (2)
uting leve |
Point A T01
Parts List
PartsNo. = Stock No. Description PartsNo. Stock No. Description PartsNo. Stock No. Description j
1 38005400 1 Power Cord 125V,10A 7 71361700 Tension Unit 14 54578000 Side Panel (L)
2 39106000 — Strain Relief 8 12203000 Variable Capacitor 15 54578110 Side Panel (R}
3 24501100 AC Outlet 9 42010300 AM Bar Antenna
4 40032300 Power Transformer 10 52968600 Antenna Holder
5 04007800 Lamp 20V,0.12A 1 61467220 Pulley
6 (oie Tuning Unit (S} 12 22902600 4P Antenna Terminal
70367000 Tuning Unit {B) 13 22007000 2P input Terminal!
