6.

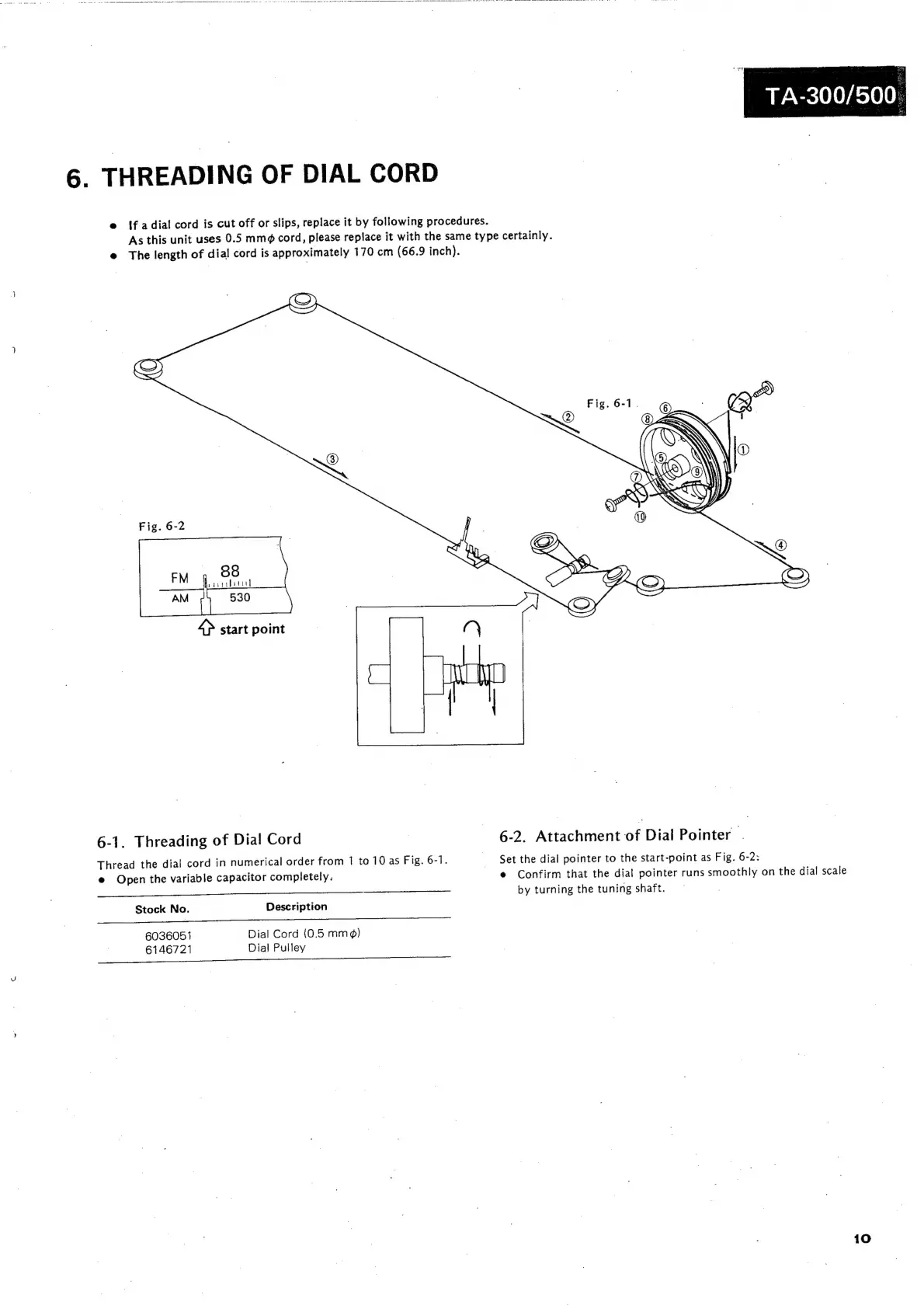

THREADING
OF
DIAL
CORD
e
Sfadial
cord
is
cut
off
or
slips,
replace
it
by
following
procedures.
As
this
unit
uses
0.5
mm¢@
cord,
please
replace
it
with
the
same
type
certainly.
@
The
length
of
dial
cord
is
approximately
170
cm
(66.9
inch).
4p start point
6-1.
Threading
of
Dial
Cord
|
6-2.
Attachment
of
Dial
Pointer
.
Set the dial pointer to the start-point as Fig. 6-2:
e
Confirm
that
the
dial
pointer
runs
smoothly
on
the
dial
scale
by turning the tuning shaft.
Thread
the
dial
cord
in
numerical
order
from
1
to
10
as
Fig.
6-1.
@
Open
the
variable
capacitor
completely.
ere
vn
re
ee
er
ee
Stock
No.
Description
re
6036051
Dial
Cord
(0.5
mm@)
6146721
Dial
Pulley
10
