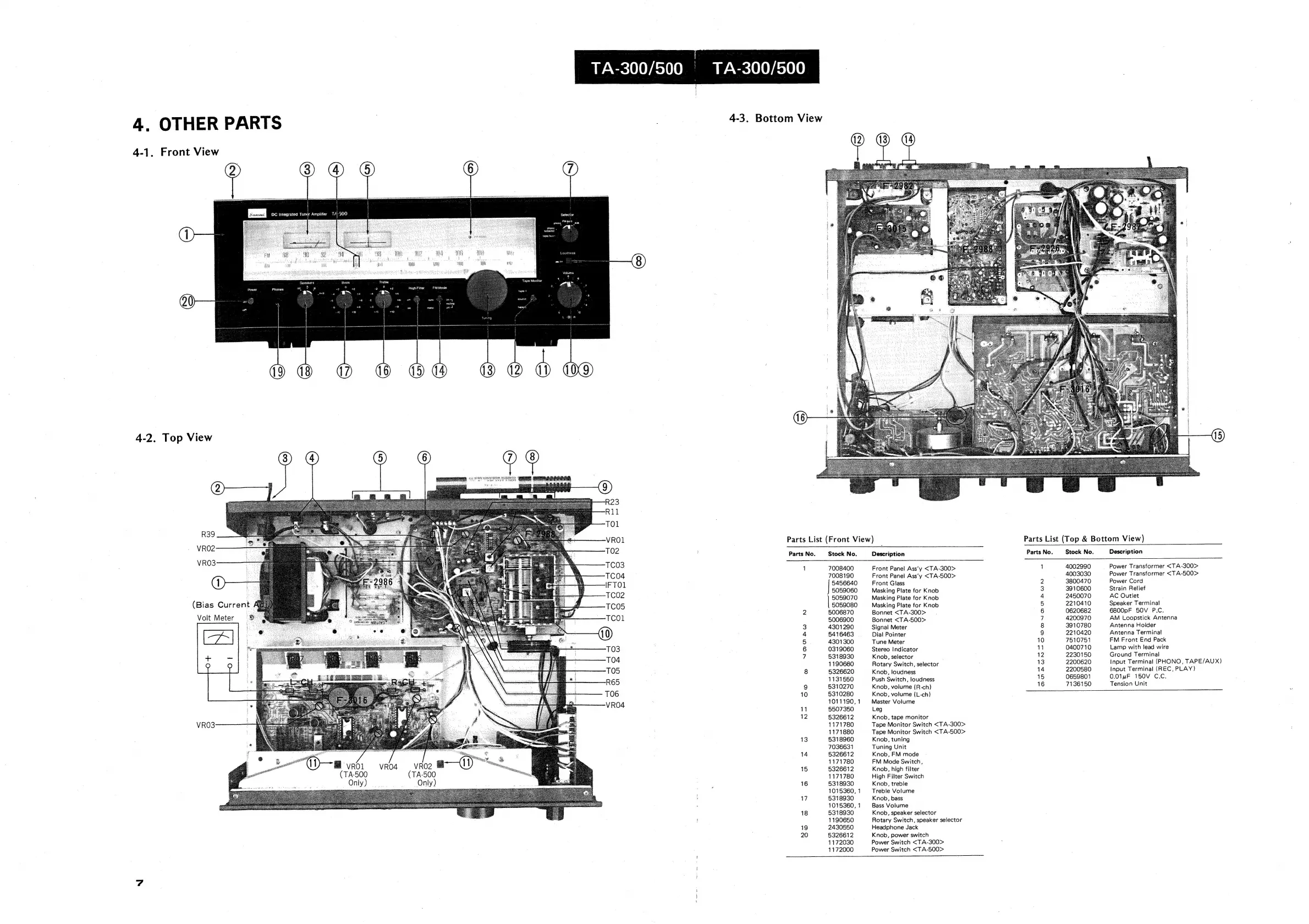

TA-300/500
4.
OTHER
PARTS
|
3
4-1. Front View
Heitana tuewtiresol
Reape esex*
Lovdsess
WSRune
Higgs Fite F534 Mente
4-2. Top View
R23
Rll
TO1
=
Se
ee
:
:
he
VRO1
VRO2
——F
oo
:
4
cc
-
TO2
VRO3
:
:
2.
=
eh
my
ES
.%
TCO3
TC04
IFTO1
TCO2
TCO5
TCOl
Volt Meter
TO3
T04
T05
TO6
VRO4
VRO3
VRO1 = -VRO4
(TA-500
Only)
a
TA-300/500
4-3. Bottom View
Parts List (Front View)
Parts No. Stock No. Description
1 7008400 Front Panel Ass’'y <TA-300>
7008190 Front Panel Ass‘'y <TA-500>
5456640 Front Glass
5059060 Masking Plate for Knob
5059070 Masking Plate for Knob
5059080 Masking Plate for Knob
2 5006870 Bonnet <TA-300>
5006900 Bonnet <TA-500>
3 4301290 Signal Meter
4 5416463 Dial Pointer
5 4301300 Tune Meter
6 0319060 Stereo Indicator
7 5318930 Knob, selector
1190660 Rotary Switch, selector
8 5326620 Knob, loudness
1131550 Push Switch, loudness
9 5310270 Knob, volume (R-ch)
10 5310280 Knob, volume (L-ch)
1011190, 1 Master Volume
11 5507350 Leg
12 5326612 Knob, tape monitor
1171780 Tape Monitor Switch <TA-300>
1171880 Tape Monitor Switch <TA-500>
13 5318960 Knob, tuning
7036631 Tuning Unit
14 5326612 Knob, FM mode
1171780 FM Mode Switch,
15 5326612 Knob, high filter
1171780 High Filter Switch
16 5318930 Knob, treble
1015360, 1 Treble Volume
17 5318930 Knob, bass
1015360, 1 Bass Volume
18 5318930 Knob, speaker selector
1190650 Rotary Switch, speaker selector
19 2430550 Headphone Jack
20 5326612 Knob, power switch
1172030 Power Switch <TA-300>
1172000 Power Switch <TA-500>
4
i
if
4
i
5
Parts List (Top & Bottom View)
Parts No. Stock No. Description
1 4002990 Power Transformer <TA-300>
4003030 Power Transformer <TA-500>
2 3800470 Power Cord
3 3910600 Strain Relief
4 2450070 AC Outlet
5 2210410 Speaker Terminal
6 0620682 6800pF 50V P.C.
7 4200970 AM Loopstick Antenna
8 3910780 Antenna Holder
9 2210420 Antenna Terminal
10 7510751 FM Front End Pack
11 0400710 Lamp with Jead wire
12 2230150 Ground Terminal
13 2200620 Input Terminal (PHONO, TAPE/AUX)
14 2200580 Input Terminal (REC, PLAY)
15 0659801 O.01uF 150V C.C.
16 7136150 Tension Unit
