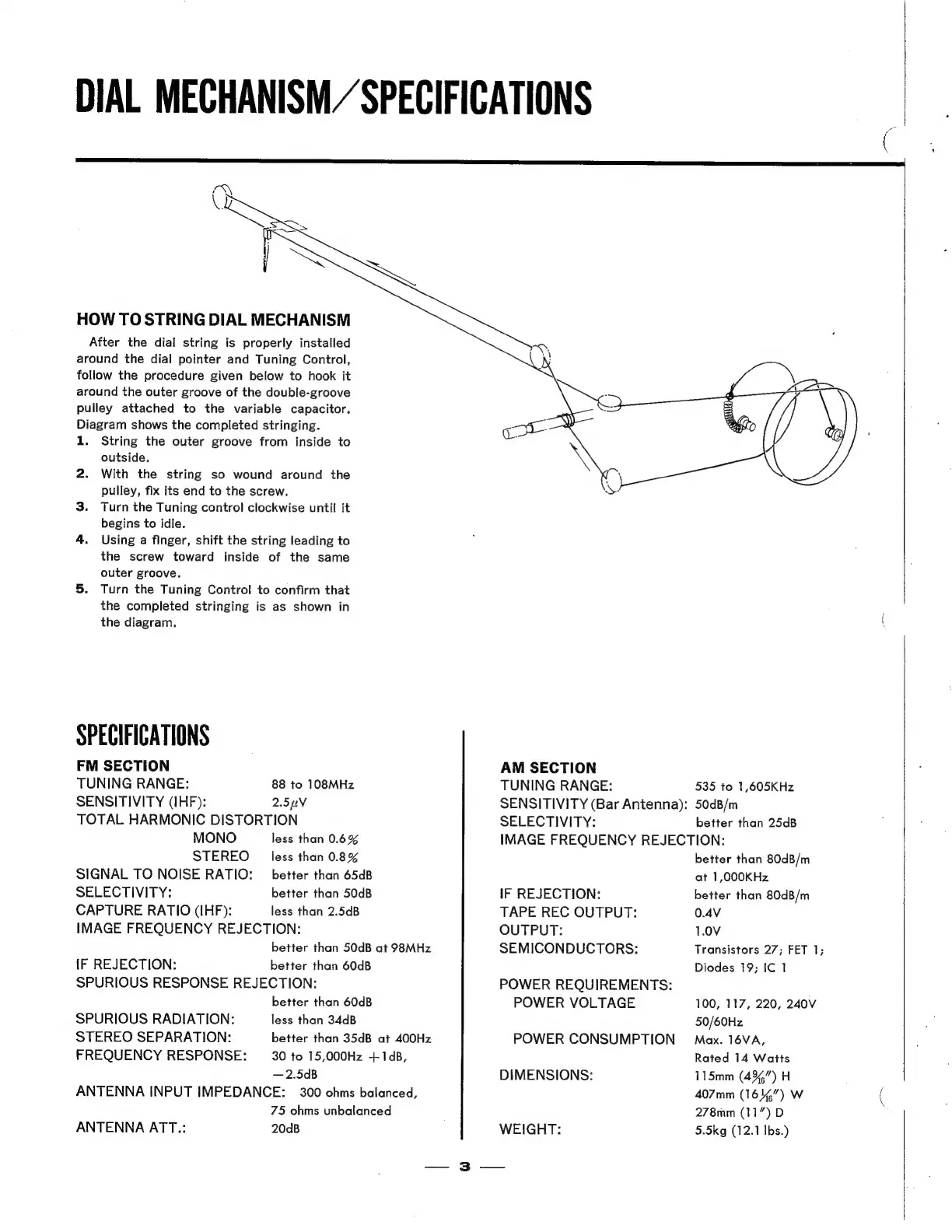

DIAL
MECHANISM
SPECIFICATIONS
HOW TO STRING DIAL MECHANISM
After the dial string is properly installed
around the dial pointer and Tuning Control,
follow the procedure given below to hook it
around the outer groove of the double-groove
pulley attached to the variable capacitor.
Diagram shows the completed stringing.
1. String the outer groove from inside to
outside.
2. With the string so wound around the
pulley, fix its end to the screw.
3. Turn the Tuning control clockwise until it
begins to idle.
4. Using a finger, shift the string leading to
the screw toward inside of the same
outer groove.
5. Turn the Tuning Control to confirm that
the completed stringing is as shown in
the diagram.
SPECIFICATIONS
FM SECTION
TUNING RANGE: 88 to 108MHz
SENSITIVITY (IHF): 2.5uV
TOTAL HARMONIC DISTORTION
MONO less than 0.6%
STEREO less than 0.8%
SIGNAL TO NOISE RATIO: better than 65dB
SELECTIVITY: better than 50dB
CAPTURE RATIO (IHF): less than 2.5dB
IMAGE FREQUENCY REJECTION:
better than 50dB at 98MHz
IF REJECTION: better than 60dB
SPURIOUS RESPONSE REJECTION:
better than 60dB
SPURIOUS RADIATION: less than 34dB
STEREO SEPARATION: better than 35dB at 400Hz
FREQUENCY RESPONSE: 30 to 15,000Hz +1dB,
—2.5dB
ANTENNA INPUT IMPEDANCE: 300 ohms balanced,
75 ohms unbalanced
ANTENNA ATT.: 20dB
AM SECTION
TUNING RANGE:
SENSITIVITY (Bar Antenna): 50dB/m
535 to 1,605KHz
SELECTIVITY: better than 25dB
IMAGE FREQUENCY REJECTION:
better than 80dB/m
at 1,000KHz
IF REJECTION: better than 80dB/m
TAPE REC OUTPUT: 0.4V
OUTPUT: 1.0V
SEMICONDUCTORS: Transistors 27; FET 1;
Diodes 19; IC 1
POWER REQUIREMENTS:
POWER VOLTAGE 100, 117, 220, 240V
50/60Hz
POWER CONSUMPTION Max. 16VA,
Rated 14 Watts
115mm (4%”) H
407mm (16167) W
278rnm (11”) D
WEIGHT: 5.5kg (12.1 Ibs.)
DIMENSIONS:
