Sanus BLL2 - Troubleshooting TV Spacers; Using Supplied Spacers Correctly

22
Troubleshooting
TV Supplied
Spacer /adapter
TV Supplied
Spacer /adapter
TV supplied spacers
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.

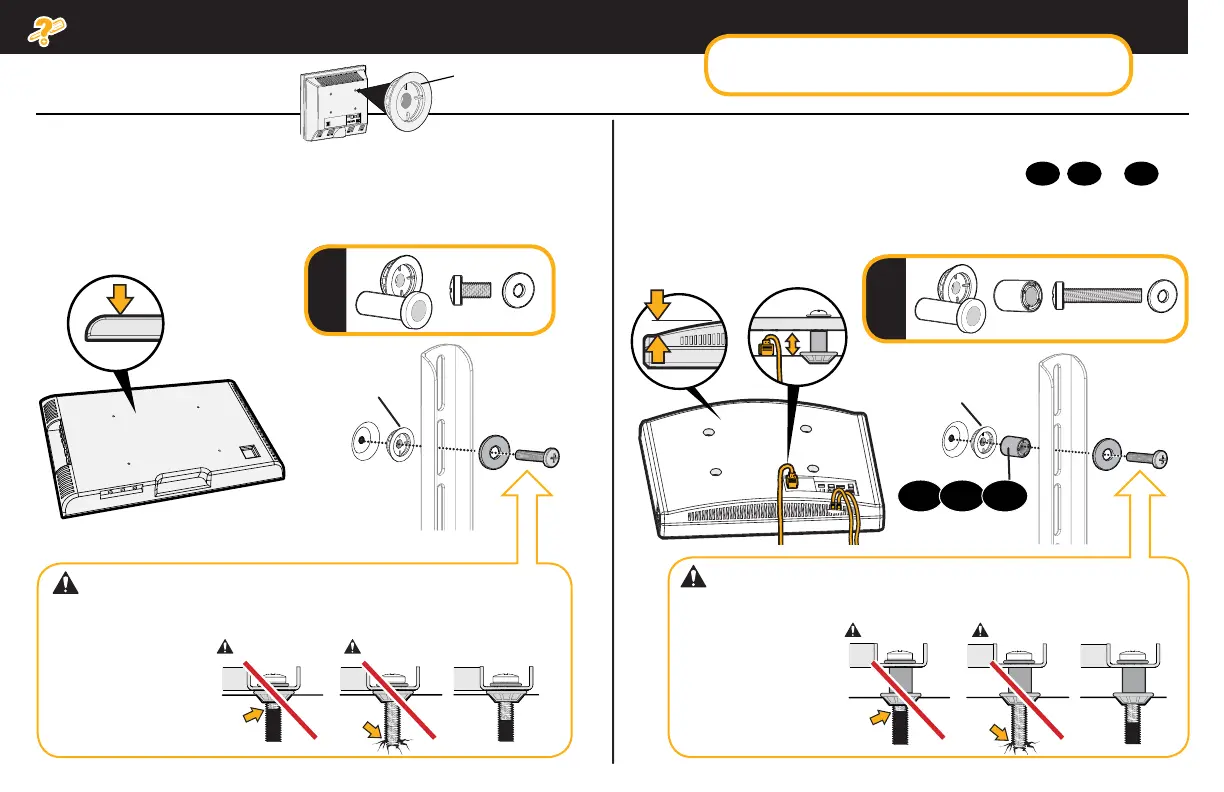

TV Supplied
Spacers
a
b
FLAT BACK
ROUND BACK CABLES
a: Use your TV supplied spacer/adapter for flat back TVs (AND
you want your TV closer to the wall).
b: Use your TV supplied spacer/adapter and spacer
11
,
12
or
13
for:
● Round (irregular) back TVs ● Extra space needed for cables
– Too short will
not hold the TV.
– Too long will
damage the TV.
– Too short will
not hold the TV.
– Too long will
damage the TV.
Too Short
Too Short
Too Long
Too Long
Correct
Correct
If you are uncertain about your hardware selection,
contact Customer Service at 1-800-359-5520.
11 12 13
