20
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate
07
directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)
● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)

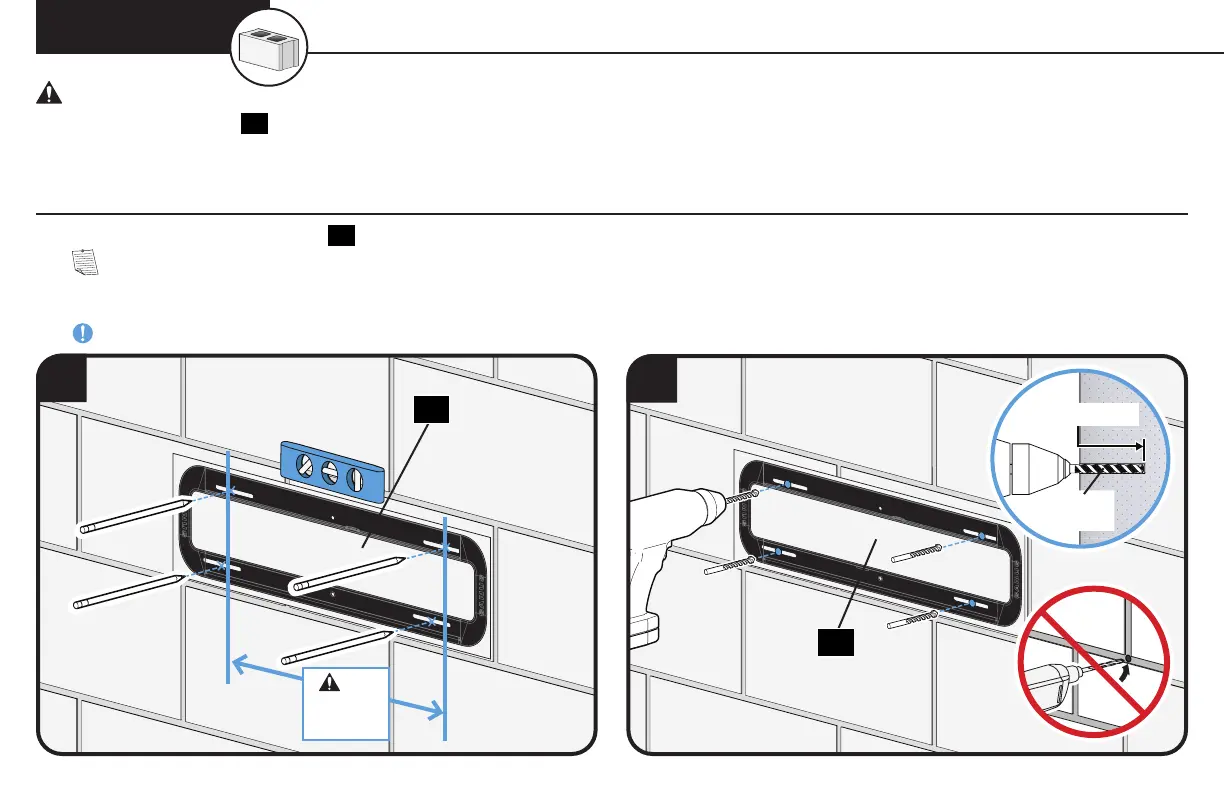

1. Position the wall plate template
06
on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
06
06
1
2
3/8 in.
(10 mm)
3 in. (75 mm)
Min.
16 in.
(406 mm)
STEP 2C Solid Concrete or Concrete Block Option
