6
IMPORTANT: For
ease of access, straps
should be level with
the bottom of the TV.

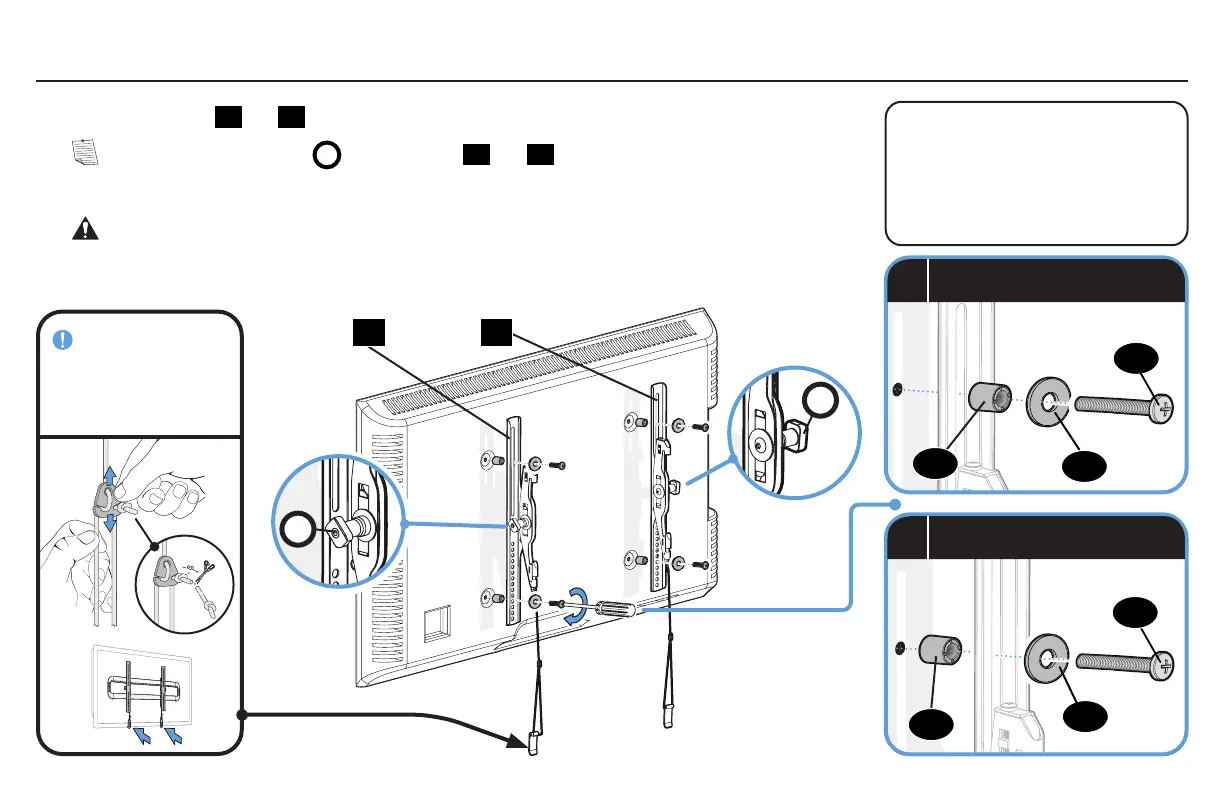

1.3 Attach TV Brackets
Center the TV brackets
01
and
02
over your TV hole pattern as shown - making sure the brackets are level.
NOTE: The tilt tension knob
T
on TV brackets
01
and
02
should be oriented to the outside edges.
Install using the spacer, TV screw and washer combination you selected for your TV.
CAUTION: Avoid potential personal injuries and property damage! DO NOT use a
power screwdriver for this step. Tighten screws only until TV Bracket is secured in place.
a
Spacer, screw and washer
b
Spacer, screw and washer
05
05
04
04
03
0201
T
Standard configurations are shown.
For special applications, or if you
are uncertain about your hardware
selection, contact Customer Service
at
1-800-359-5520
.
T
03
