Sanus DLF118 - Page 6

6
02
03
B
A

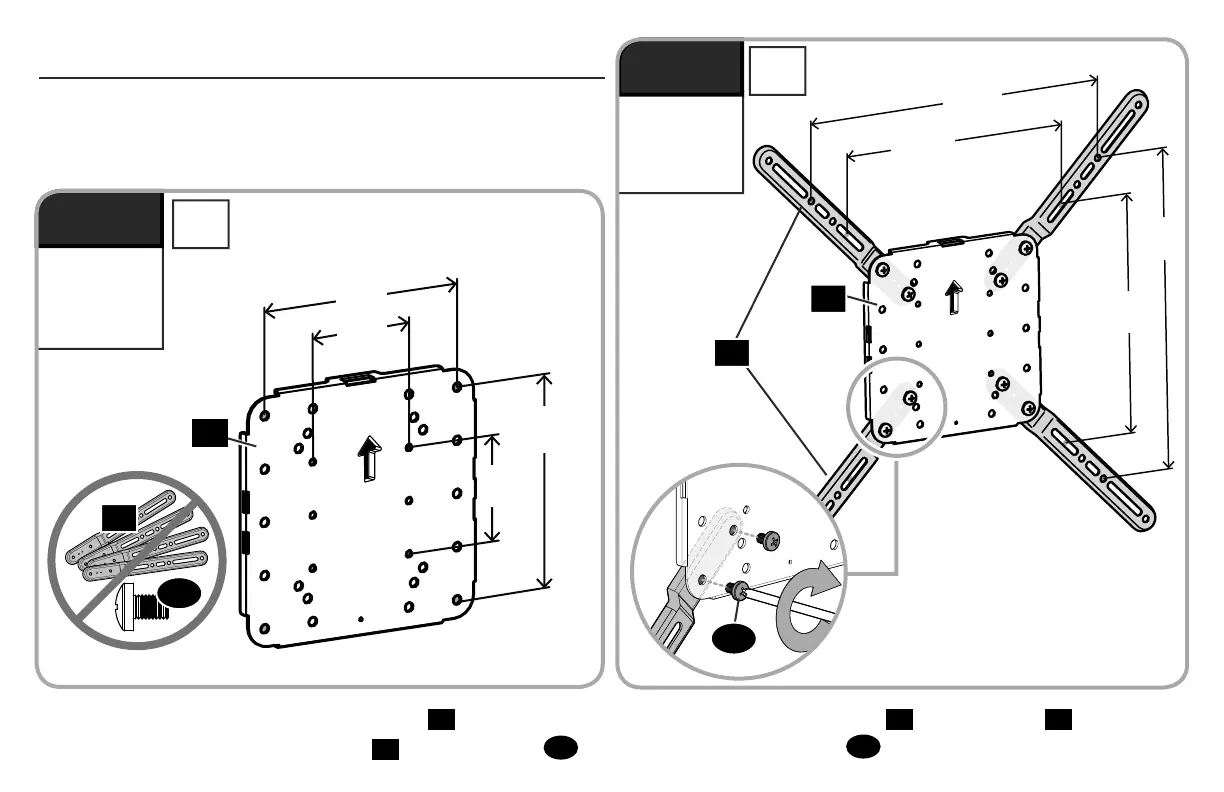

1.2 Assemble Your TV Bracket
Based on your TV hole pattern measurements, determine which
TV bracket configuration to use, A, B, C, D, E or F.
TV hole pattern
measurement (cm)
TV hole pattern
measurement (cm)
20.0
[7.87]
20.0
[7.87]
10.0
[3.94]
10.0
[3.94]
40.0
[15.75]
40.0
[15.75]
cm
[in.]
cm
[in.]
Assemble TV bracket extenders
02
onto TV bracket
01
as illustrated.
Secure using eight screws
03
in the corner holes shown.
30.0 x 30.0
40.0 x 40.0
02
30.0
[11.81]
30.0
[11.81]
These smaller hole patterns only use TV bracket
01
.
Do not use the four TV bracket extenders
02
and eight screws
03
.
10.0 x 10.0
20.0 X 20.0
01
01
03
