Troubleshooting
TV Supplied
Spacer
TV Supplied
Spacer
TV supplied spacers

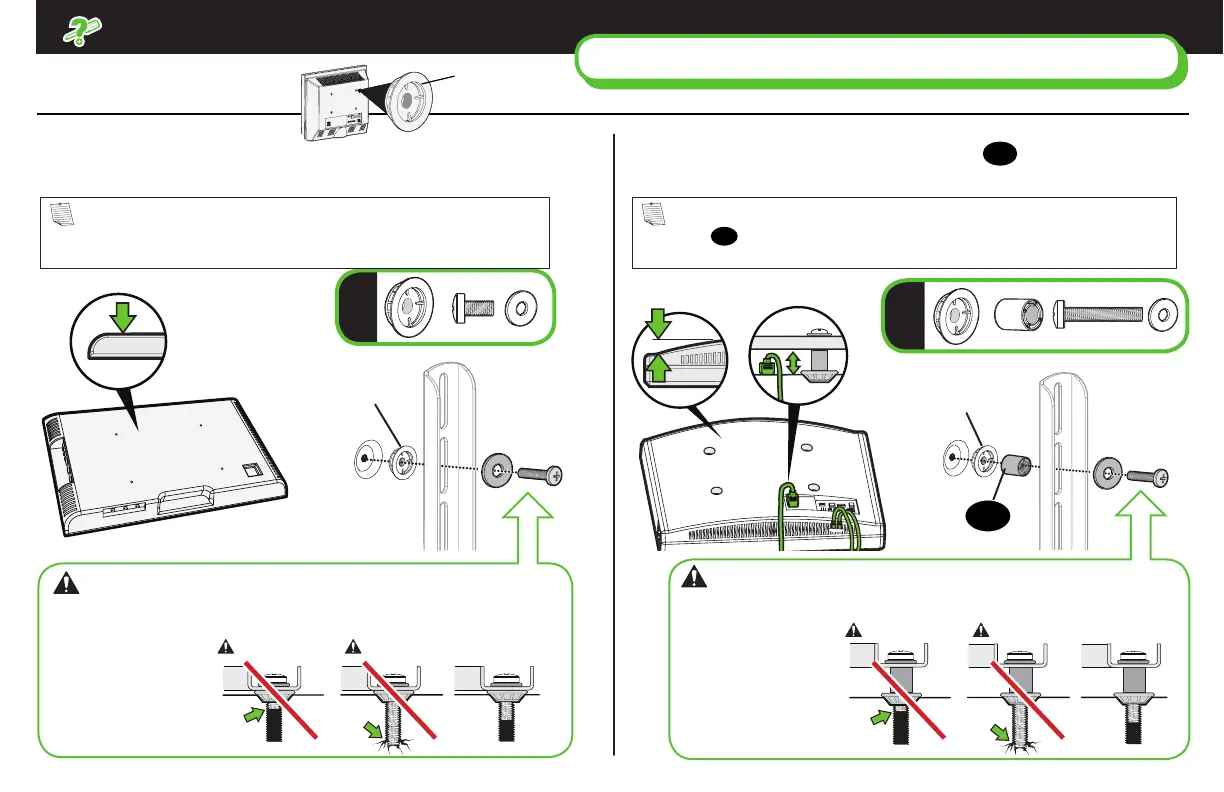

CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
CAUTION: Avoid potential injury or property damage!
Use the correct screw length for adequate thread engagment.
TV Supplied
Spacers
a
b
FLAT BACK
ROUND BACK CABLES
a: Use your TV supplied spacer for flat back TVs (AND you want
your TV closer to the wall).
b: Use your TV supplied spacer and spacer
11
for:
● Round (irregular) back TVs ● Extra space needed for cables
– Too short will
not hold the TV.
– Too long will
damage the TV.
– Too short will
not hold the TV.
– Too long will
damage the TV.
Too Short
Too Short
Too Long
Too Long
Correct
Correct
11
NOTE: The M8x20mm screw will not work with the TV supplied
spacer. Verify with your TV manual that you can use the M8x20mm
screws without the TV supplied spacer.
NOTE: The M8x20mm screw will not work with the TV supplied spacer
or spacer
11
. Verify with your TV manual that you can use the M8x20mm
screws without the TV supplied spacer.
If you are uncertain about your hardware selection, contact Customer Service.
