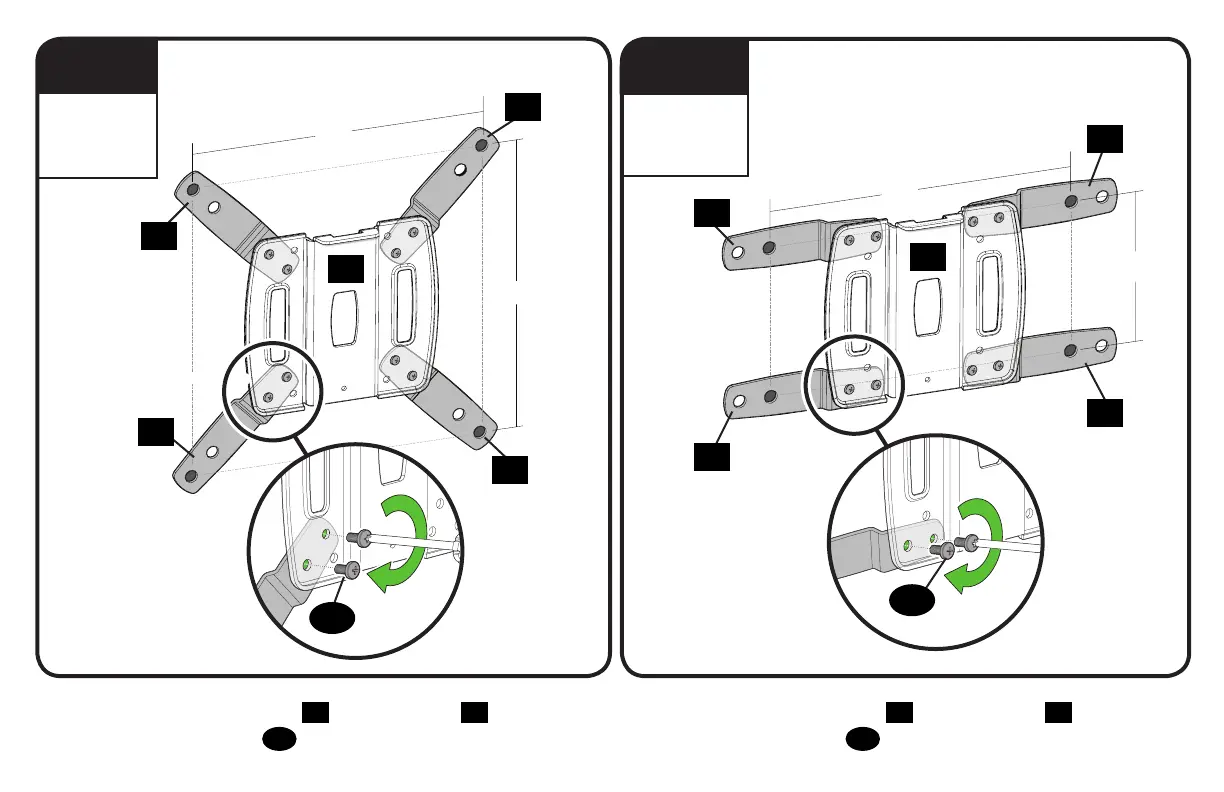

Assemble TV bracket extenders
02
onto TV bracket
01
as illustrated.
Secure using eight screws
03
in the corner holes shown.
Assemble TV bracket extenders
02
onto TV bracket
01
as illustrated.
Secure using eight screws
03
in the corner holes shown.
200 x 200
200 x 100
01
200
200
200
100
01
02
02
02
02
02
02
02
02
03
03
Dimensions in mm
Dimensions in mm
TV Hole Pattern
Measurement
TV Hole Pattern
Measurement
