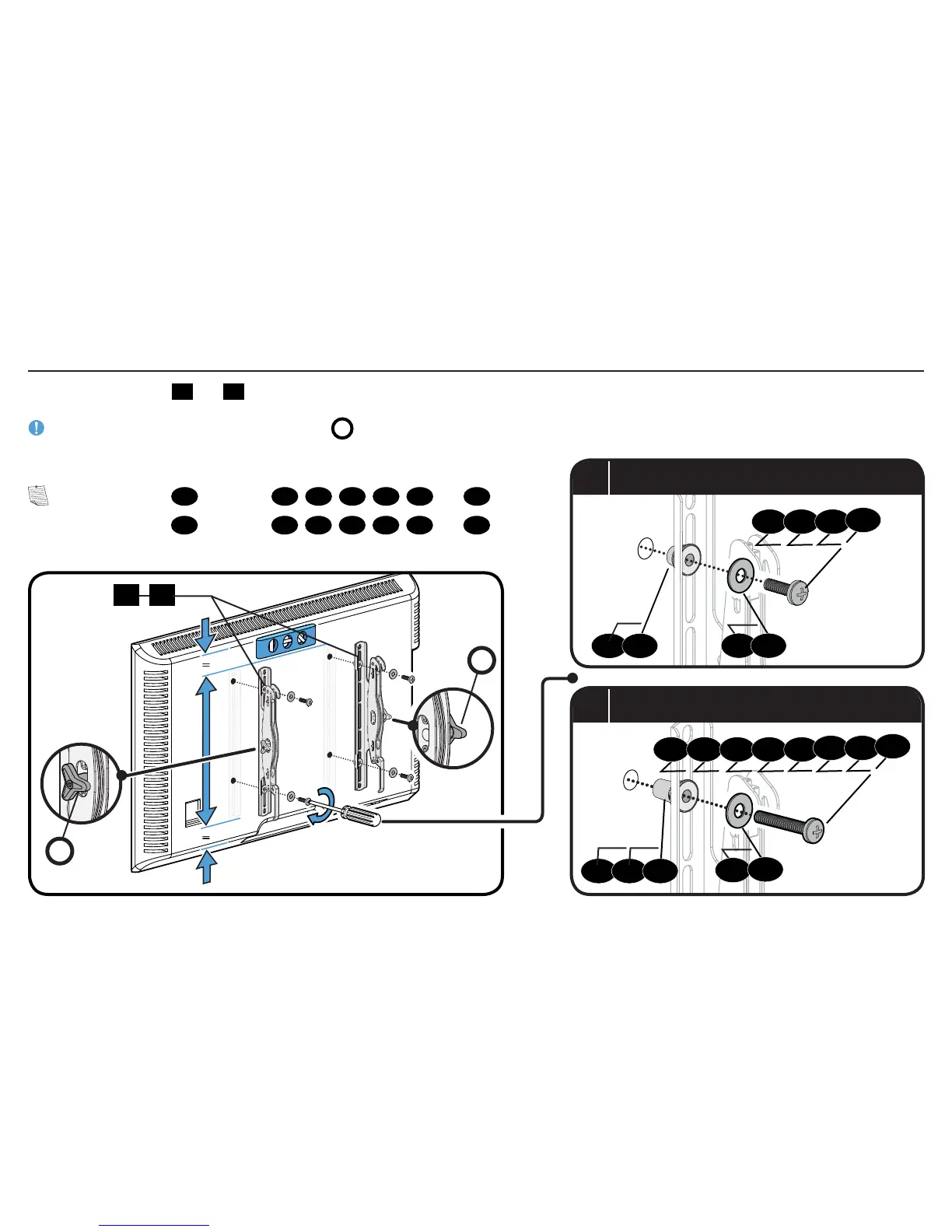

Center the TV brackets
01
and
02
over your TV hole pattern as shown, making sure the brackets are level with each other.
IMPORTANT: Install with tilt tension knobs
K
toward the outside.
Install using the screw and washer combination [a] or [b] you selected for your TV.
NOTE: Use washer
21
for screws
03
,
04
,
07
,
08
,
11
and
12
.
Use washer
22
for screws
05
,
06
,
09
,
10
,
13
and
14
.
a
Flat Back
b
Round Back / Extra Space
15
17
16
18 19
07
03 04 05
06
08 09 10 11
12 13
14
21
21
22
22
1-5 Attach TV Brackets
01 02
K
K
