STEP 2B Attach Wall Plate to Wall - Solid Concrete or Concrete Block
2
14
CAUTION: Avoid potential personal injuries and property damage!
• Mount the wall plate
14
directly onto the concrete surface
• Minimum solid concrete thickness: 8 in. (203 mm)
• Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
• Minimum horizontal space between fasteners: 16 in. (406 mm)

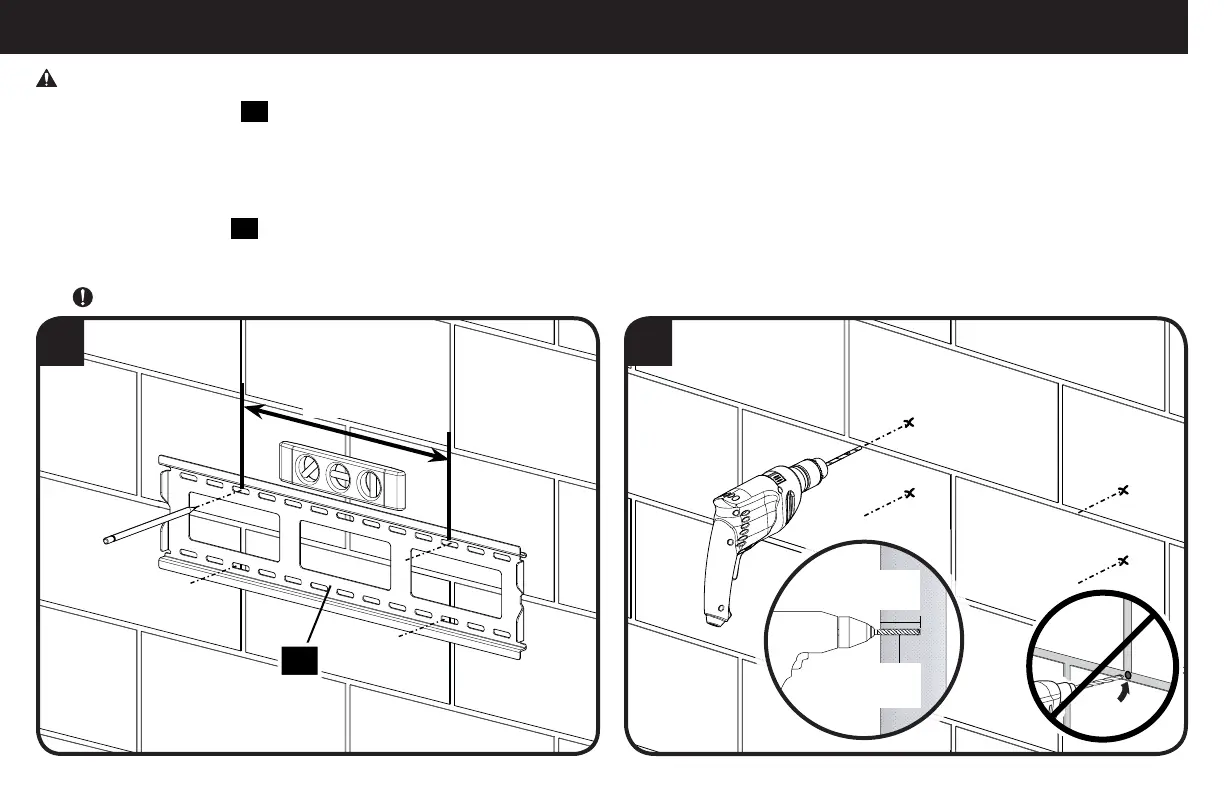

1. Level the wall plate
14
and mark the hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Never drill into the mortar between blocks.
3/8 in.
(10 mm)
3 in.
(75 mm)
16 in.
(406 mm)
To Next Page
