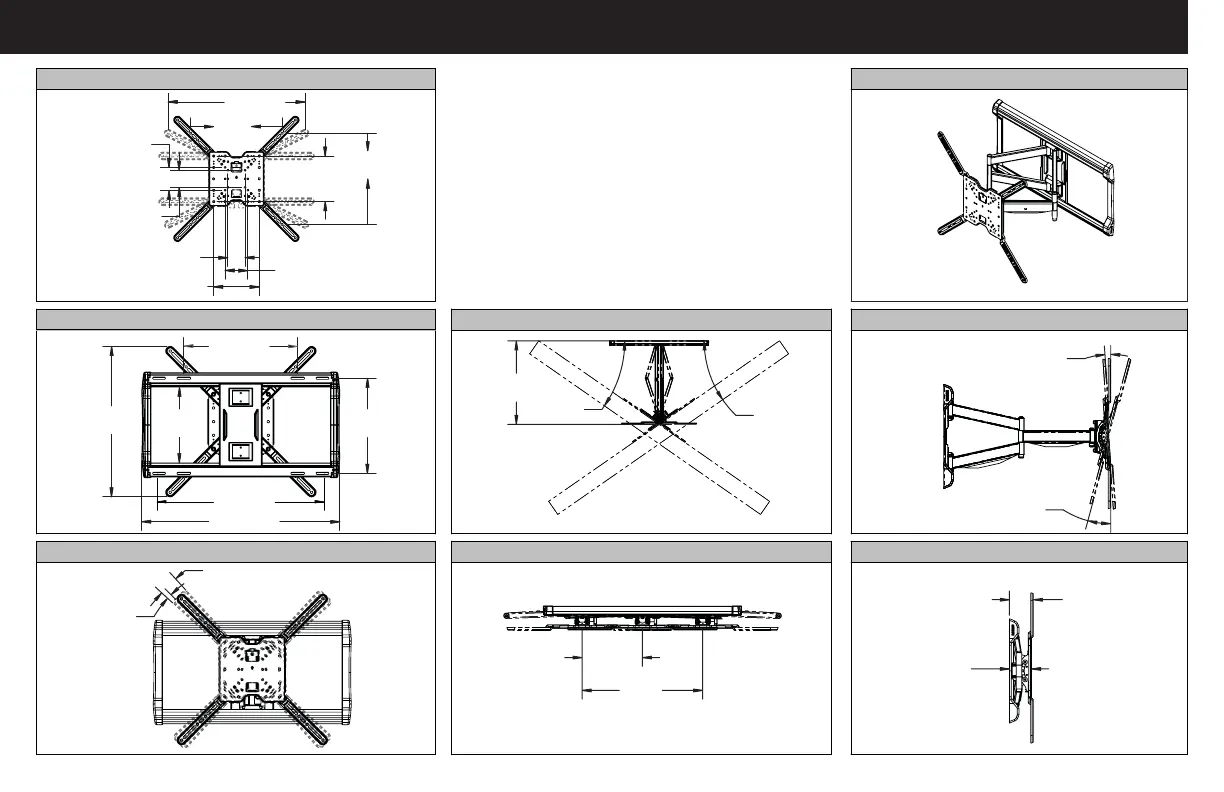

Sanus SLF9 - Product Dimensions and Views; Dimensional Diagrams

4
MIN SWIVEL WITH 90" TV
OFFSET RANGE
FULLY ASSEMBLED MOUNT LEVELING
TOP VIEW - EXTENDED
TOP VIEW - COLLAPSED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D VIEW
TV INTERFACE
WALL PLATE
15.75 in
[400mm]
15.75 in
[400mm]
3.9 in
[100mm]
3.9 in
[100mm]
3.0 in
[750 mm]
2.95 in
[750 mm]
7.87 in
[200 mm]
7.87 in
[200 mm]
23.62 in
[600mm]
8.7 in
[220 mm]
17.3 in
[440 mm]
3.19 in
[80.9 mm]
3.46 in
[87.8 mm]
24.05 in
[611 mm]
5˚
35˚
35˚
4˚
UP
15˚
DOWN
2.5˚
16 in
[406 mm]
24 in
[610 mm]
28.51 in
[724.1 mm]
21.65 in
[549.9 mm]
10.9 in
[277 mm]
13.7 in
[347 mm]
Dimensions
