Sanus SLF9 - Assemble TV Bracket Configurations

7
1.2 Assemble Your TV Bracket
Based on your TV hole pattern measurements
from STEP 1.1 (W mm x H mm), determine your
TV bracket configuration: A, B, C, D, E or F.
A
7.87
[200]
15.75
[400]
15.75
[400]
11.81
[300]
11.81
[300]
15.75
[400]
11.81
[300]
2.95
[75]
in.
[mm]
in.
[mm]
in.
[mm]
300 x 300 mm
400 x 400 mm
400 x 300 mm
B C
These smaller hole patterns only use TV
bracket
01
. Do not use the four TV bracket
extenders
02
and eight screws
03
.
75 x 75 mm
100 x 100 mm
200 X 200 mm
02
03
2.95
[75]
3.94
[100]
7.87
[200]
3.94
[100]
03

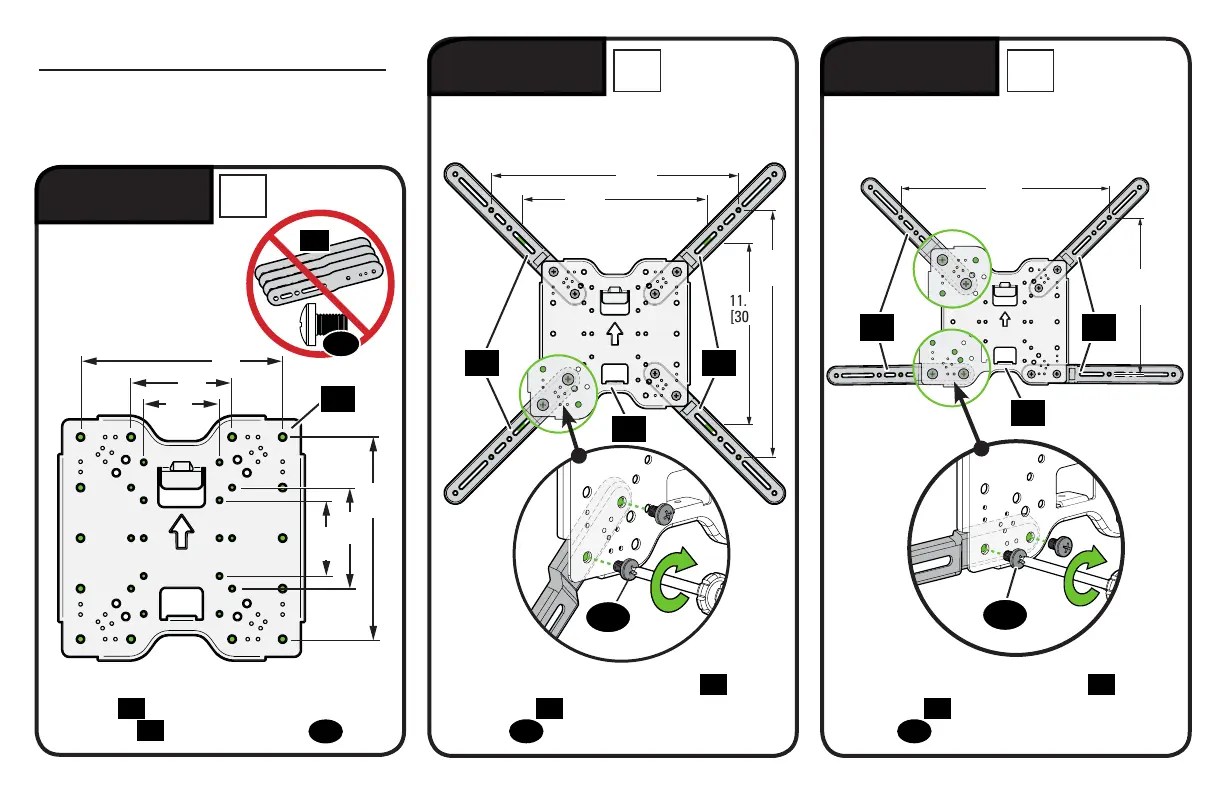

Assemble TV bracket extenders
02
onto
TV bracket
01
and secure using eight
screws
03
in the corner holes indicated.
Assemble TV bracket extenders
02
onto
TV bracket
01
and secure using eight
screws
03
in the corner holes indicated.
0202
01
0202
01
01
03
