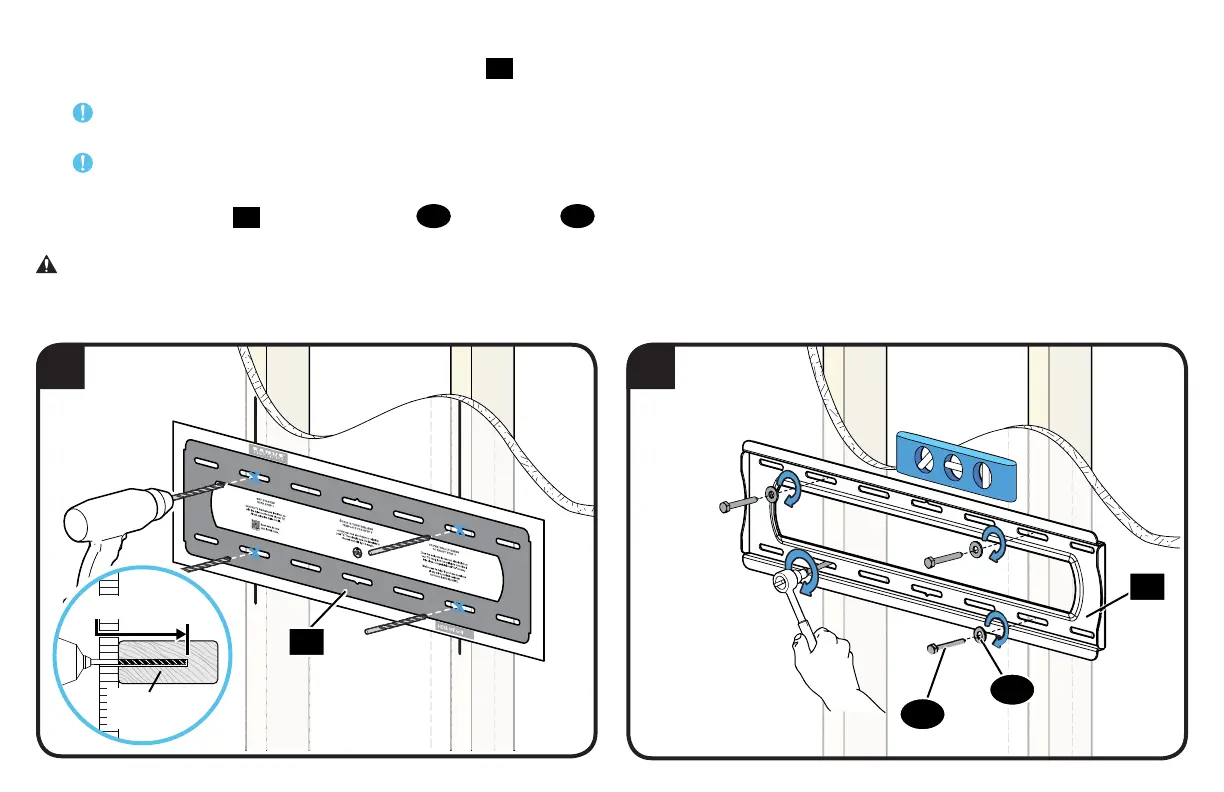

3. Drill pilot holes then remove the wall plate template
18
.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm), using a 7/32 in. (5.5 mm) diameter drill bit.
4. Install the wall plate
19
using four lag bolts
20
and washers
21
. Tighten all lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 19.
3 in. (75 mm)
7/32 in.
(5.5 mm)
18
19
20
21
