Sanus SLT3 - Step 2 A: Attaching Wall Plate (Wood Studs); Locating Studs and Marking Template; Wood Stud Installation Safety Notes

10
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 16 mm (5/8 in.)
● Minimum wood stud size: nominal 51 x 102 mm (2 x 4 in.) actual 38 x 89 mm (1 ½ x 3 ½ in.)
● Minimum horizontal space between fasteners: 406 mm (16 in.)

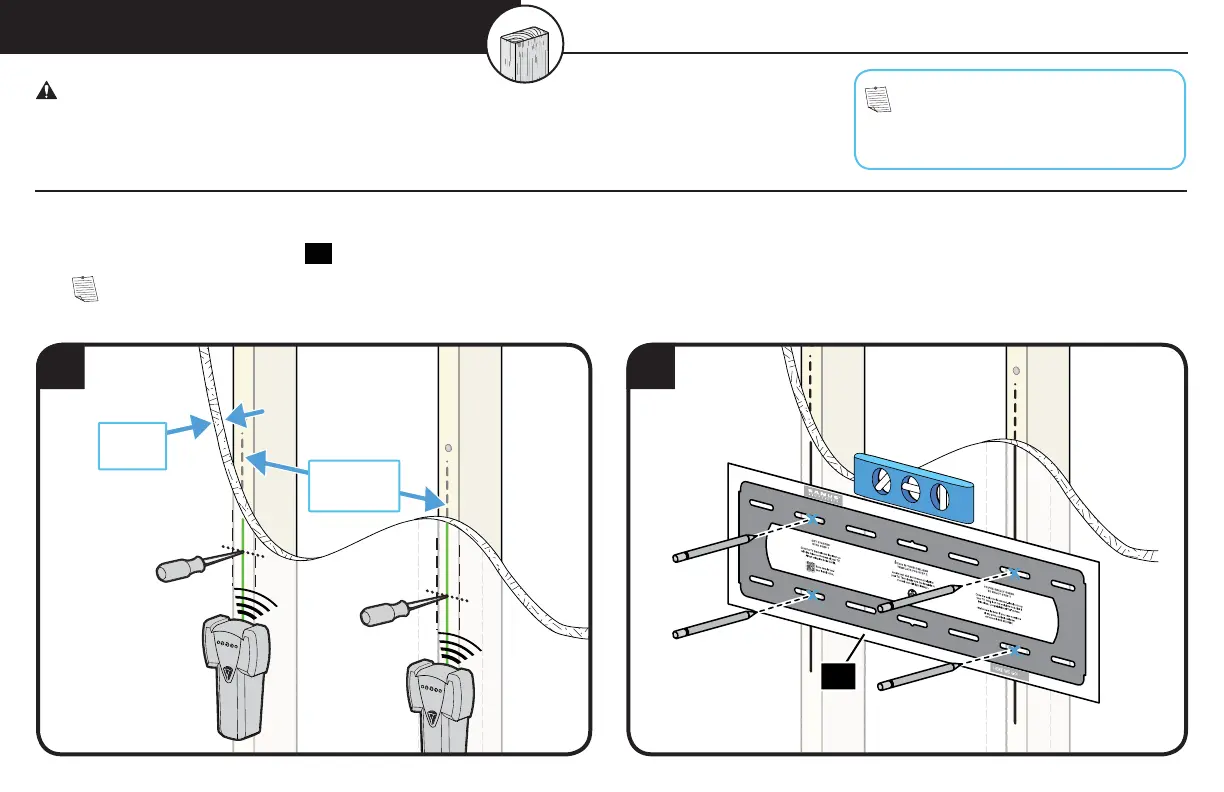

1. Locate studs. Verify the center of the stud(s) using an awl, a thin nail, or an edge to edge stud finder.
2. Level the wall plate template
18
and mark the hole locations in the center of the studs.
NOTE: TV with brackets can be shifted to the left or right from center. Consider this when selecting the location of your wall mount.
1
2
≤16 mm
(5/8 in.)
406-610 mm
(16-24 in.)
18
STEP 2A Attach Wall Plate
Wood Stud Installation
NOTE: For assistance in
determining wall plate location, try our
HeightFinder
™
at SANUS.com/2665
