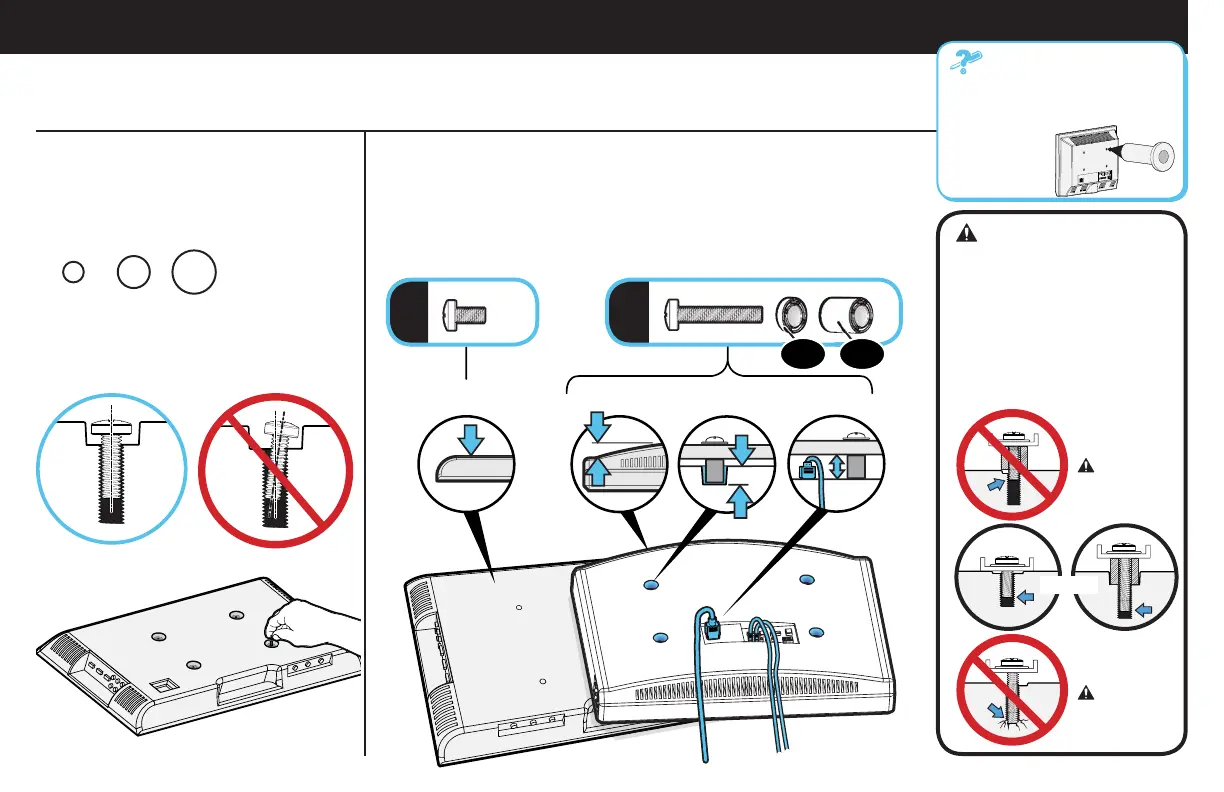

STEP 1 Attach Brackets to TV
FLAT BACK ROUND BACK CABLESINSET HOLES
a
b
16 17
M6 M8M4
1.1 Select TV
Screw Diameter
1.2 Select TV
Screw Length
Hand thread screws into the threaded
inserts on the back of your TV to
determine which screw diameter
(M4, M6, or M8) to use.
a: If your TV has a flat
back AND you want your
TV closer to the wall,
use the shorter screws.
(spacers not necessary).
b: Spacers and longer screws are
supplied to accommodate:
● Round (irregular) back TVs
● TVs with inset mounting holes
● Extra space needed for cables
Too Short
Too Long
CAUTION:
Verify adequate thread
engagement with the screw/
washer/spacer combination
AND TV Bracket (STEP 1.3).
- Too short will not hold the TV.
- Too long will damage the TV.
Correct
If your TV included
inset spacers or wall mount
adapters, see Troubleshooting
on PAGE 23.
8
