Sanus VSF415 - Page 24

24

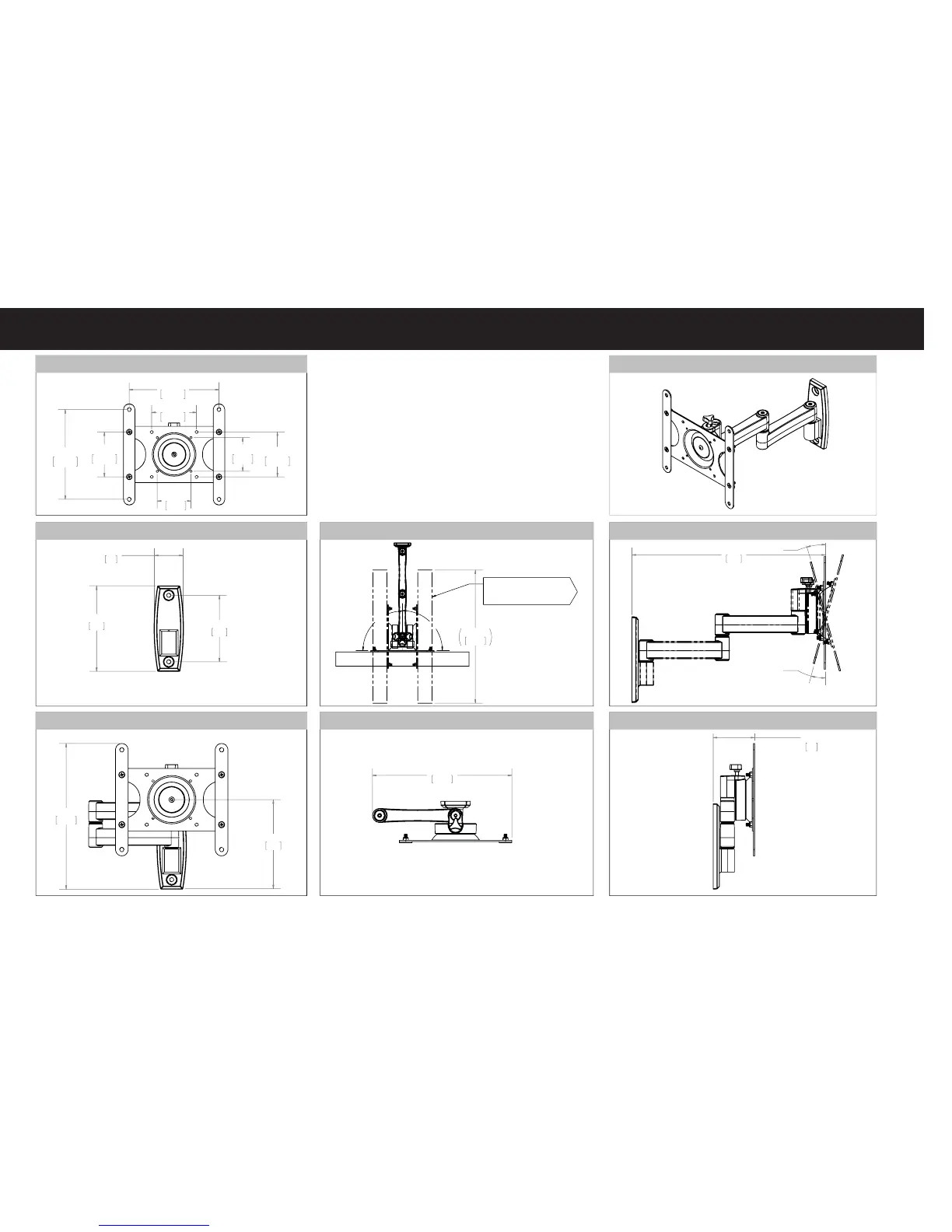

Dimensions - VSF415 in. [mm]
15.3
388
15.00°
15.00°
18.70
475.0
ESTIMATED 20" TV
100X100 VESA CENTERED
90°
90°
5.3
133
6.8
171
2.3
57
7.87
200.0
3.94
100.0
7.87
200.0
3.94
100.0
2.95
75.0
2.95
75.0
3.94
100.0
7.0
179
11.51
292.3
11.00
279.3
3.3
83
TV INTERFACE
WALL PLATE
FULLY ASSEMBLED MOUNT
TOP VIEW - EXTENDED
TOP VIEW - RETRACTED
SIDE VIEW - EXTENDED
SIDE VIEW - RETRACTED
3-D
