6

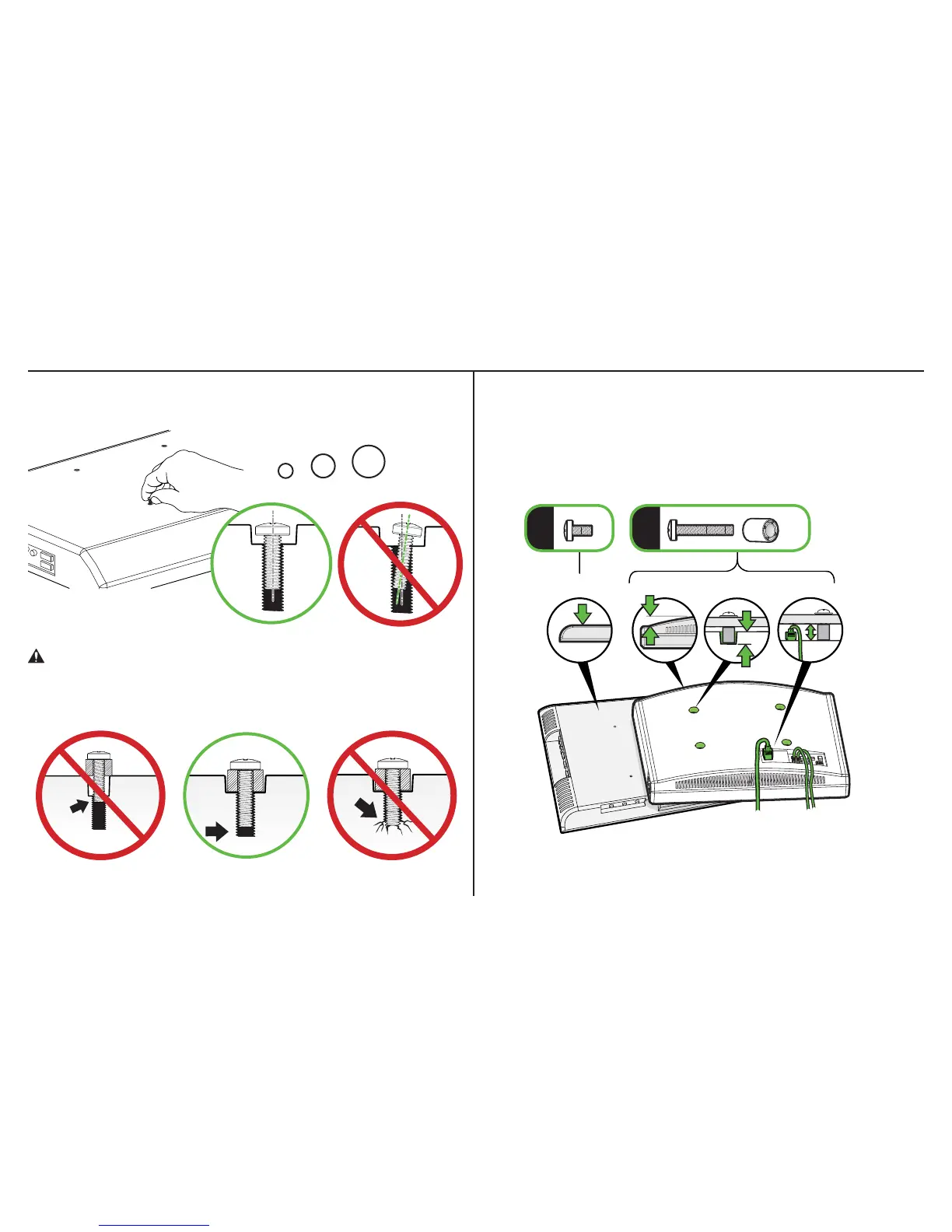

1.1 Select TV Screws
1.2 Spacers
Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4
M6
M8
Too Short Correct Too Long
Standard confi gurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service at
1-800-359-5520
.
FLAT BACK ROUND BACK CABLESINSET HOLES
a: If your TV has a fl at back AND you want your TV closer to the wall,
use the shorter screws.
b: Spacers and longer screws are supplied to accommodate:
● Round (irregular) back TVs
● TVs with inset mounting holes
● Extra space needed for cables
a
b
