17

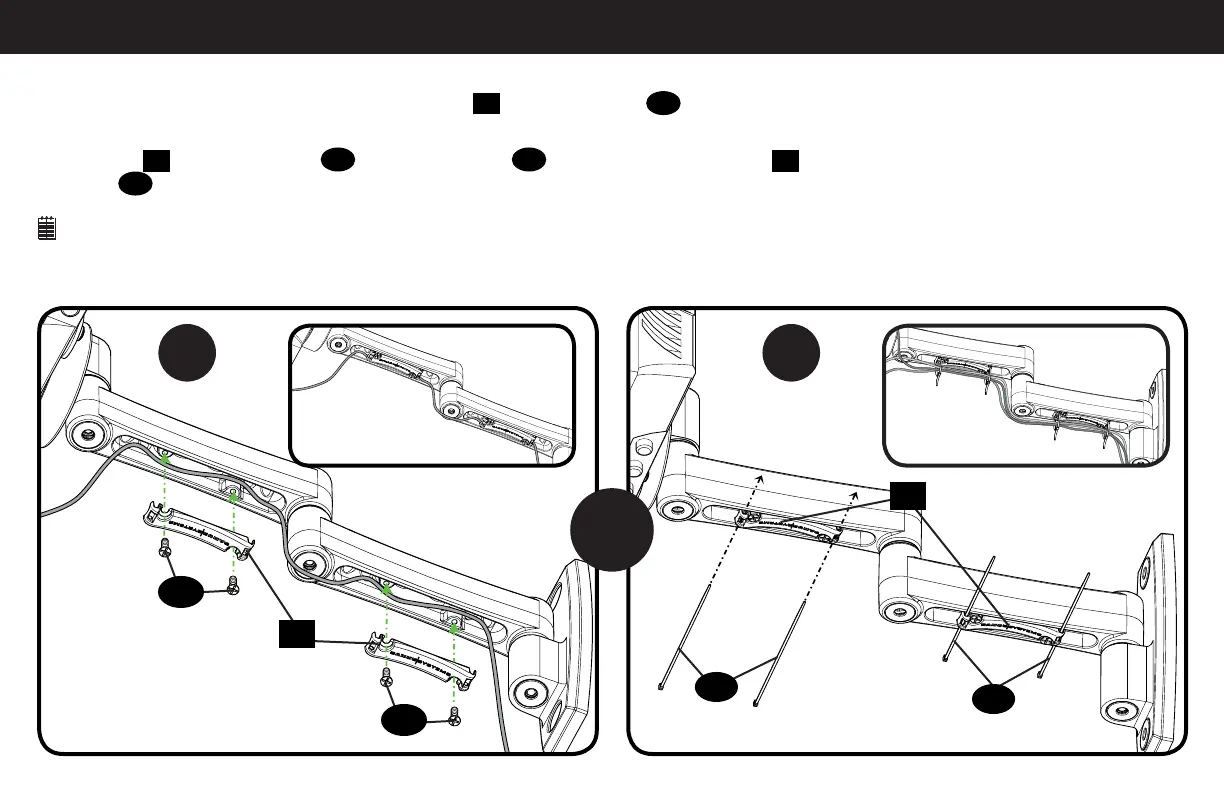

Manage Cables
A
Option A:
Thread cable through channels the secure with plates
28
and plate screws
29
.
Option B:
Install plates
28
with plate screws
29
. Thread cable ties
30
through end holes in plates
28
. Arrange cables then secure them with the
cable ties
30
.
NOTE: Pull the arm to its full extension before routing the cables through the channels, then loosely route the cables. This will give the cables
enough slack to prevent excess tension when adjusting the position of the arm.
B
OR
30
30
29
29
28
28
To Next Page
