Sanus VXT7-B2 - Determine Your TV Bracket Configuration

8

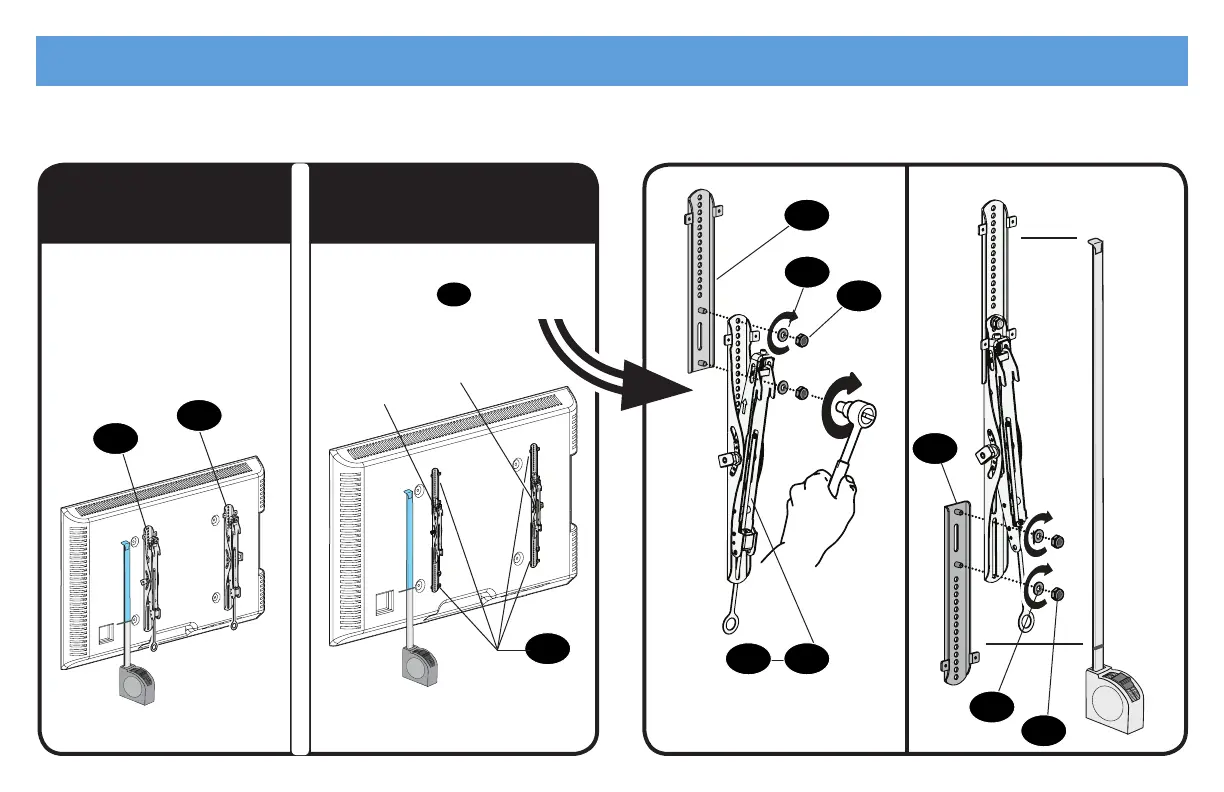

1.3 Determine Your TV Bracket Configuration
For Height
400mm or less
Skip to STEP 1.4
on PAGE 9
≤ 400mm (15 ¾ in.)
> 400mm (15 ¾ in.)
For height
greater than 400mm
07
04
05
06
06
06
08
TV VESA Height
08
07
Assemble TV bracket
extensions
06
to fit over
your TV VESA height.
Measure the HEIGHT of your TV mounting hole pattern.
04 05
