• Let the machine preheat prior to any operation.
• Avoid engaging gear or operating the pedal.
• Avoid sudden starts or fast movements or stops.
• Always let the system cool down at the end of the working day.
1.7 Visibility from operator's seat
The visibility standards (ISO 5006) for this machine require a view shown in the diagram below.
Visibility in immediate area:
The visibility of this machine in the area 1 m from the outside surface of the machine at a height of
1.5 m is shown in the diagram below. The hatched area (A) shows the area where the view is
blocked by part of the machine when mirrors or other aids to visibility are installed as standard.
Please be fully aware that there are places that cannot be seen when operating the machine.

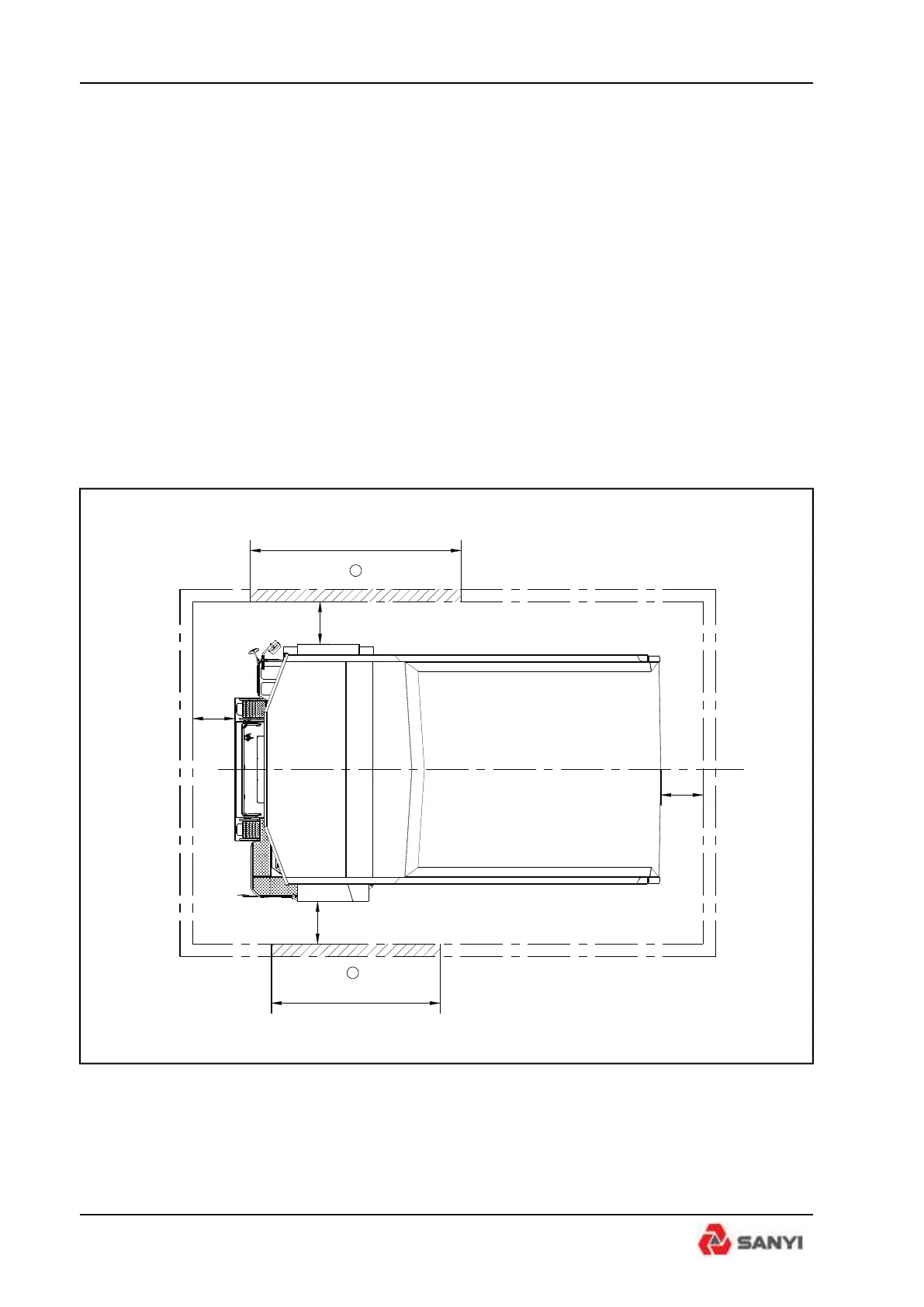

Fig.1-3
12-M radius visibility
The visibility at a radius of 12 m from the machine is as shown in the diagram below. The hatched
areas (B) show the areas where the view is blocked when mirrors or other aids to visibility are
5000
A
4000
1000
1000
1000
1000
A
